Mountain

Pistil Soft-tail Mountain Titanium

Custom Geometry Frame Starting from $5,850

70mm of Rear Travel to Take the Edge Off! Rides like a hardtail but with the comfort of a full-suspension.

    • Tubing: Hand Picked Size Specific 3/2.5 CWSR Titanium

    • Head Badge: Sanitas Custom designed & Hand-Fabricated by Revolution Jewelry

    • Bottle Mounts: Seat Tube Locations – Upper & Lower

    • Finish: Ceramic Bead Blast with Brushed Logo (Anodization at upcharge & quoted separately).

    • Production: Proudly handcrafted in the USA — not mass-produced. Every Sanitas frame is individually made in Durango, Colorado.

    • Custom Sizing: No Additional Charge

    • Lead time From Time of Order: 12- 14 weeks

    • Frame Weight: 4.5 to 5lbs. Depending on Sizing.

    • Recommended Use: Mountain Single Track

    • Custom or Stock Geometry

    • Tire Width: 29 x 2.6”

    • Headtube: 44mm Straight Taper

    • Bottom Bracket: T47 English Thread

    • Rear Hub Spacing: 148 x 12mm Boost

    • Cable Routing: External or Internal (Front Triangle)

    • Optimized for 1x Drivetrain Only

    • Brake: Post Mount Disc

    • Seatpost Diameter: 31.6 mm (internal dropper routing)

    • Seat Collar: Sanitas Titanium or Wolf Tooth Alloy

    • Manufacturer Warranty: Lifetime

  • FOX, Rock Shox, MRP or Cane Creek

    Groupsets: SRAM, Shimano or TRP Components:

    • Headset: Chris King, Wolf Tooth,  White Industries or Cane Creek

    • Cockpits: Ritchey, ENVE or FSA

    • Wheels: ENVE, Boyd, Zipp or Hunt

    • Tire: Maxxis, WTB, Vittoria or Schwalbe

    • Saddles: Selle Italia, Fizik or WTB

  • Each Pistil is a custom fit fabrication, but stock geometry is available.

    Click to view fit sheet

Explore Pistil Soft-tail

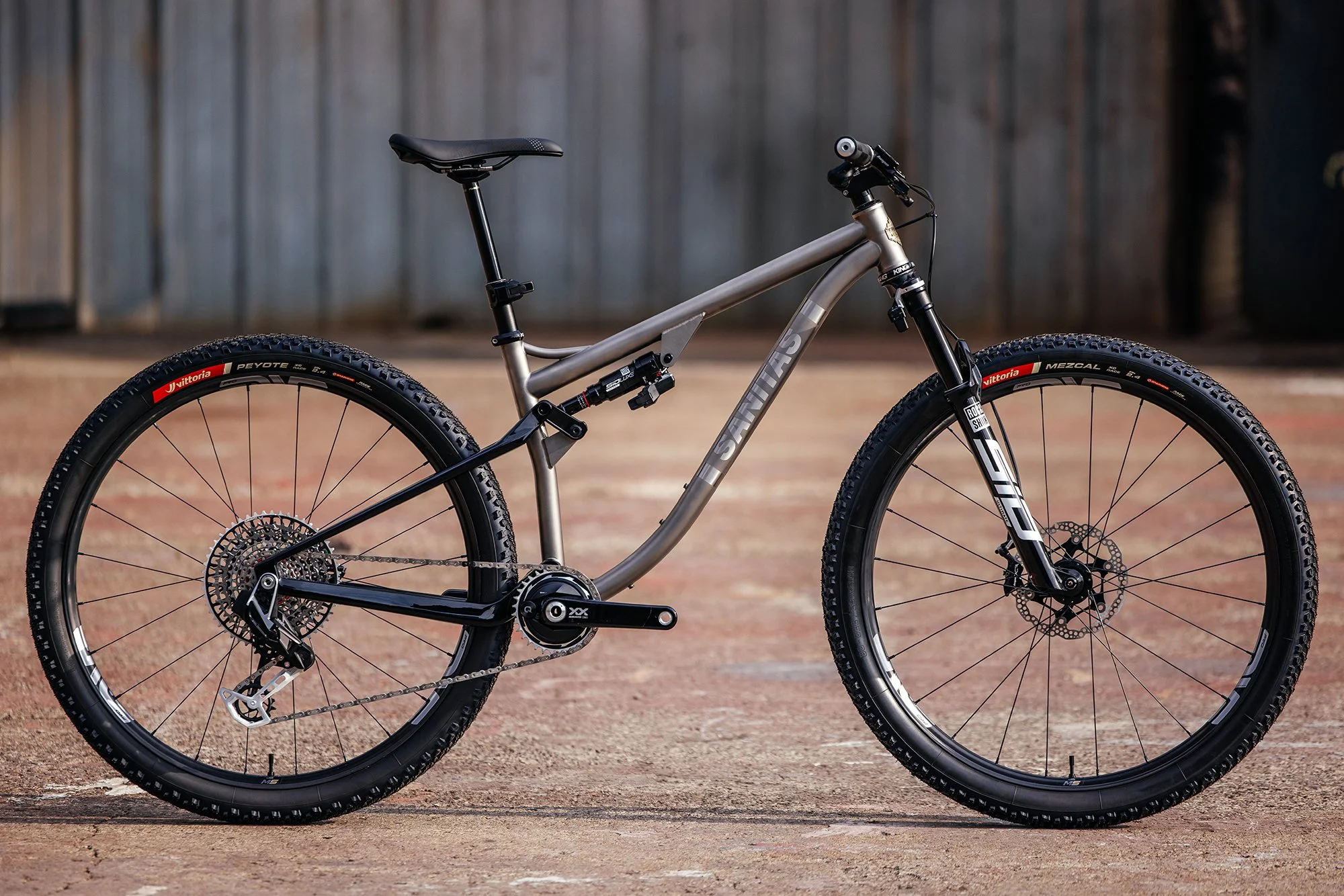

Pistil XC Full Suspension Titanium/Carbon

Custom Geometry Frame Starting from $4,950

120mm of Travel for true XC race weapon!

    • Recommended Use: Mountain Single Track

    • Custom or Stock Geometry.

    • Tire Width: 29 x 2.6”

    • Headtube: 44mm Straight Taper

    • Bottom Bracket: T47 English Thread

    • Rear Hub Spacing: 148 x 12mm Boost

    • Cable Routing: External or Internal

    • Front Derailleur: 34.9mm Clamp-On

    • Brake: Post or Flat Mount Disc

    • Seatpost Diameter: 31.6 mm (internal dropper routing)

    • Seat Collar: Sanitas Titanium or Wolf Tooth Alloy

    • Manufacturer Warranty: Lifetime

    • Tubing: Hand Picked Size Specific 3/2.5 CWSR Titanium

    • Head Badge: Sanitas Custom designed & Hand-Fabricated by Revolution Jewelry

    • Bottle Mounts: Down Tube and Seat Tube Locations (3rd Mount Optional)

    • Finish: Ceramic Bead Blast with Brushed Logo (Anodization at upcharge & quoted separately).

    • Production: Proudly handcrafted in the USA — not mass-produced. Every Sanitas frame is individually made in Durango, Colorado.

    • Custom Sizing: No Additional Charge

    • Lead time From Time of Order: 10 to 12 weeks

    • Frame Weight: 3.0 to 3.5 lbs. depending on Sizing.

    • FOX, Rock Shox, MRP or Cane Creek

    • SRAM or Shimano

    • Headset: White Industries, Chris King, Cane Creek or Wolf Tooth

    • Cockpits: Ritchey, ENVE or FSA

    • Wheels: ENVE, Boyd, Zipp or Hunt

    • Tire: Schwalbe, Maxxis or WTB

    • Saddles: Selle Italia, Fizik or WTB

  • Each Root is a custom fit fabrication, but stock geometry is available and can be viewed by clicking the button below.

    Click to view fit sheet

    Click to view geometry sheet

Explore Root Hardtail

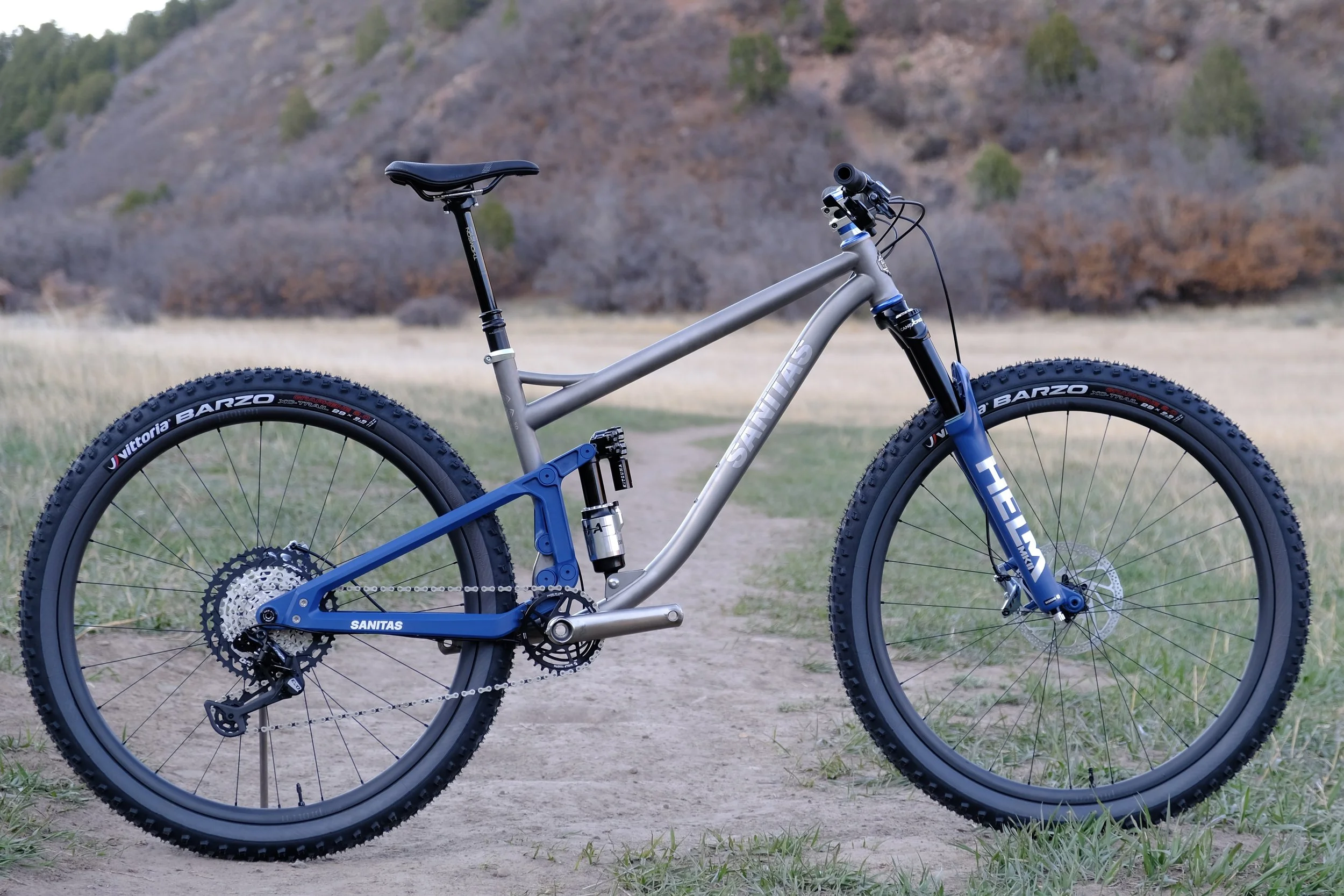

Pistil Trail Full Suspension Titanium/Aluminum

Custom Geometry Frame Starting from $4,950

150mm of Travel for Versatility in a Wide Range of Riding Conditions. From down-country, alpine loops to hours at the bike park.

    • Recommended Use: Mountain Single Track, All Mountain Trails, Bike Park

    • Custom Geometry.

    • Tire Width: 29 x 2.6”

    • Headtube: 44mm Straight Taper

    • Suspension: Optimized around 150mm Travel

    • Bottom Bracket: T47 – 73mm

    • Rear Hub Spacing: 148 x 12mm Boost (UDH Compatible)

    • Cable Routing: External (Rear Triangle) or Internal (Ft Triangle)

    • Front Derailleur: N/A - Optimized for 1x Drivetrains

    • Brake: Post Mount Disc

    • Seatpost Diameter: 31.6 mm (internal dropper routing)

    • Seat Collar: Sanitas Titanium, or Ogle Component Design or Wolf Tooth Alloy

    • Manufacturer Warranty: Lifetime

    • Tubing: Hand selected size specific 3/2.5 butted CWSR titanium

    • Head Badge: Sanitas custom designed and hand fabricated by Revolution Jewelry

    • Bottle Mounts: Downtube only + additional locations available

    • Finish:

      • Front Triangle: Ceramic bead blast with brushed logo

      • Rear Triangle: Raw Aluminum

      • Note: Anodization and/or Paint available at upcharge & quoted separately

    • Production:  Proudly handcrafted in the USA — not mass-produced. Every Sanitas frame is individually made in Durango, Colorado.

    • Custom Sizing: No additional charge

    • Lead time From Time of Order:  12 to 14 weeks

    • Frame Weight: 4 to 5 lbs. depending on sizing (without shock).

    • FOX, Rock Shox, MRP or Cane Creek

    • SRAM, Shimano or TRP

    • Headset: Chris King, Wolf Tooth, White Industries or Cane Creek

    • Cockpit: ENVE, Ritchey or FSA

    • Wheels: ENVE, Boyd, Zipp or Hunt

    • Tires: Maxxis, WTB, Vittoria or Schwalbe

    • Saddle: Selle Italia, FIzik or WTB

  • Each Pistil Trail is a custom-fit fabrication.

    Click to view fit sheet

    Click to view geometry sheet

Explore Pistil Trail

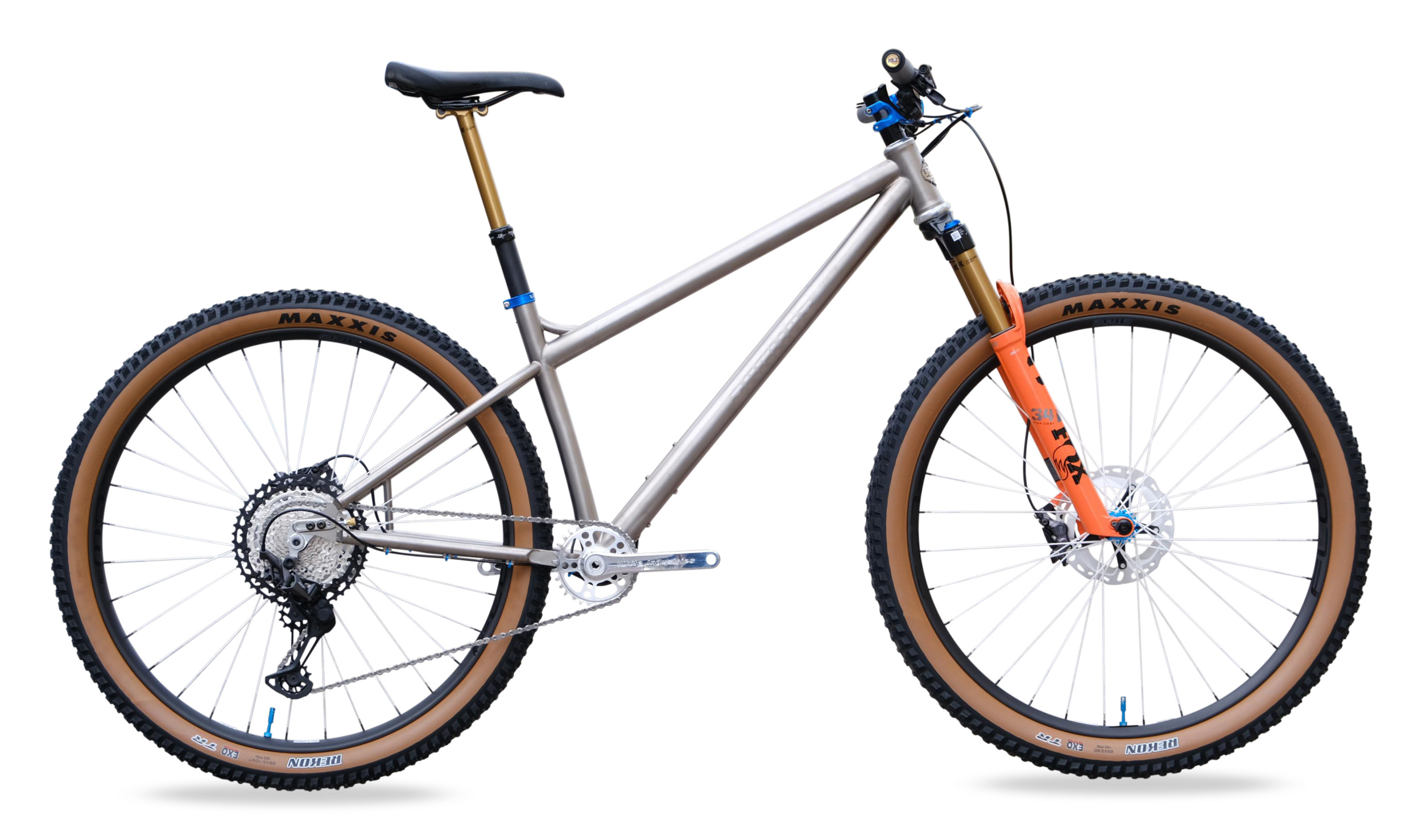

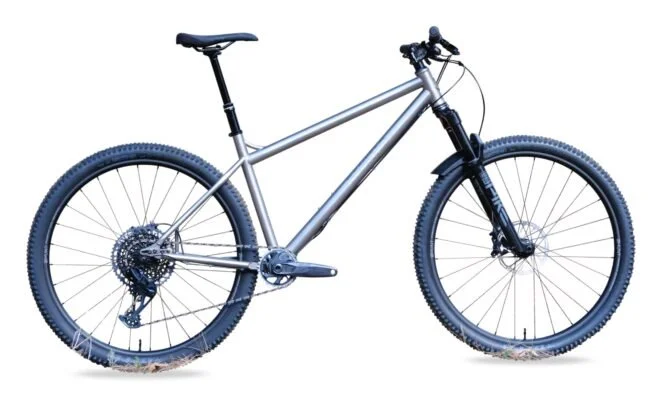

Root Titanium Hardtail

Custom Geometry Frame Starting from $3,650

2.6" tire clearance for a reliably smooth ride on all terrain

    • Recommended Use: Mountain Single Track

    • Custom or Stock Geometry.

    • Tire Width: 29 x 2.4”

    • Headtube: 44mm Straight Taper

    • Suspension: Optimized around 120mm Travel

    • Bottom Bracket: T47 – 73mm

    • Rear Hub Spacing: 148 x 12mm Boost (UDH Compatible)

    • Cable Routing: External or Internal (Ft Triangle)

    • Front Derailleur: N/A - Optimized for 1x Drivetrains

    • Brake: Post Mount Disc

    • Seatpost Diameter: 31.6 mm (internal dropper routing)

    • Seat Collar: Sanitas Titanium or Wolf Tooth Alloy

    • Manufacturer Warranty: Lifetime

    • Tubing: Hand selected size specific 3/2.5 butted CWSR titanium

    • Head Badge: Sanitas custom designed and hand fabricated by Revolution Jewelry

    • Bottle Mounts: Seat tube locations - Upper & Lower

    • Finish:

      • Front Triangle: Ceramic bead blast with brushed logo

      • Rear Triangle: Clear Coated Nude Carbon

      • Note: Anodization and/or Paint available at upcharge & quoted separately

    • Production:  Proudly handcrafted in the USA — not mass-produced. Every Sanitas frame is individually made in Durango, Colorado.

    • Custom Sizing: No additional charge

    • Lead time From Time of Order:  12 to 14 weeks

    • Frame Weight: 3.5 to 4.5 lbs. depending on sizing.

    • FOX, Rock Shox, MRP or Cane Creek

    • SRAM, Shimano or TRP

    • Headset: Chris King, Wolf Tooth, White Industries or Cane Creek

    • Cockpit: ENVE, Ritchey or FSA

    • Wheels: ENVE, Boyd, Zipp or Hunt

    • Tires: Maxxis, WTB, Vittoria or Schwalbe

    • Saddle: Selle Italia, FIzik or WTB

  • Each Pistil is a custom fit fabrication, but stock geometry is available.

    Click to view fit sheet

    Click to view geometry sheet

Explore Pistil XC
