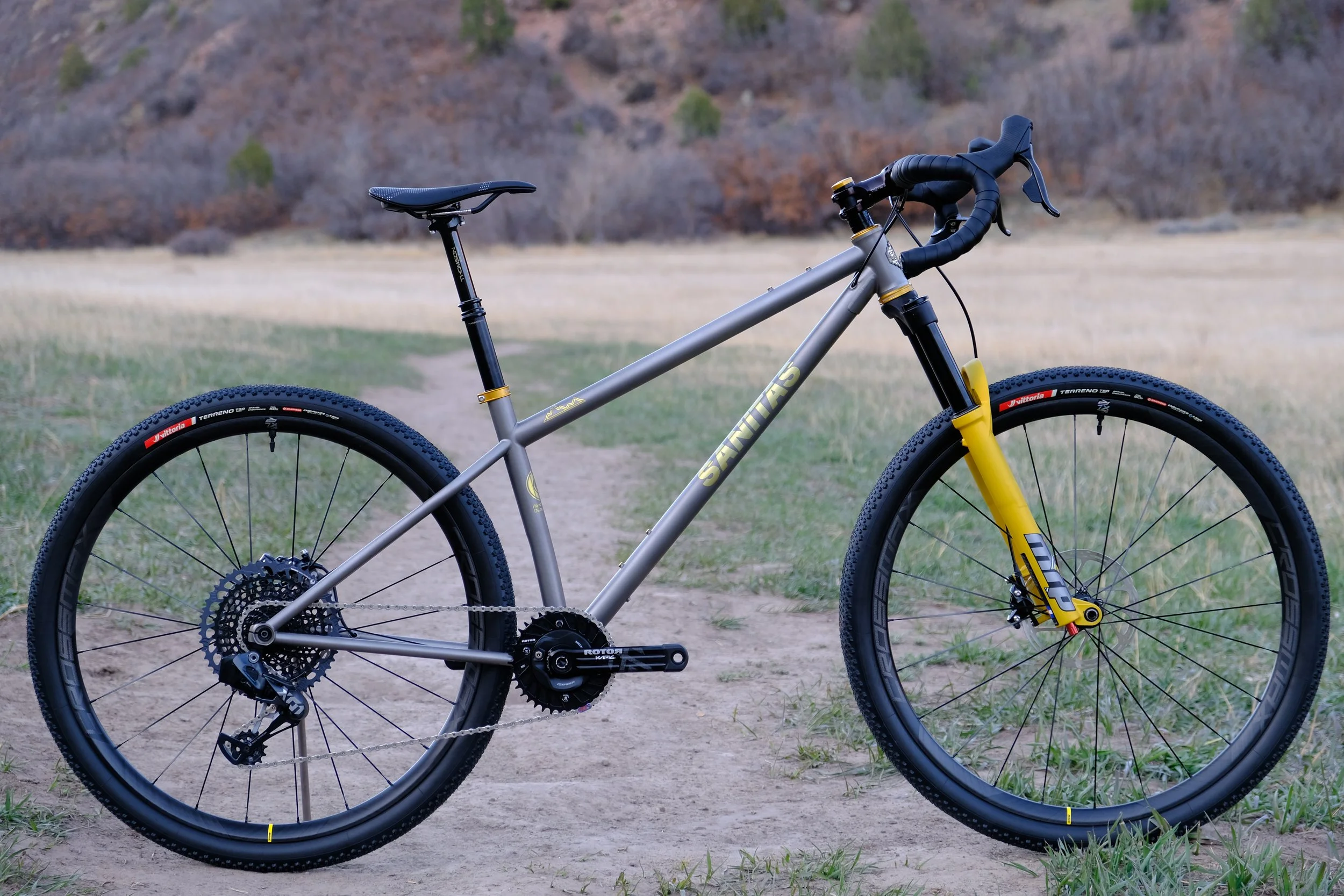

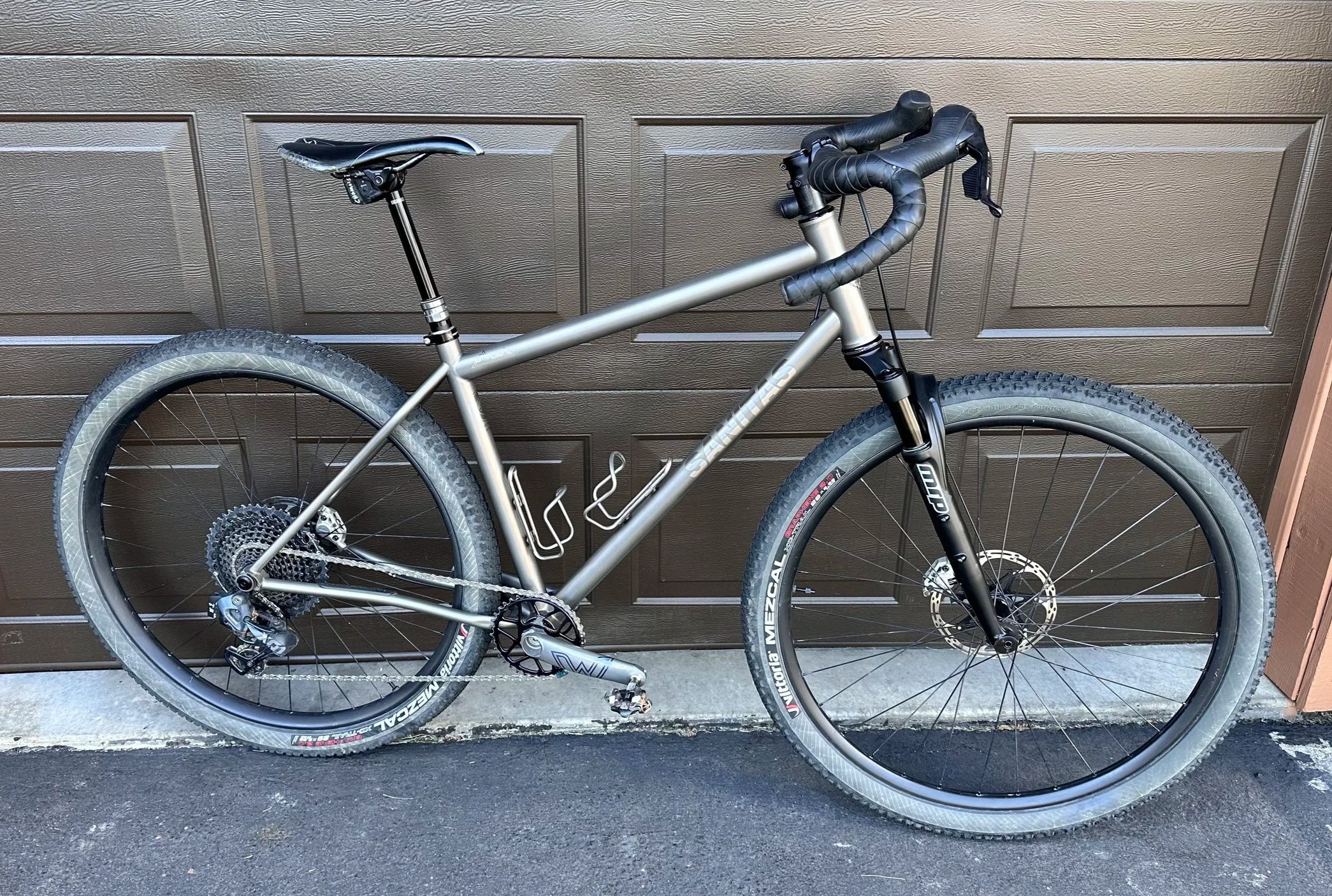

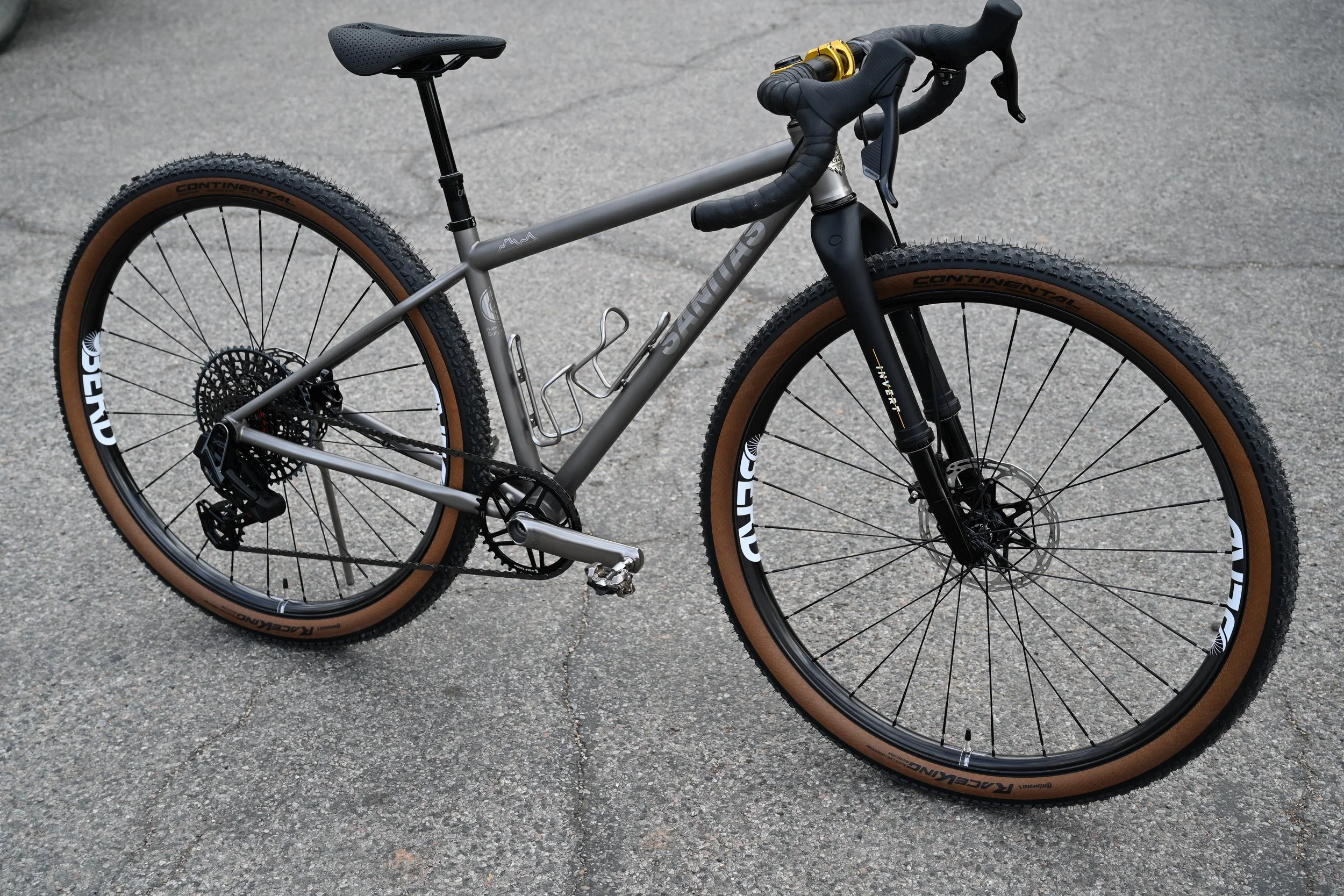

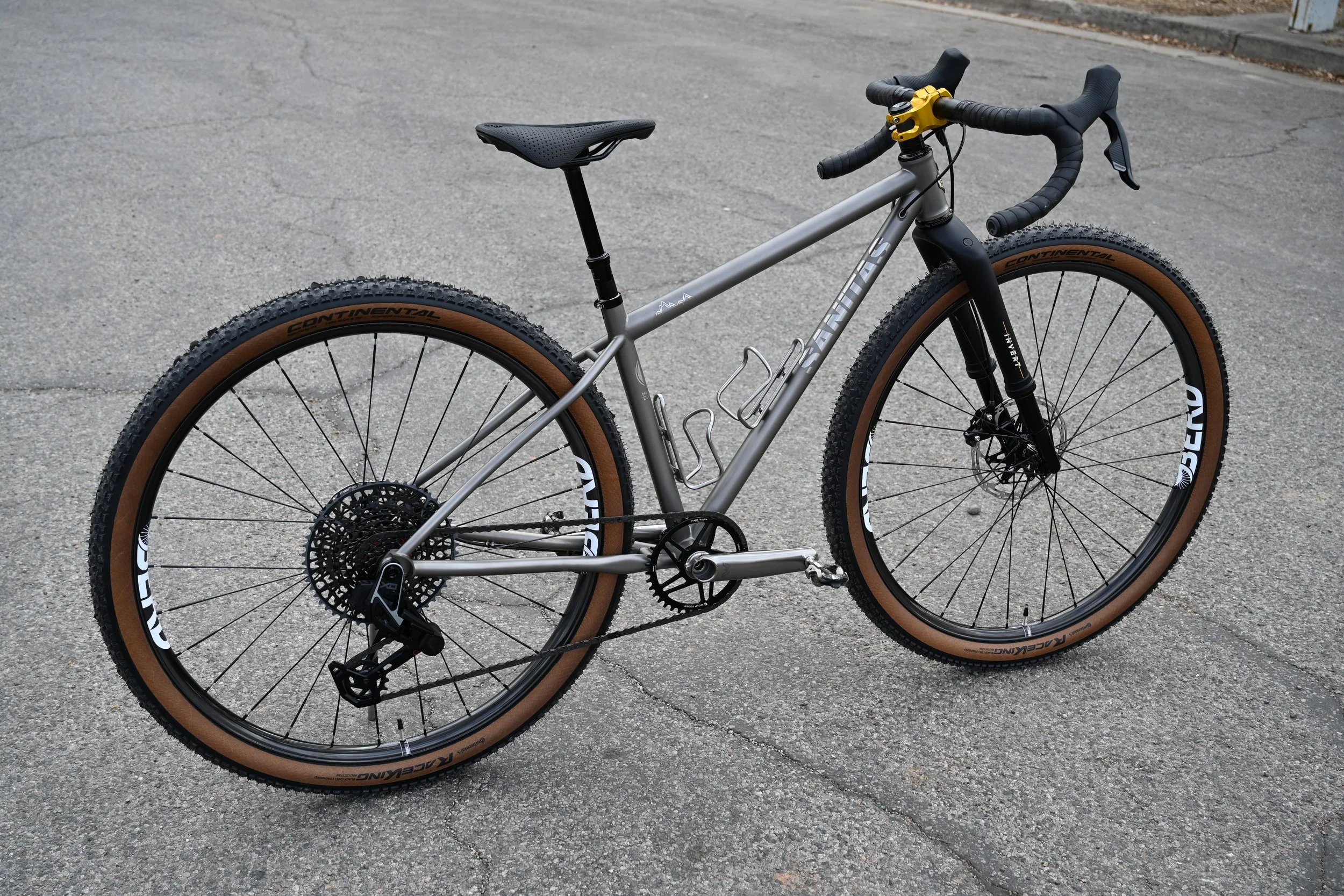

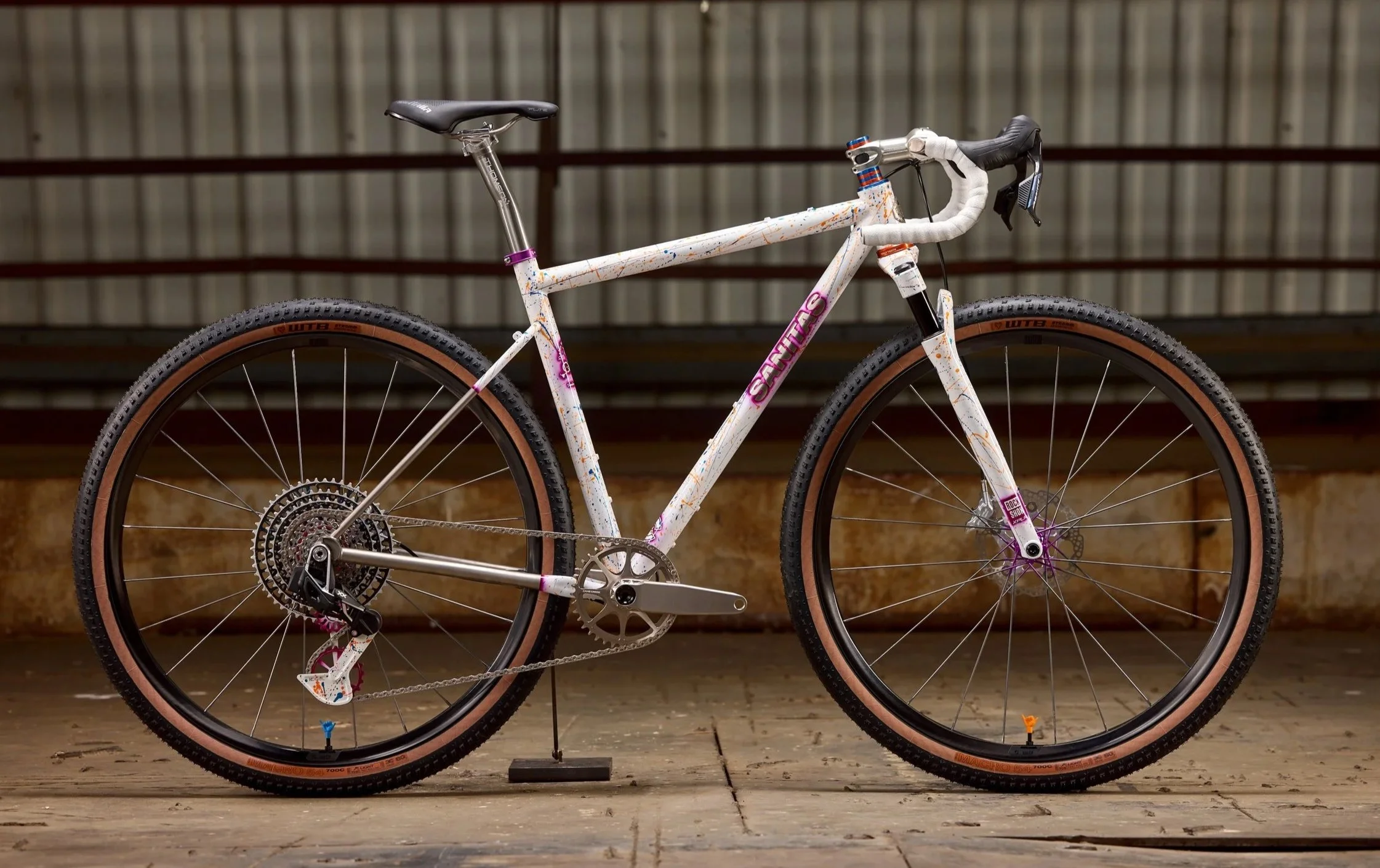

Node cambium Gravel plus Titanium

The Sanitas Node Cambium Gravel Plus Titanium is handcrafted using hand selected, size specific, cold worked 3/2.5 titanium tubing. Each frame is designed and built one by one in our Durango, Colorado facility to provide a ride that’s specifically catered for the customers riding style and needs in mind.

Our Node Cambium model bridges the gap between our traditional grave bike and MTB hardtail. As builders we are seeing a split in grave bikes between the need for wide-tire drop-bar MTB and traditional gravel race bikes. The main difference is an suspension corrected geometry and ample tire clearance to provide the versatility in venturing out on a wider range of terrains. Utilizing a a 73mm BB shell and boost rear spacing, the frame will accommodate up to a 29 x 2.3” max tire clearance. Designed to accept 1x drivetrains, UDH rear dropouts as well as suspension corrected geometry allowing the frame to accept your preferred rigid carbon or suspension fork (100-120mm Travel) Optional additional mounting points, rack and fender mounts can be quoted for bike packing adventures.

Choose between a multitude of frame finish options with custom Anodization, Paint or Cerakote quoted upon request.

Node Cambium Gravel Plus Titanium

from $3,450

Gravel Plus: Bridging the gap between traditional Gravel & MTB hardtail

    • Hand selected, size specific straight gauge 3/2.5 CWSR titanium

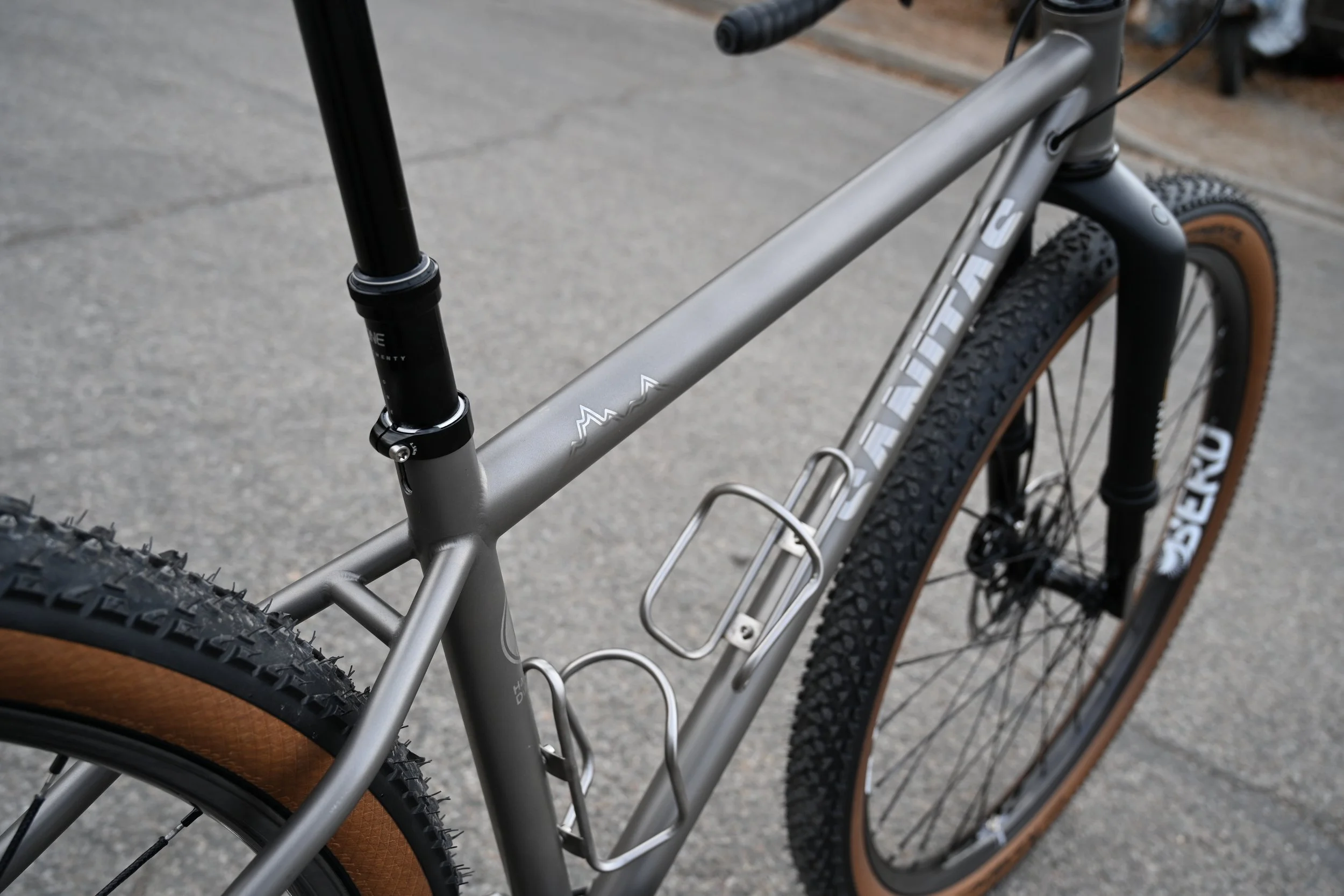

    • Bottle Mounts: Down tube and seat tube locations

    • Finish: Ceramic bead blast with brushed logo (Black or White Vinyl Logos available).

    • Production: Hand made one-by-one in Durango, Colorado

    • Frame Weight: 3.0 to 3.5 lbs. depending on sizing.

    • SRAM

    • Shimano

    • Campagnolo

  • Suspension

    • RockShox

    • FOX

    • MRP

    Rigid

    • ENVE

    • No. 6 Composites

    • Headset: Chris King, White Industries, Cane Creek or Wolf Tooth

    • Cockpits: ENVE, Thomson, Ritchey or FSA

    • Bottom Bracket: Chris King, Cane Creek, White Industries, or Wheels Mfg

    • Wheels: ENVE, Zipp or Boyd

    • Tire: Vittoria, Schwalbe, Maxxis or WTB

    • Saddles: Selle Italia, Fizik or WTB

    • Recommended Use: Gravel, Adventure or Light Bike Packing

    • Custom sizing: No Additional Upcharge

    • Tire Width: 29×2.3”

    • Headtube: 44mm straight taper

    • Bottom Bracket: T47-73mm english thread

    • Rear Hub Spacing: 148 x 12mm

    • Cable Routing: External or Internal front triangle, External rear triangle

    • Front Derailleur: 31.8m or 34.9m clamp-on

    • Brake: Post Mount or Flat mount disc

    • Seatpost Diameter: 31.6 mm

    • Seat Collar: Sanitas titanium or Wolf Tooth Alloy

    • Manufacturer Warranty: Lifetime

  • Each Node is a custom fit fabrication handmade to order to your specific fitment needs.
