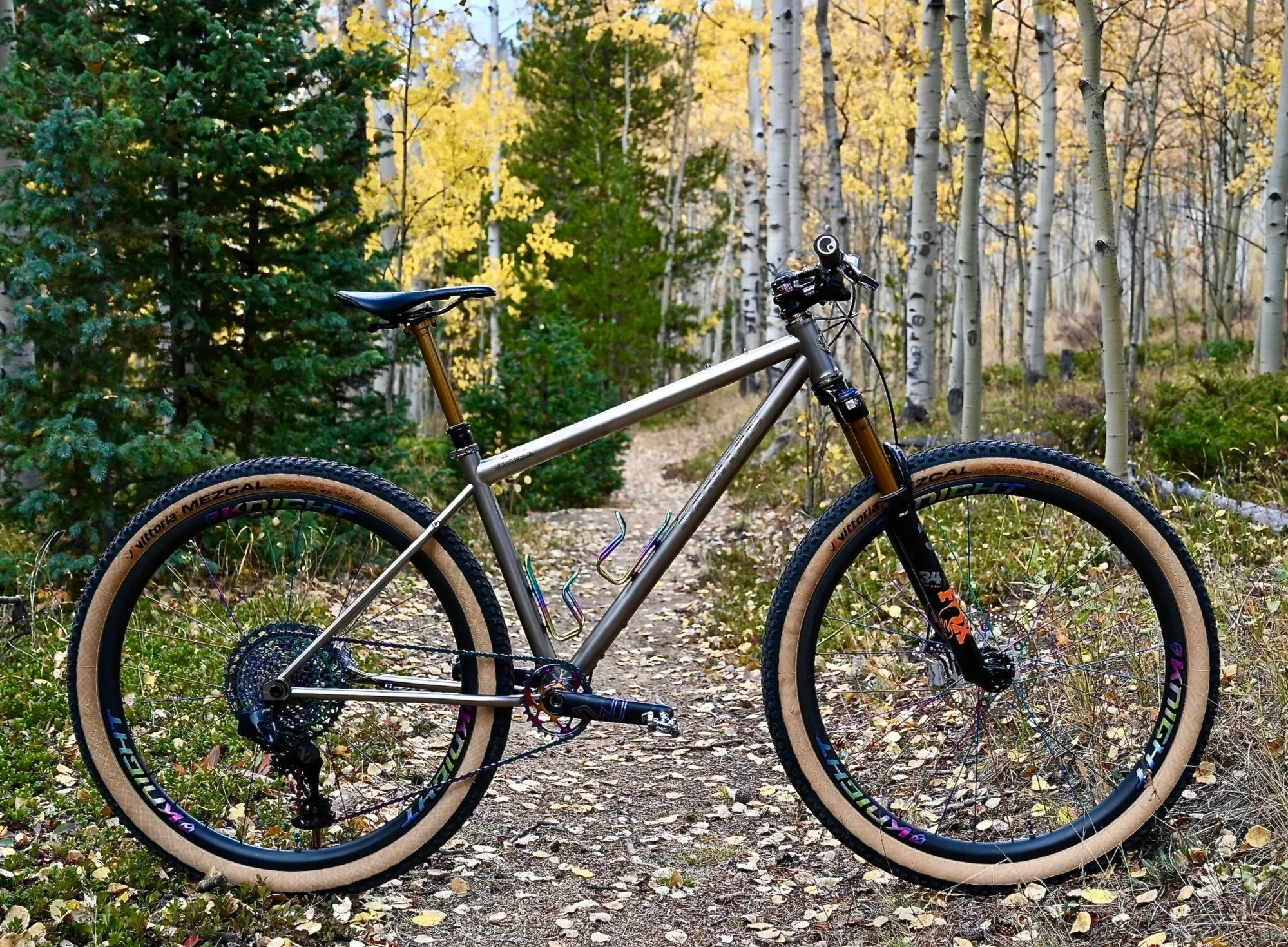

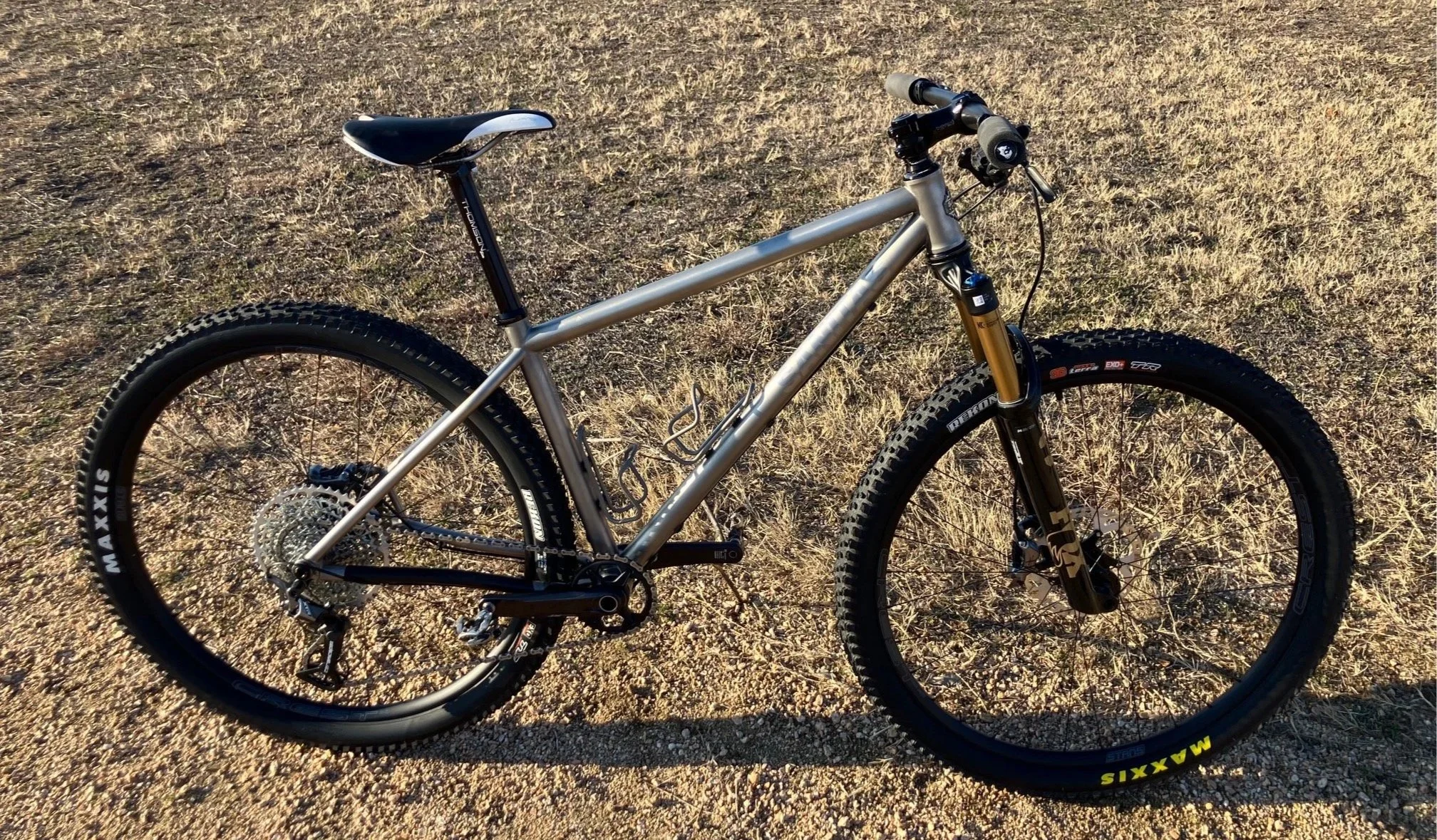

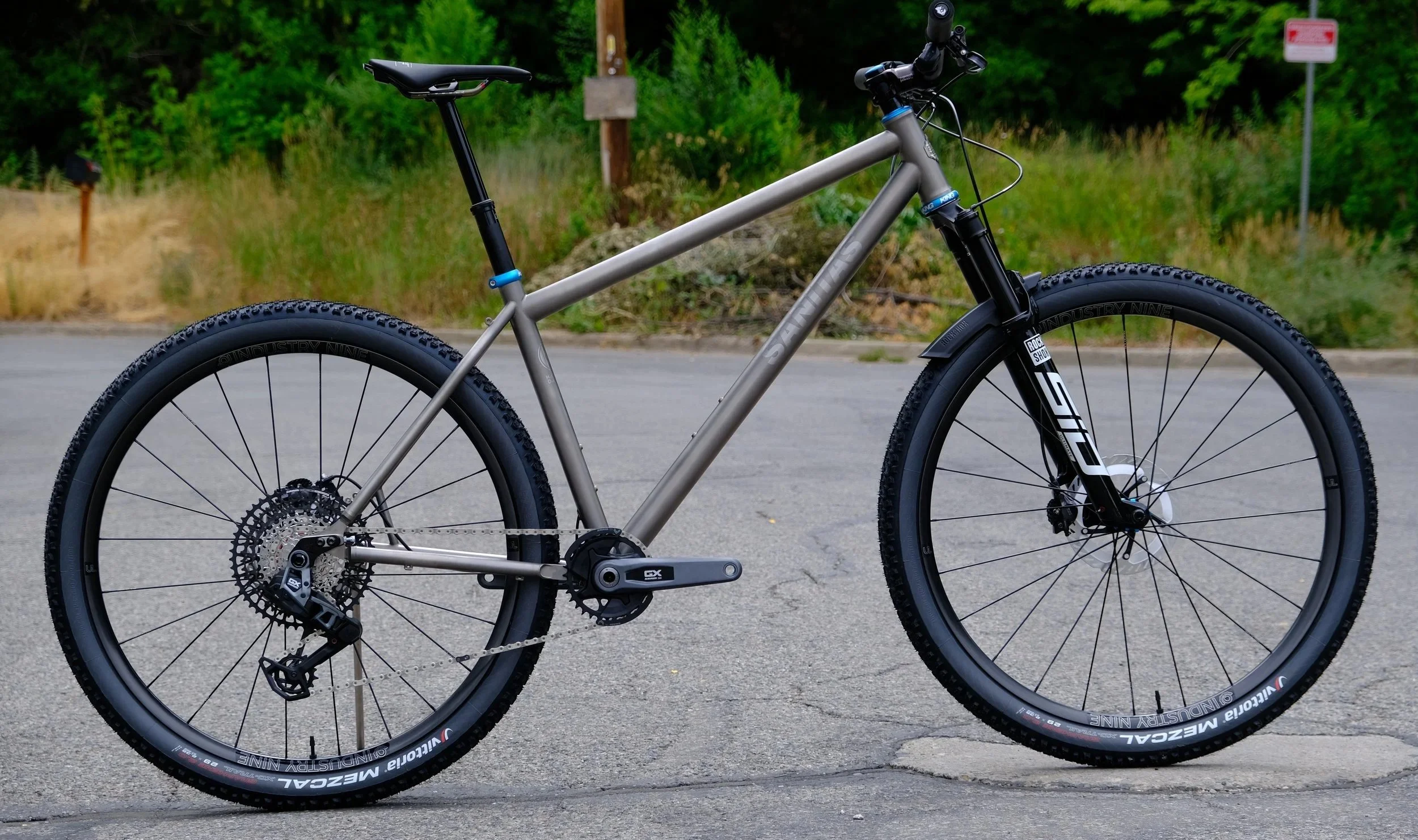

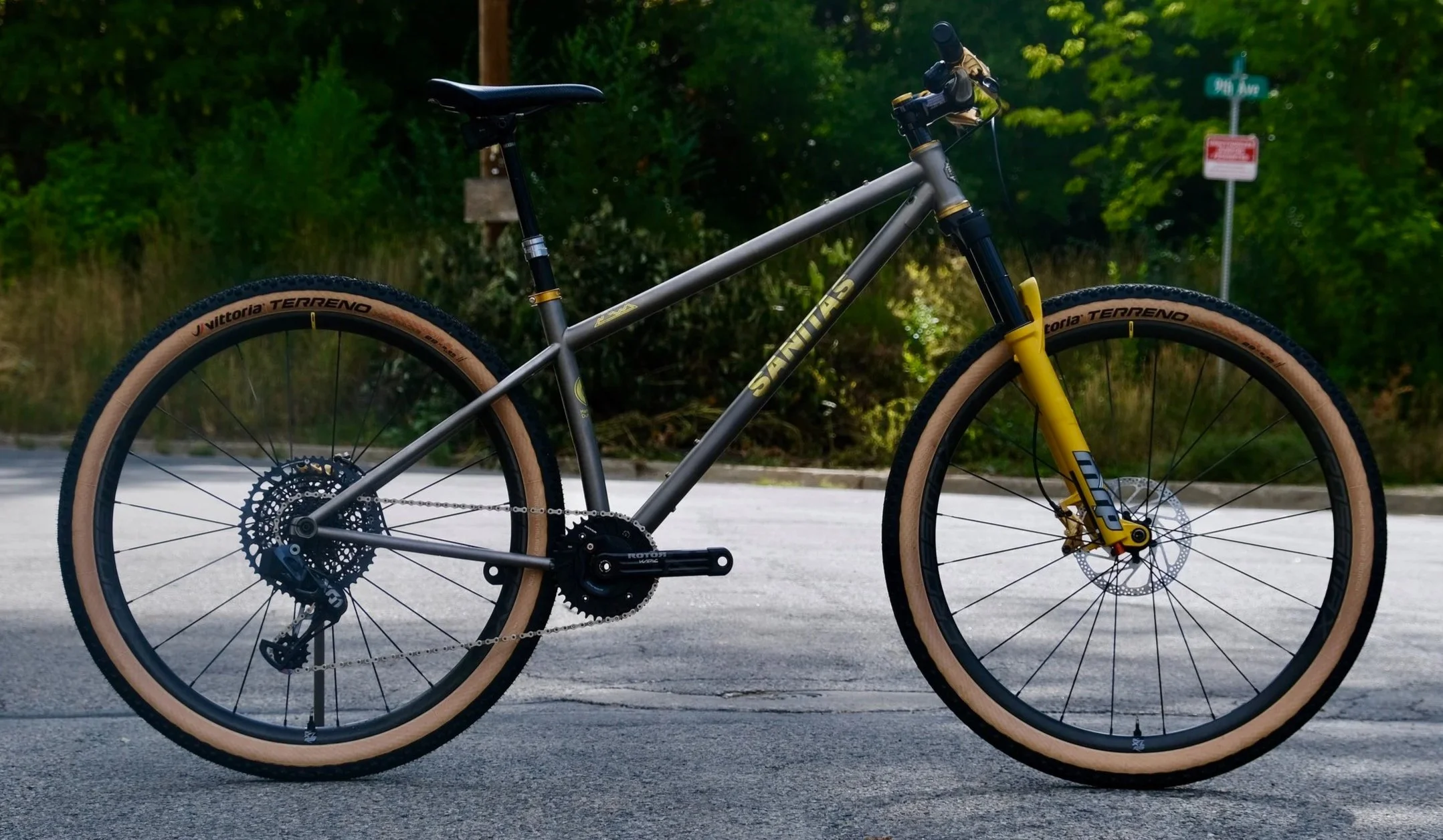

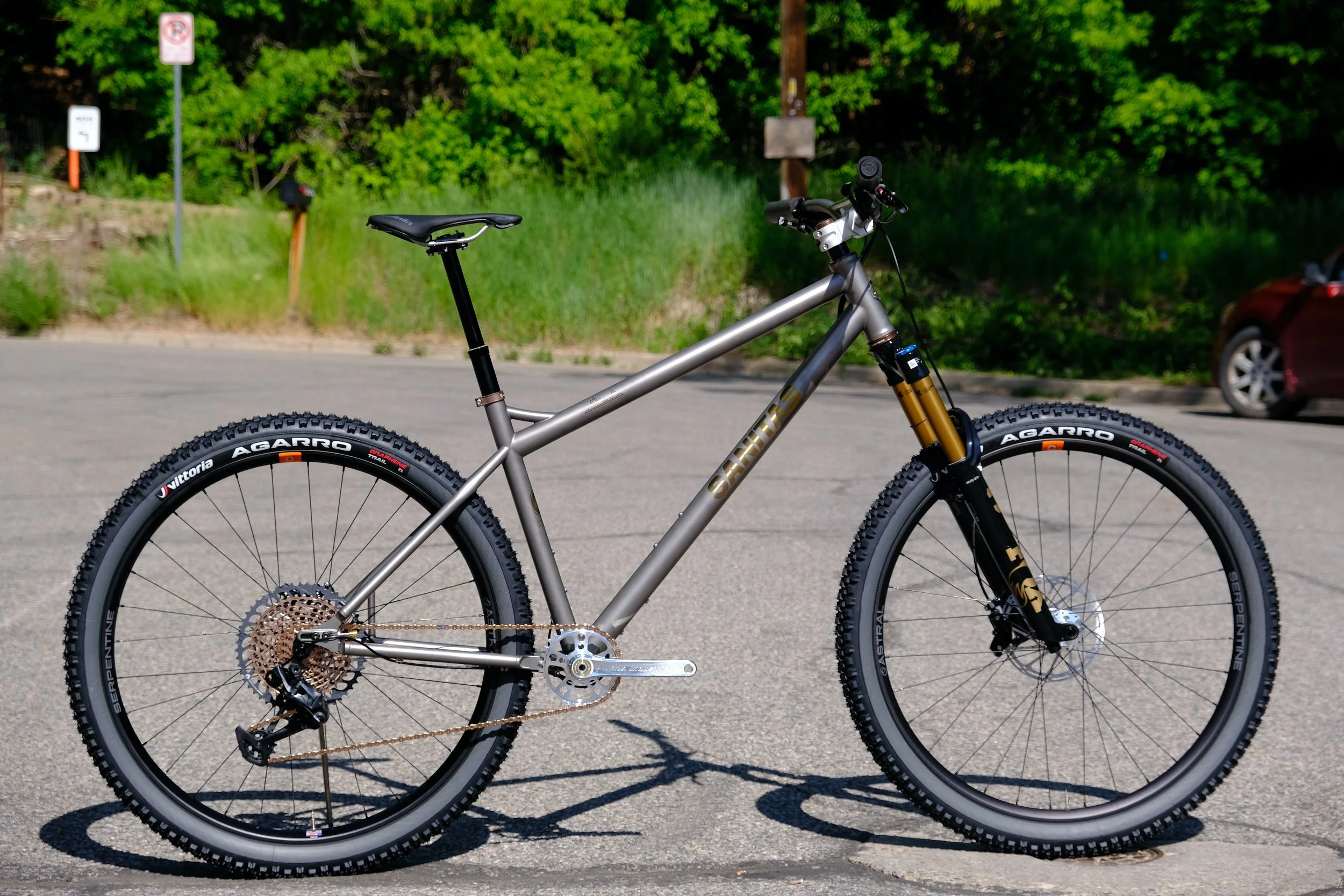

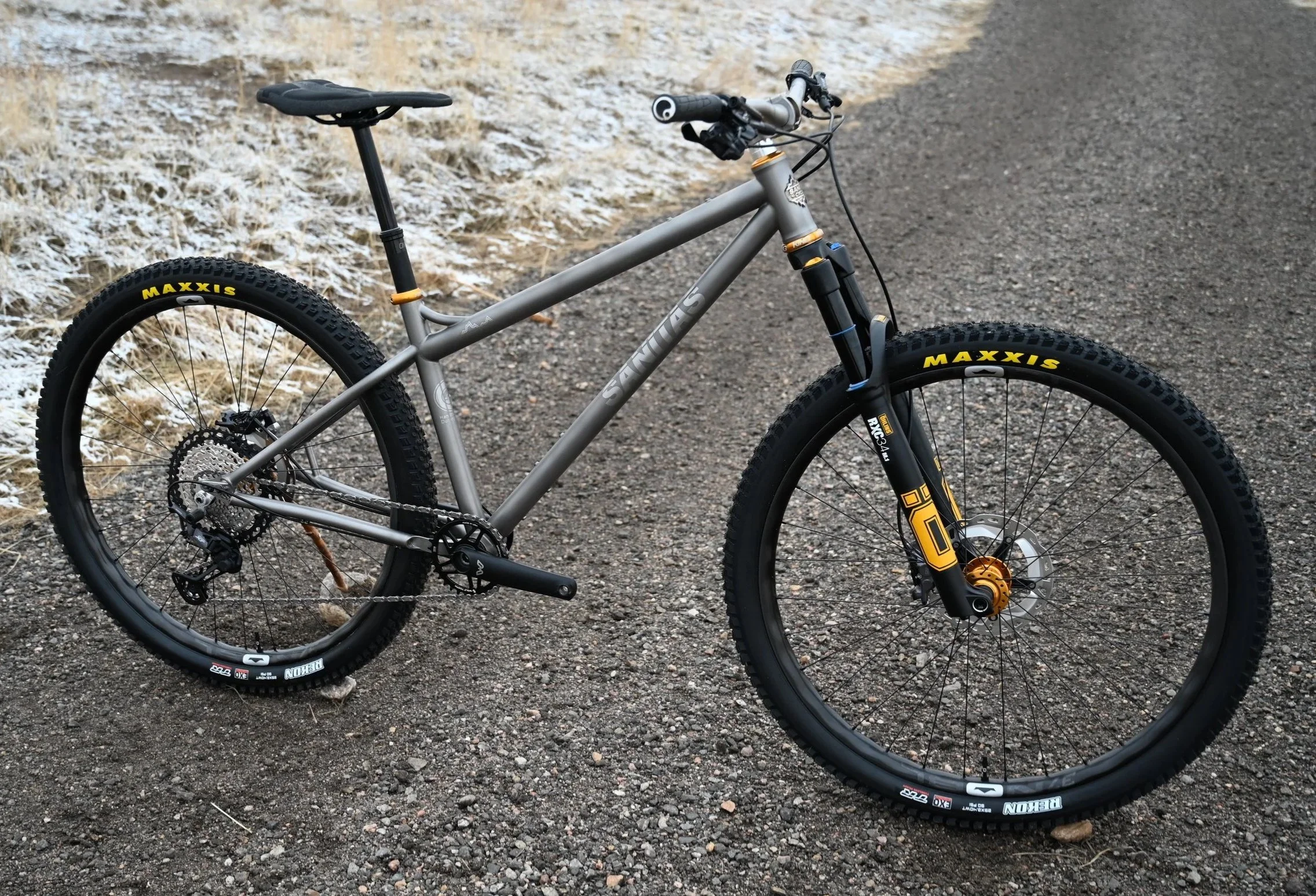

Root Hardtail Titanium
The Sanitas Root hardtail is handcrafted using hand-selected, size-specific, cold-worked 3/2.5 titanium tubing. Each frame is designed and built one by one in our Durango, Colorado, facility to provide a ride specifically catered to the customer’s riding style and needs.
Designed with contemporary geometry that is optimized for 120-130mm travel forks, making it more capable on technical and fast-descending trails, all the while offering a fun and low-maintenance option for a wide range of trails.
Rider position and preference can be tailored through custom geometry, which is all done in-house. The Root Hardtail’s design has been optimized to provide ample tire clearance of 29 x 2.6”, so you get that smooth ride over all types of terrain. Internal cable and dropper cable routing through the front triangle is included, with cables run externally on the rear. With the ability to hand-select the components of your choice for your Root Hardtail frame, you can build the high-performing, trail-ready bike of your dreams.
Each frame is designed and built one by one in our Durango, Colorado, facility to provide a ride that’s specifically catered to the customer’s riding style and needs in mind.
Frame Starting from $3,850
Frame Features
Hand-selected T3A/2.5V Straight Gauge Titanium Tube set
Custom Tuned Geometry
29×2.6mm Tire Clearance
44mm Headtube
73mm // T47 Bottom Bracket
31.6mm Seatpost Diameter (Internal Dropper Post Routing)
Post Mount Brake Mounts
15×110 Front // 12×148 Rear
UDH Dropouts
Accepts 52mm or 55mm Chainline
Internal or External Mechanical, Di2, or Wireless AXS shift routing
Internal or External Downtube Brake Routing
Standard Finish: Ceramic bead blast with brushed logo
Custom Anodization, Cerakote & Paint quoted separately
Additional Frame Options
Double Butted Tube set
Fully Integrated (Hidden) Cable Routing
Sliding Dropouts
Rack Mounts
Extra H20 Mounts
Bento Box (Top Tube) Mounts
* options at additional cost.
Finishes
With a variety of finish mediums available, we want elevate your riding experience that matches your style and help bring your dream to reality!
Custom Finishes
For the purist at heart that appreciate the look and aesthetic of a classic raw titanium finish
Titanium Finishes
Bike Build
The customization does not stop with your frame geometry or finish!
Drivetrain and components are just as personal as your riding style! We want to build your dream bike to your exact preferences and what you are envisioning.
How would you like your bike to be built?
