Silver and black mountain bike with tan tires and brown handlebar tape, set against a white background.

Multi-surface & Gravel

Node Gravel SG Titanium

from $2,950 - $5,950

Up to 700 x 50 mm tire clearance for a reliably smooth ride over any terrain

    • Tubing: Hand selected, size specific straight gauge 3/2.5 CWSR titanium

    • Bottle Mounts: Down tube and seat tube locations

    • Finish: Ceramic bead blast with brushed logo (Black or White Vinyl Logos available).

    • Production: Hand made one-by-one in Durango, Colorado

    • Frame Weight: 3.0 to 3.5 lbs. depending on sizing.

    • Fork: Sanitas Carbon Gravel

    • Headset: Woof Tooth Performance

    • Bottom Bracket: Available Upon Request

  • Fork: Sanitas Carbon AR

    Headset: Woof Tooth Performance

    Bottom Bracket: Available Upon Request

    • SRAM Rival AXS

      • Fork: Sanitas Carbon Gravel

      • Drivetrain: SRAM Rival AXS

      • Brakes: SRAM Rival AXS Hydro Disc

      • Cockpit: FSA Alloy

      • Seatpost: FSA Alloy

      • Wheels: BOYD CCC Gravel Alloy

      • Tires: Vittoria Mezcal Gravel Endurance (700x44c)

    • SHIMANO GRX

      • Fork: Sanitas Carbon Gravel

      • Drivetrain: Shimano GRX Mechanical 12 spd

      • Brakes: Shimano GRX Hydro Disc

      • Cockpit: FSA Alloy

      • Seatpost: FSA Alloy

      • Wheels: BOYD BOYD CCC Gravel Alloy

      • Tires: Vittoria Mezcal Gravel Endurance (700x44c)

    • Recommended Use: Gravel or Pavement

    • Stock Geometries Available in Multiple Sizes

    • Tire Width:

      • 700c x 50mm for 1x Drivetrain

      • 700c x 45mm for 2x Drivetrain

    • Headtube: 44mm straight taper

    • Bottom Bracket: T47 - 68mm

    • Rear Hub Spacing: 142 x 12mm

    • Cable Routing: External Rear Triangle, Internal Front Triangle

    • Brake: Flat Mount Disc (Optimized for 160mm Disc Rotors)

    • Seatpost Diameter: 31.6 mm

    • Dropouts: UDH

    • Manufacturer Warranty: Lifetime

  • Click to view geometry chart

Shop Now

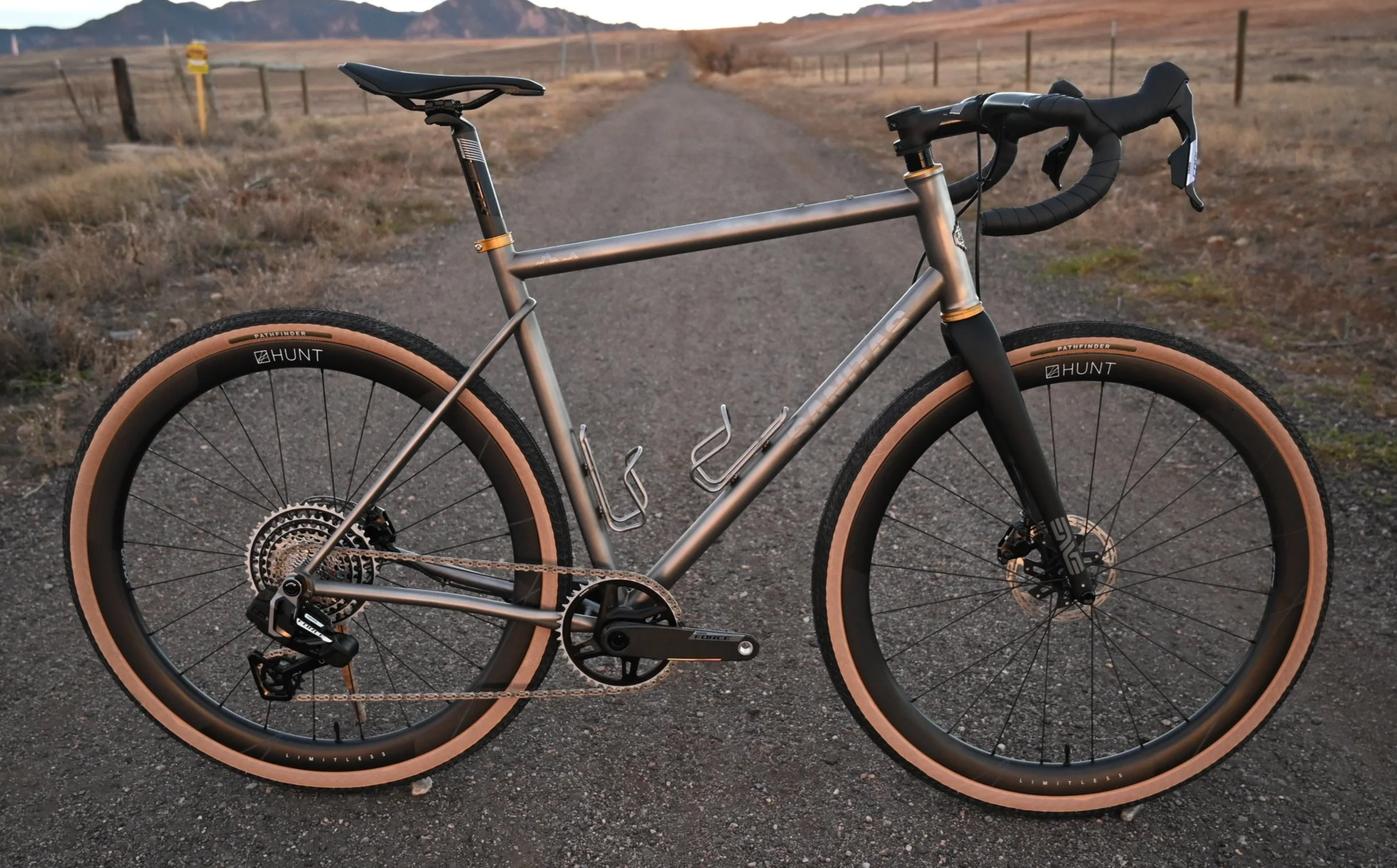

A silver and black gravel or mountain bike with wide tires, disc brakes, and drop handlebars against a white background.

Node Gravel Titanium

from $3,450

50 mm tire clearance** - smooth over any terrain

    • Tubing: Hand selected, size specific 3/2.5 CWSR titanium

    • Head Badge: Sanitas custom designed and hand fabricated

    • Bottle Mounts: Down tube and seat tube locations (3rd bottle mount option)

    • Finish: Ceramic bead blast with brushed logo (Anodization at upcharge & quoted separately).

    • Production: Custom design and made one-by-one in Durango, Colorado

    • Custom Sizing: No additional charge

    • Lead time from time of order: 10 - 12 weeks

    • Frame Weight: 3.0 to 3.5 lbs. depending on sizing.

    • SRAM

    • Shimano

    • ENVE or No. 6 Composites

    • Headset: White Industries, Chris King, Cane Creek or Wolf Tooth

    • Cockpits: Ritchey, ENVE, or FSA

    • Bottom Bracket: Wheels Mfg, Cane Creek or Chris King

    • Wheels: Hunt, Boyd, Zipp or ENVE

    • Tire: Schwalbe, Maxxis or WTB

    • Saddles: Selle Italia, Fizik or WTB

    • Recommended Use: Gravel, CycloCross or Touring

    • Custom sizing: No Additional Upcharge

    • Tire Width: **

      • 700c x 50mm for 1x Drivetrain

      • 700c x 44mm for 2x Drivetrain

    • Headtube: 44mm straight taper

    • Bottom Bracket: T47 english thread

    • Rear Hub Spacing: 142 x 12mm

    • Cable Routing: External or Internal

    • Front Derailleur: 31.8m or 34.9m clamp-on

    • Brake: flat mount disc

    • Seatpost Diameter: 27.2 or 31.6 mm

    • Seat Collar: Sanitas titanium or Wolf Tooth Alloy

    • Manufacturer Warranty: Lifetime

  • Each Node is a custom fit fabrication handmade to order to your specific fitment needs.

    Click to view fit sheet

Shop Now
