Pistil Trail Full-Suspension Ti/Aluminum
The Sanitas Pistil Trail is handcrafted using hand-selected, size-specific, cold-worked 3/2.5 titanium tubing. Each frame is designed and built one by one in our Durango, Colorado facility to provide a ride specifically catered to the customer’s riding style and needs.
Designed around hand-picked, oversized, cold-worked, stress-relieved titanium tubing, a hydroformed downtube, and an independent CNC’d 7075-R aluminum rear triangle. The Pistil trail is our first offering in the trail bike market. This bike is tailored for the trail rider from all-mountain trails and town laps to days in the bike park centered around a generous 150mm of dual-suspension travel. The rear triangle utilizes the 3VO suspension designed by Chris Curry at Ministry Cycles and a Titanium 3D-printed yoke for the seat tube and bearing mounts. The front triangle uses a hydroformed downtube to provide ample shock clearance and increased strength. Rider position and preference can be tailored through custom geometry, which is all done in-house. The Pistil Trail’s design has been optimized to provide ample tire clearance of 29 x 2.6”, so you get that smooth ride over all types of terrain. With the ability to hand-select the components of your choice for your Pistil Trail frame, you can build the high-performing, trail-ready bike of your dreams.
Each frame is offered with custom geometry at no additional charge. Please reach out for a custom geometry fit sheet.

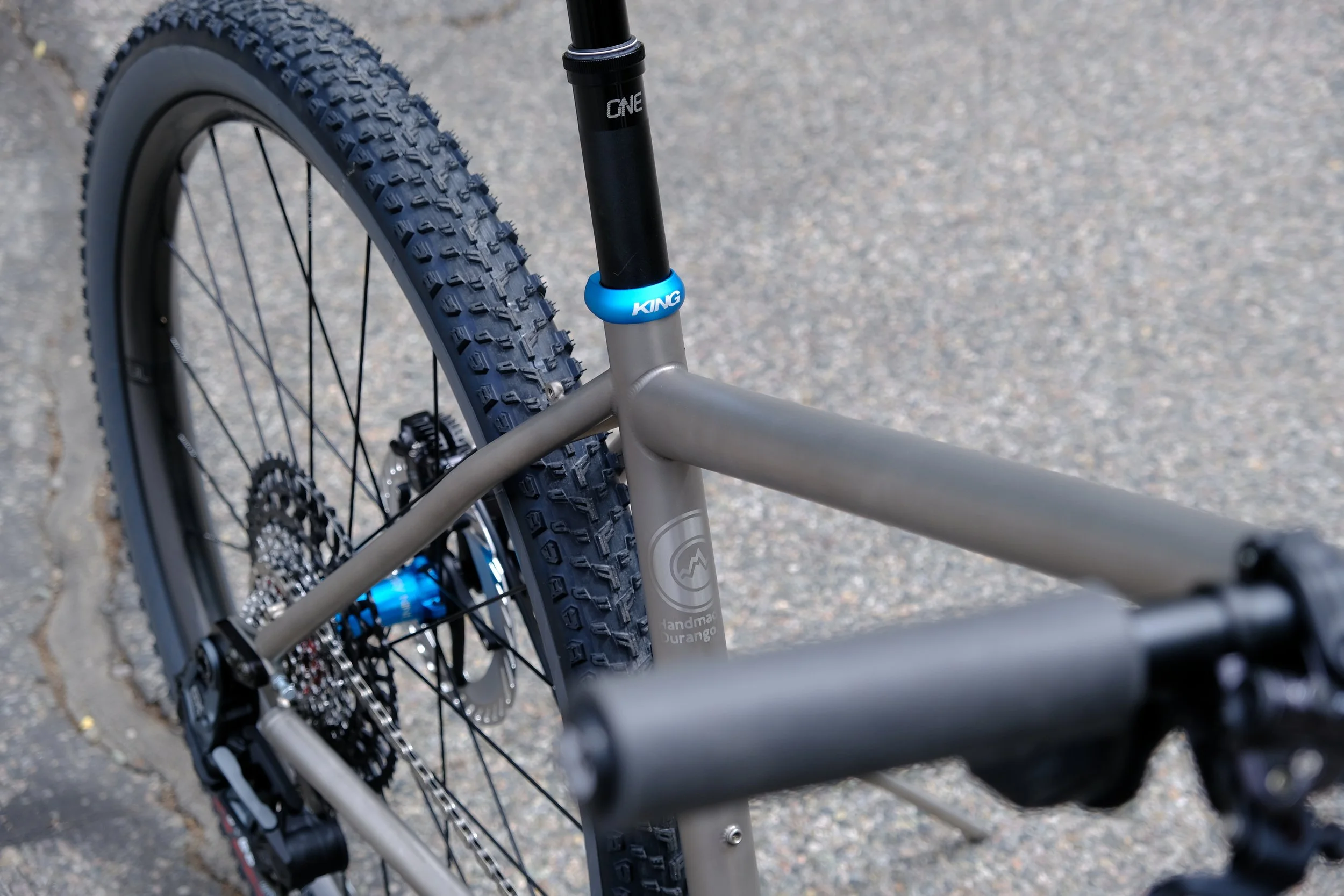

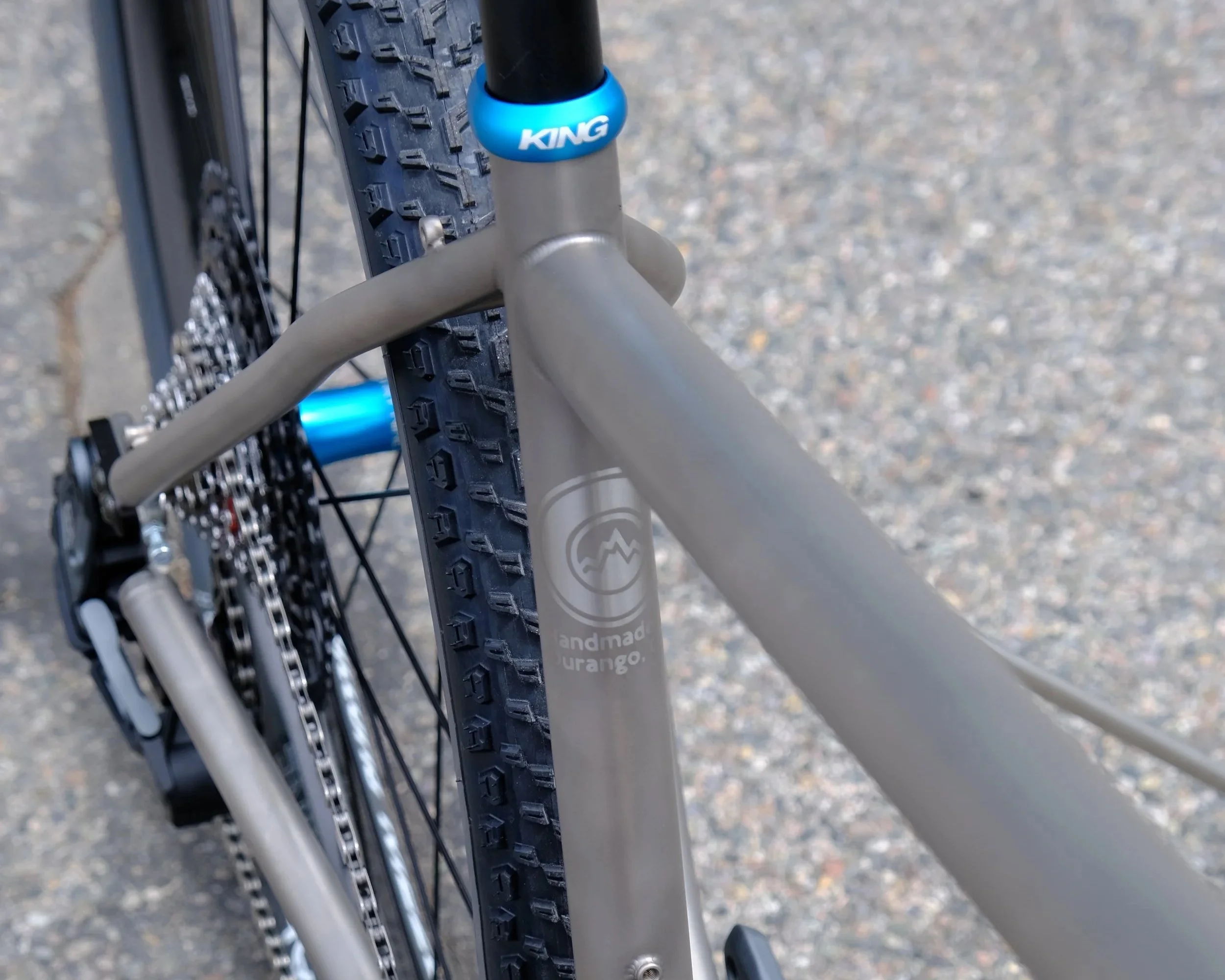

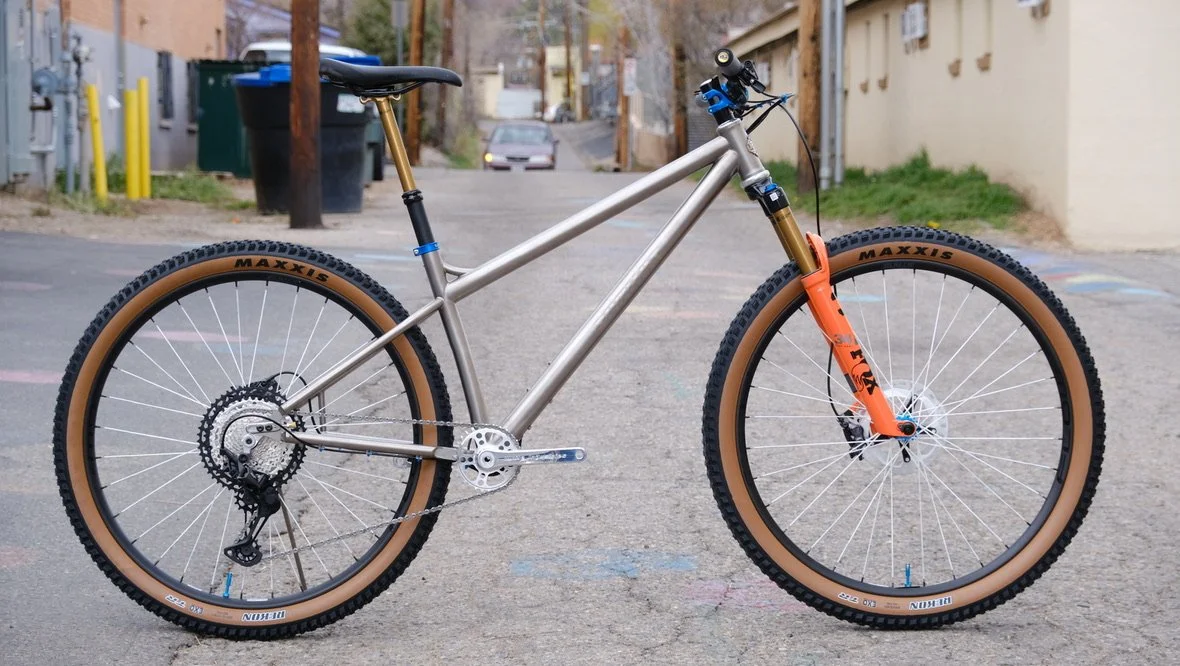

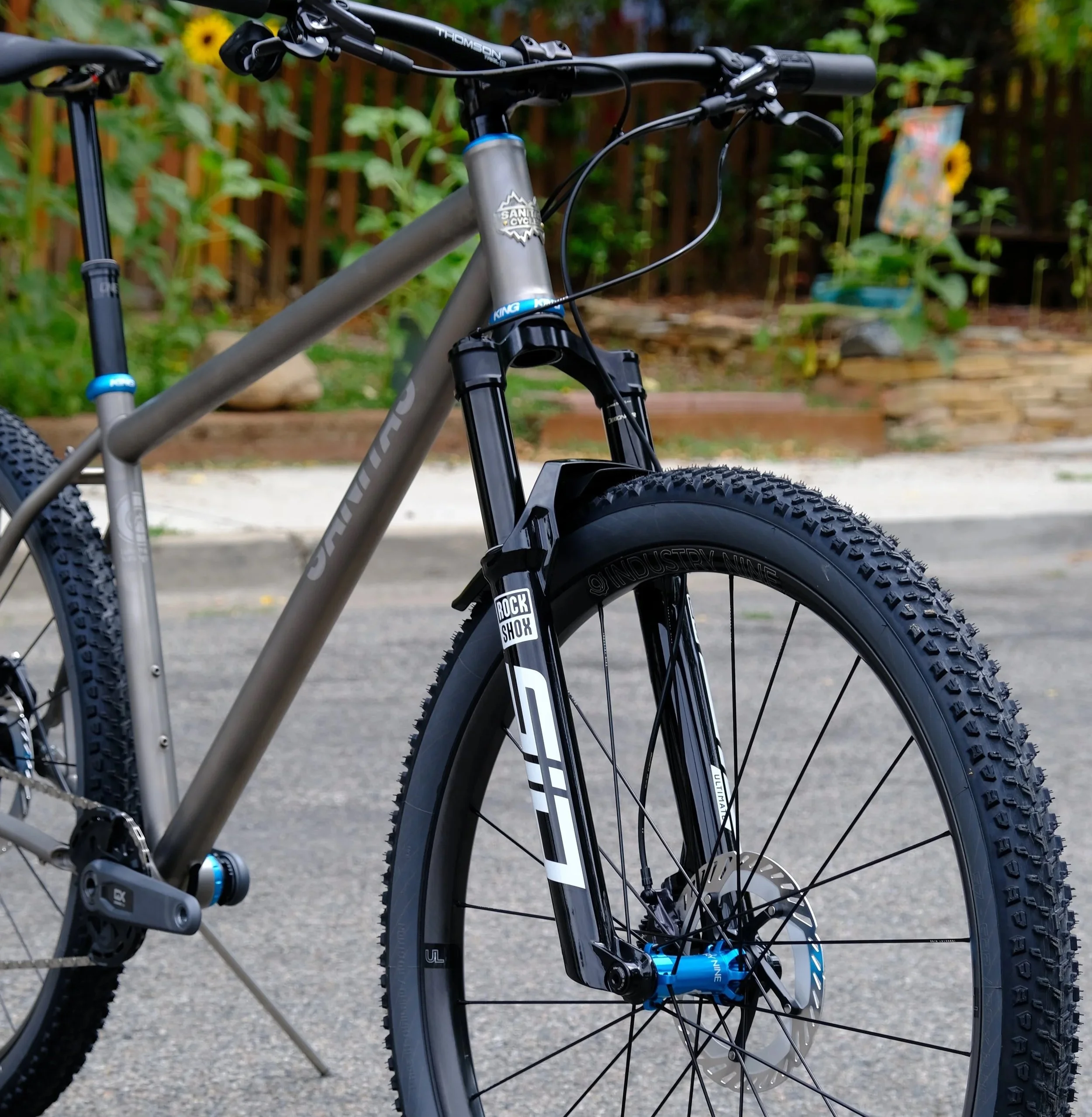

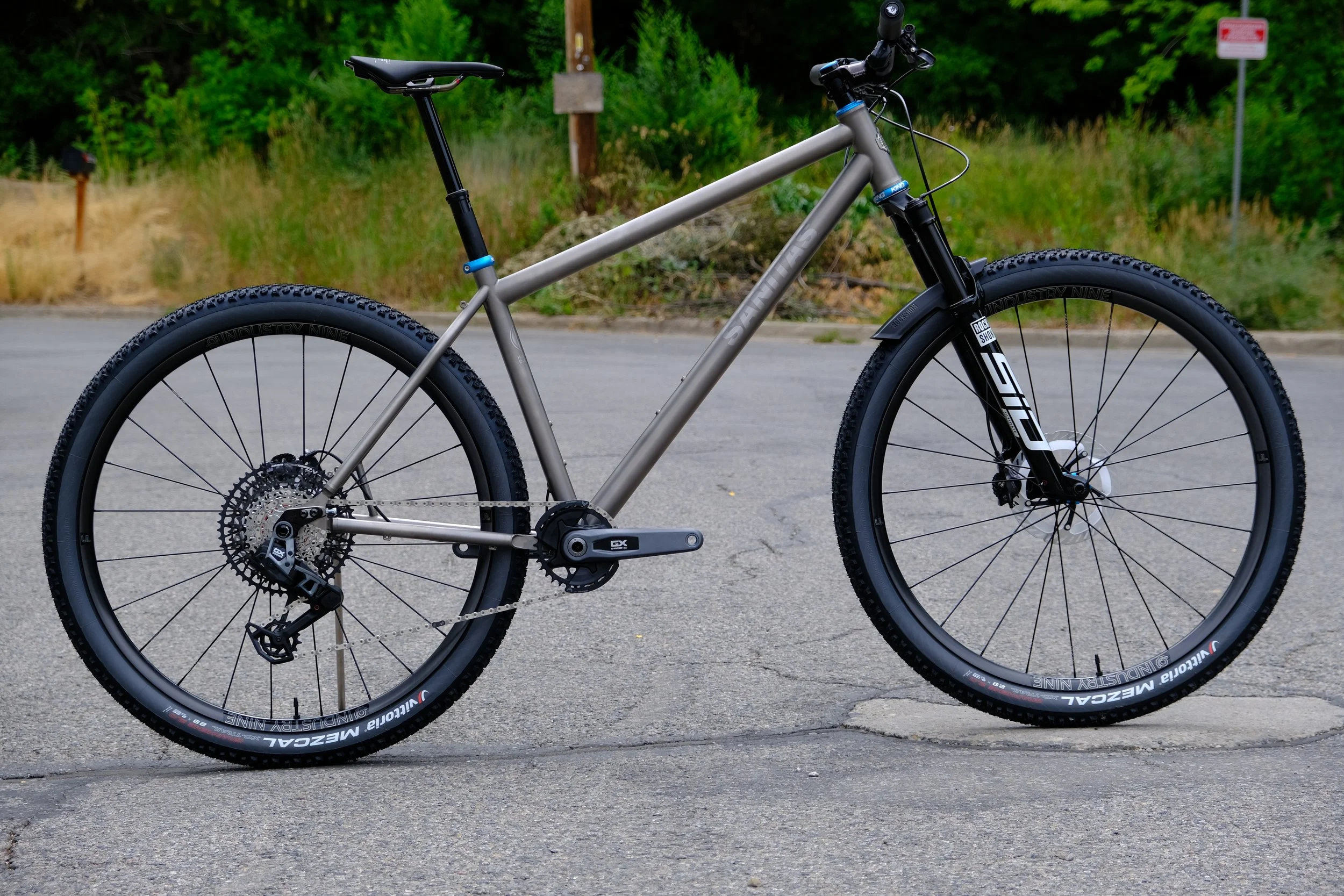

Root Hardtail Titanium
from $3,450
2.6" tire clearance for a reliably smooth ride on all terrain
-
Recommended Use: Mountain Single Track
Custom or Stock Geometry.
Tire Width: 29 x 2.6”

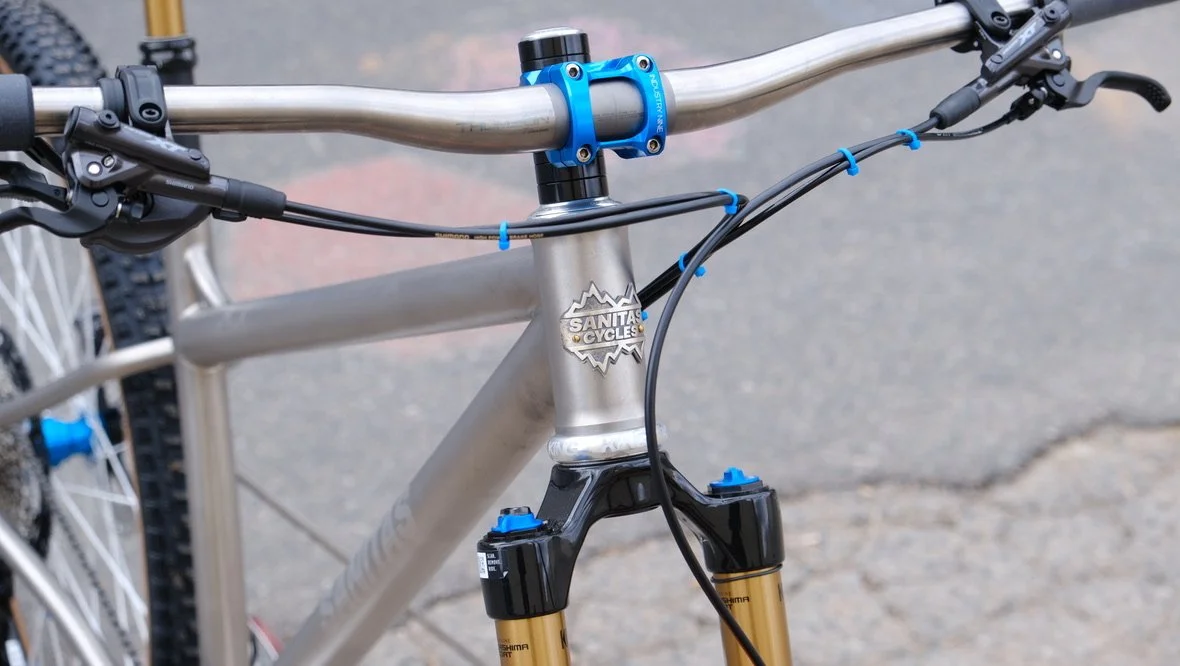

Headtube: 44mm Straight Taper

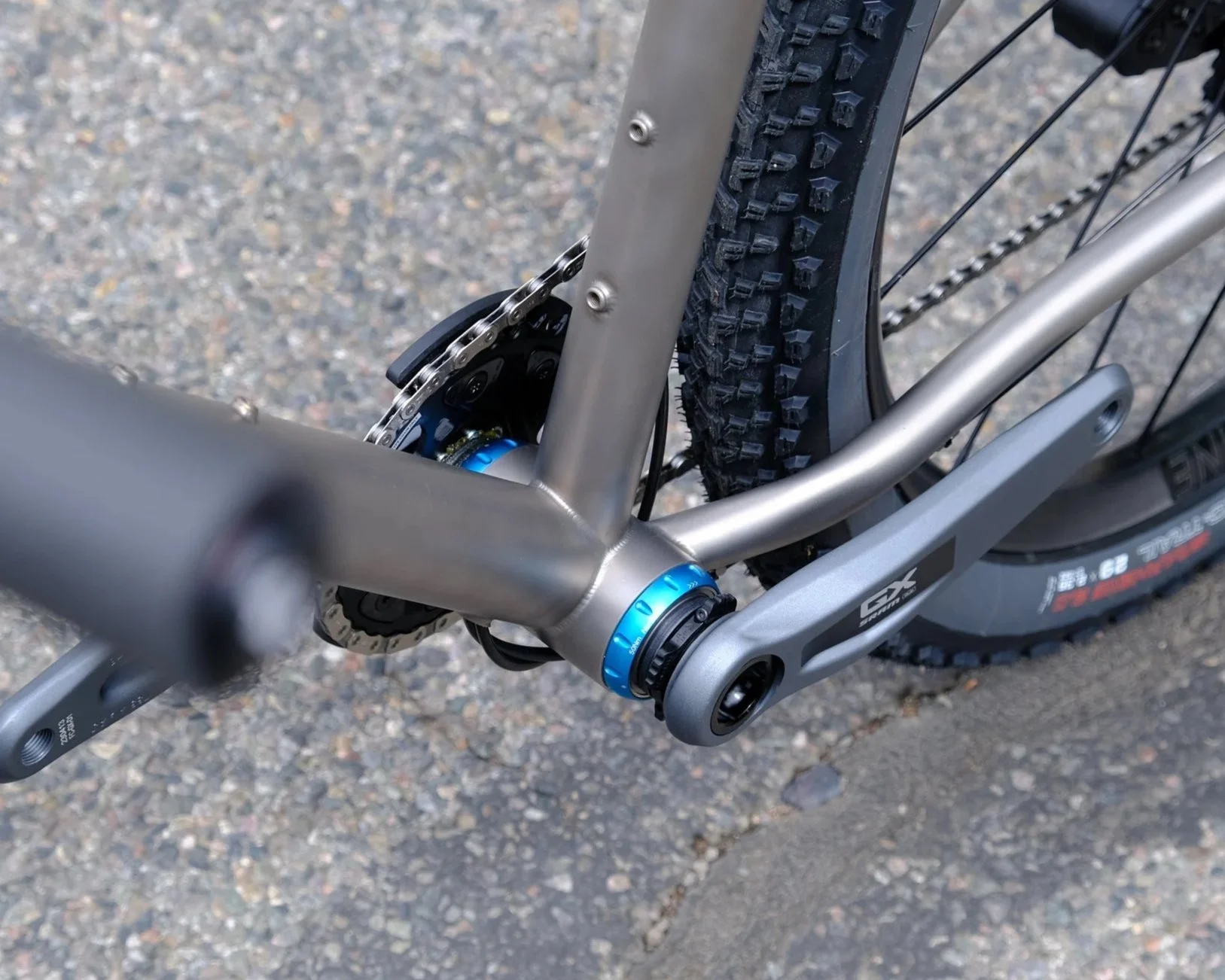

Bottom Bracket: T47 English Thread
Rear Hub Spacing: 148 x 12mm Boost
Cable Routing: External or Internal
Front Derailleur: 34.9mm Clamp-On
Brake: Post or Flat Mount Disc
Seatpost Diameter: 31.6 mm (internal dropper routing)
Seat Collar: Sanitas Titanium or Wolf Tooth Alloy
Manufacturer Warranty: Lifetime
-
Tubing: Hand Picked Size Specific 3/2.5 CWSR Titanium

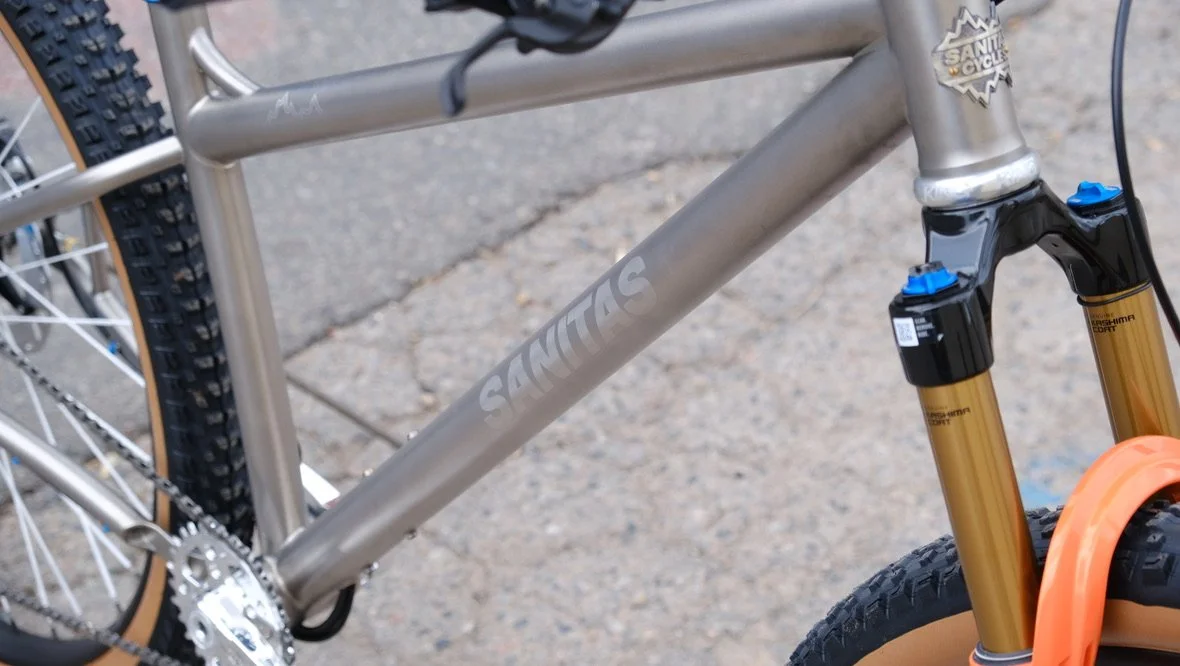

Head Badge: Sanitas Custom designed & Hand-Fabricated by Revolution Jewelry

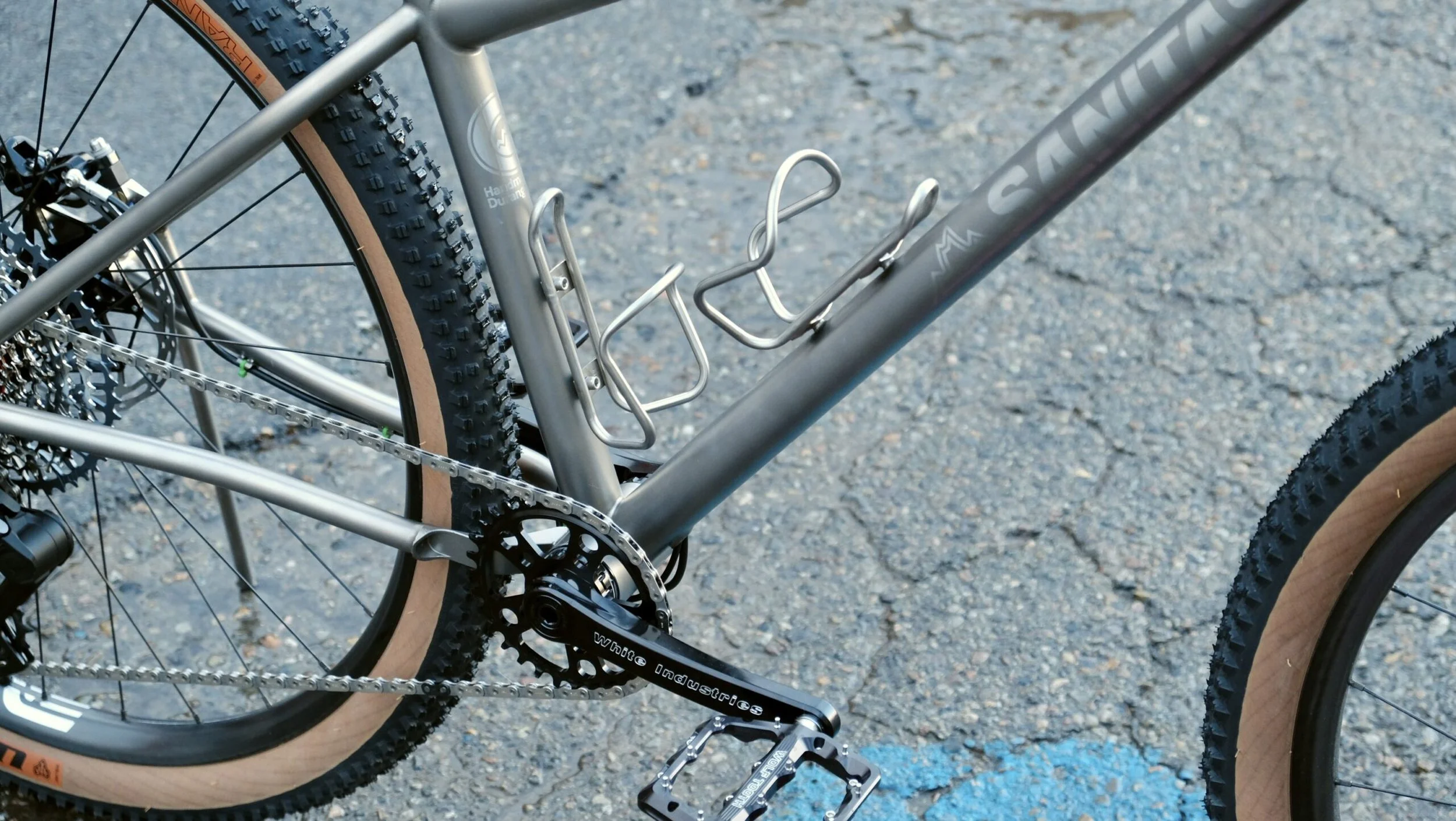

Bottle Mounts: Down Tube and Seat Tube Locations (3rd Mount Optional)
Finish: Ceramic Bead Blast with Brushed Logo (Anodization at upcharge & quoted separately).
Production: Custom design & made one-by-one in Durango, Colorado
Custom Sizing: No Additional Charge
Lead time From Time of Order: 10 to 12 weeks
Frame Weight: 3.0 to 3.5 lbs. depending on Sizing.
-
FOX, Rock Shox, MRP or Cane Creek
-

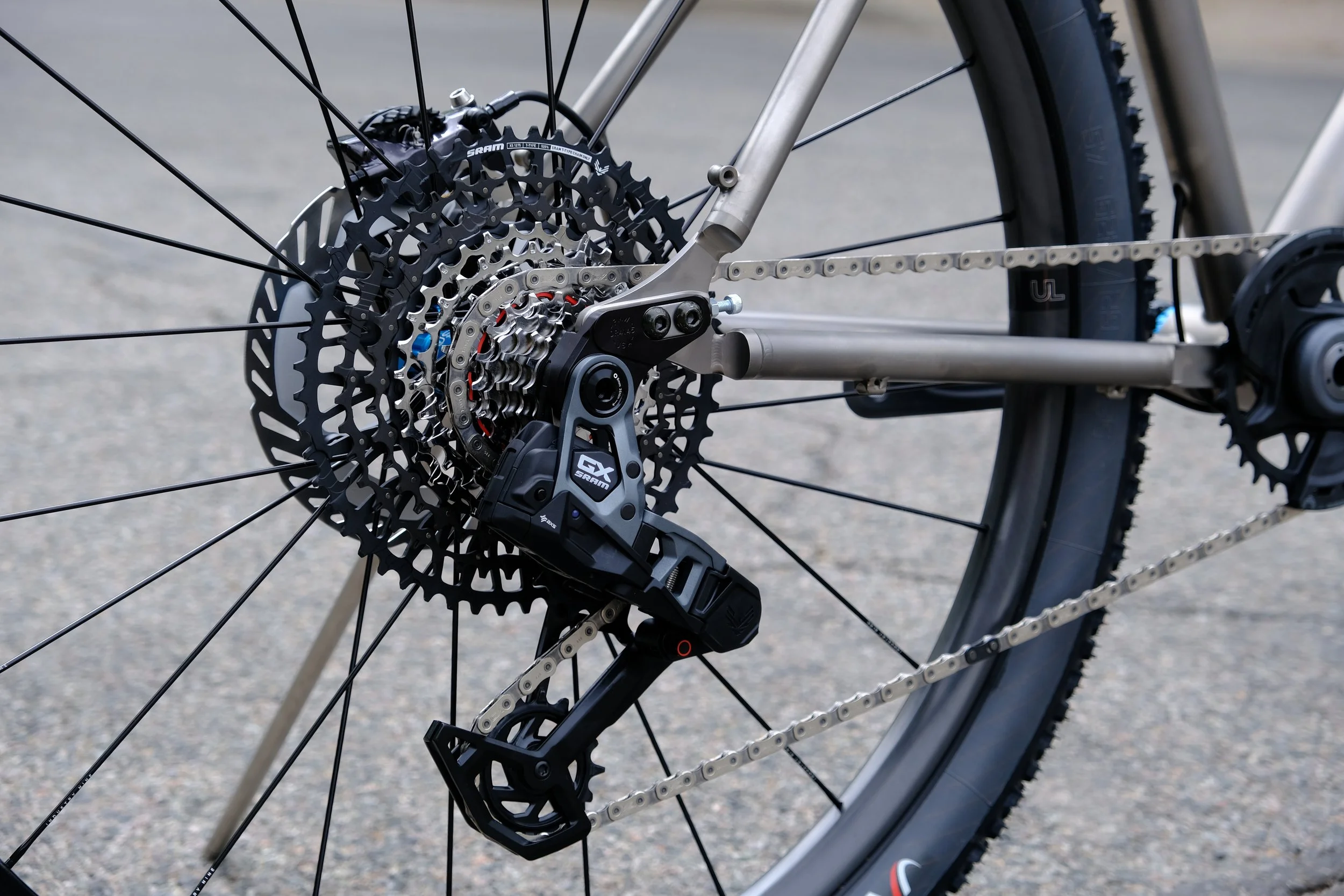

SRAM or Shimano
-

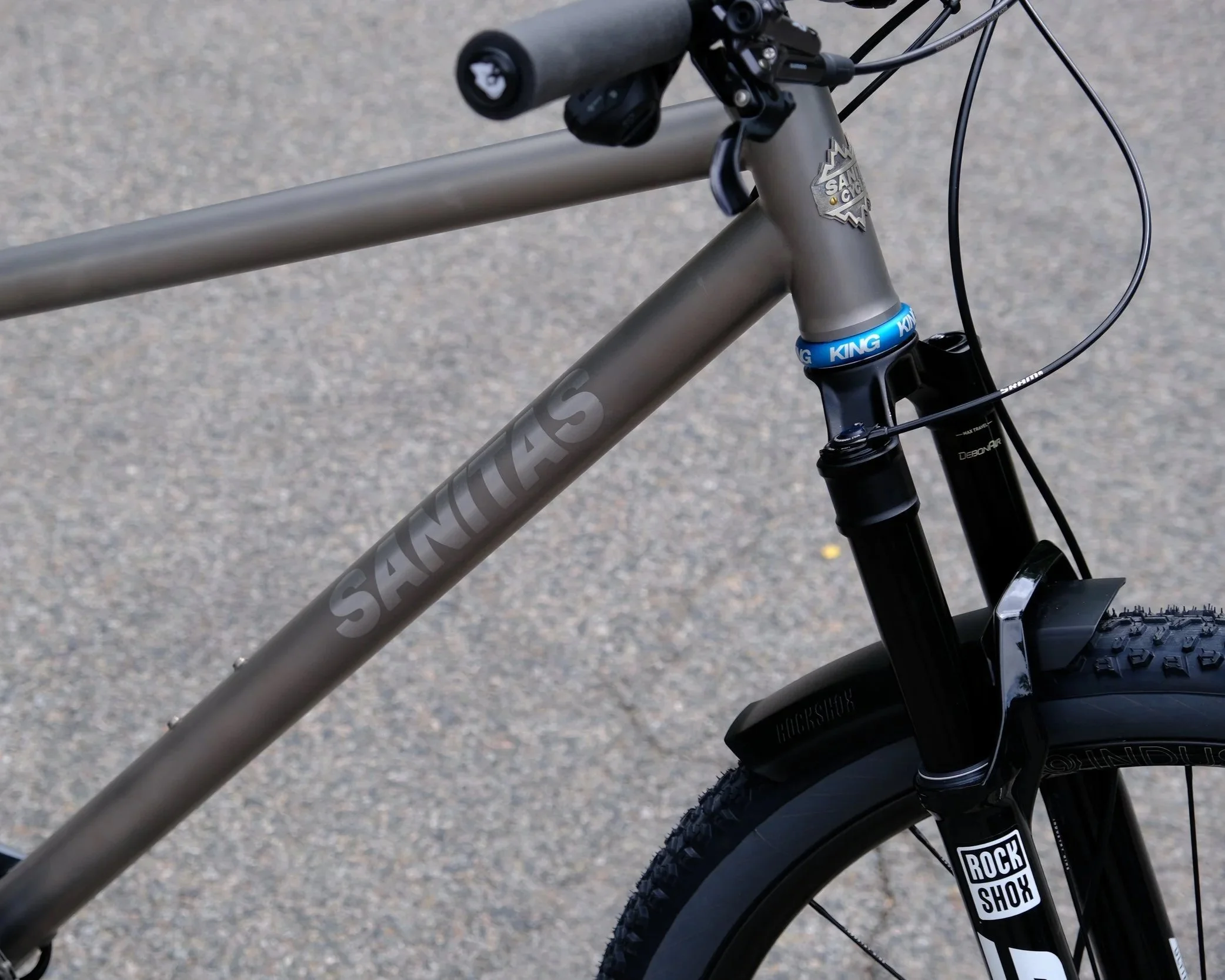

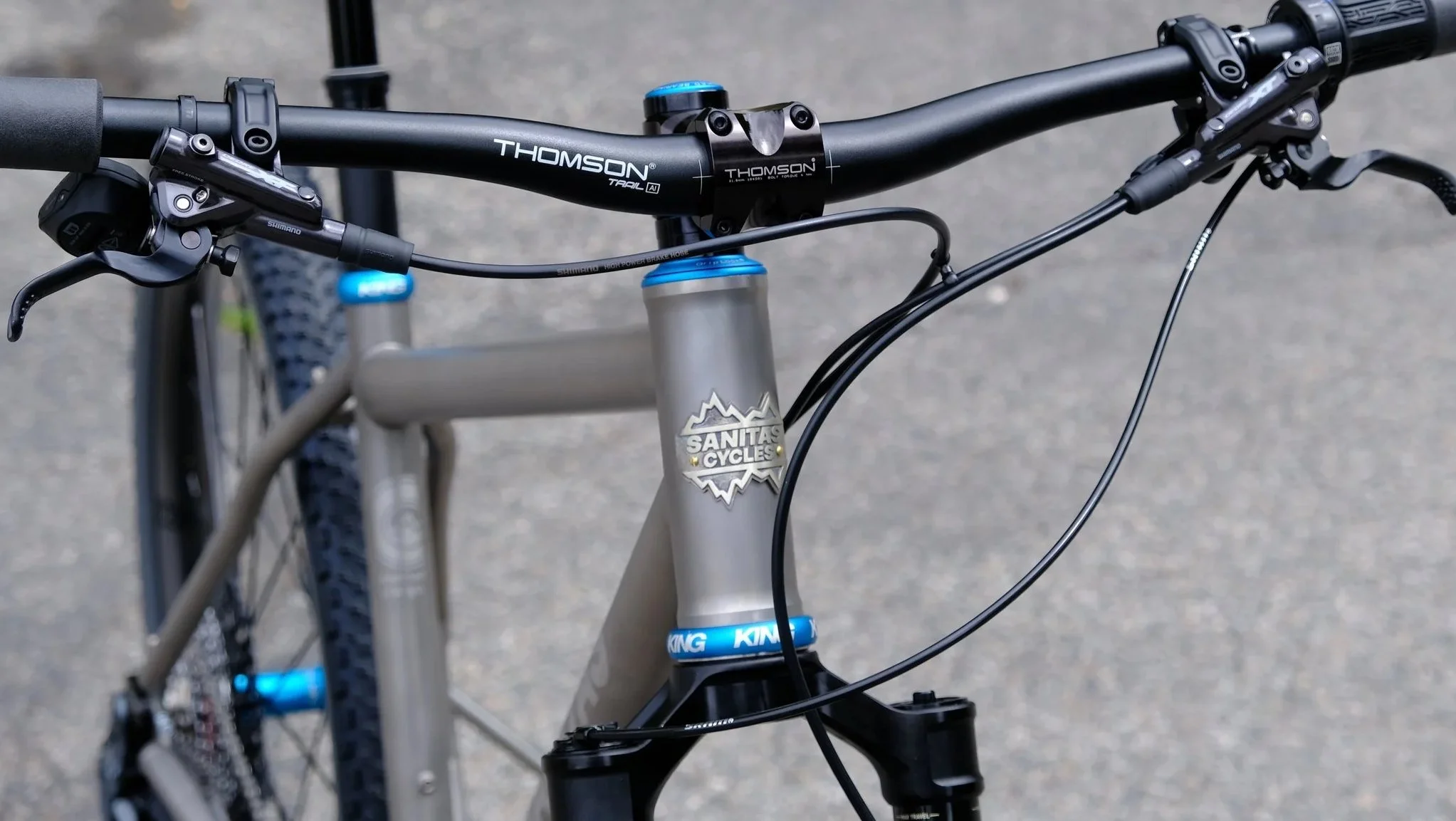

Headset: Chris King, White Industries, Wolf Tooth or Cane Creek
Cockpits: ENVE, Thomson, Ritchey, or FSA
Wheels: ENVE, Zipp or Reserve
Tire: Vittoria, Maxxis, Schwalbe or WTB
Saddles: Selle Italia, Fizik or WTB
-
Each Root is a custom fit fabrication, but stock geometry is available and can be viewed by clicking the button below.
