Pistil Trail Full-Suspension Ti/Aluminum

from $4,850

150mm of Travel for Versatility in a Wide Range of Riding Conditions.

    • Recommended Use: Mountain Single Track, All Mountain Trails, Bike Park

    • Custom Geometry.

    • Tire Width: 29 x 2.6”

    • Headtube: 44mm Straight Taper

    • Suspension: Optimized around 150mm Travel

    • Bottom Bracket: T47 – 73mm

    • Rear Hub Spacing: 148 x 12mm Boost (UDH Compatible)

    • Cable Routing: External (Rear Triangle) or Internal (Ft Triangle)

    • Front Derailleur: N/A - Optimized for 1x Drivetrains

    • Brake: Post Mount Disc

    • Seatpost Diameter: 31.6 mm (internal dropper routing)

    • Seat Collar: Sanitas Titanium, or Ogle Component Design or Wolf Tooth Alloy

    • Manufacturer Warranty: Lifetime

    • Tubing: Hand selected size specific 3/2.5 butted CWSR titanium

    • Head Badge: Sanitas custom designed and hand fabricated by Revolution Jewelry

    • Bottle Mounts: Downtube only + additional locations available

    • Finish:

      • Front Triangle: Ceramic bead blast with brushed logo

      • Rear Triangle: Raw Aluminum

      • Note: Anodization and/or Paint available at upcharge & quoted separately

    • Production:  Custom design and made one by one in Durango, Colorado

    • Custom Sizing: No additional charge

    • Lead time From Time of Order:  12 to 14 weeks

    • Frame Weight: 4 to 5 lbs. depending on sizing (without shock).

    • FOX, Rock Shox, MRP or Cane Creek

    • SRAM, Shimano or TRP

    • Headset: Chris King, Wolf Tooth, White Industries or Cane Creek

    • Cockpit: ENVE, Ritchey or FSA

    • Wheels: ENVE, Boyd, Zipp or Hunt

    • Tires: Maxxis, WTB, Vittoria or Schwalbe

    • Saddle: Selle Italia, FIzik or WTB

  • Each Pistil Trail is a custom-fit fabrication. Please get in touch with us for a custom geometry fit sheet.

    Click to view fit sheet

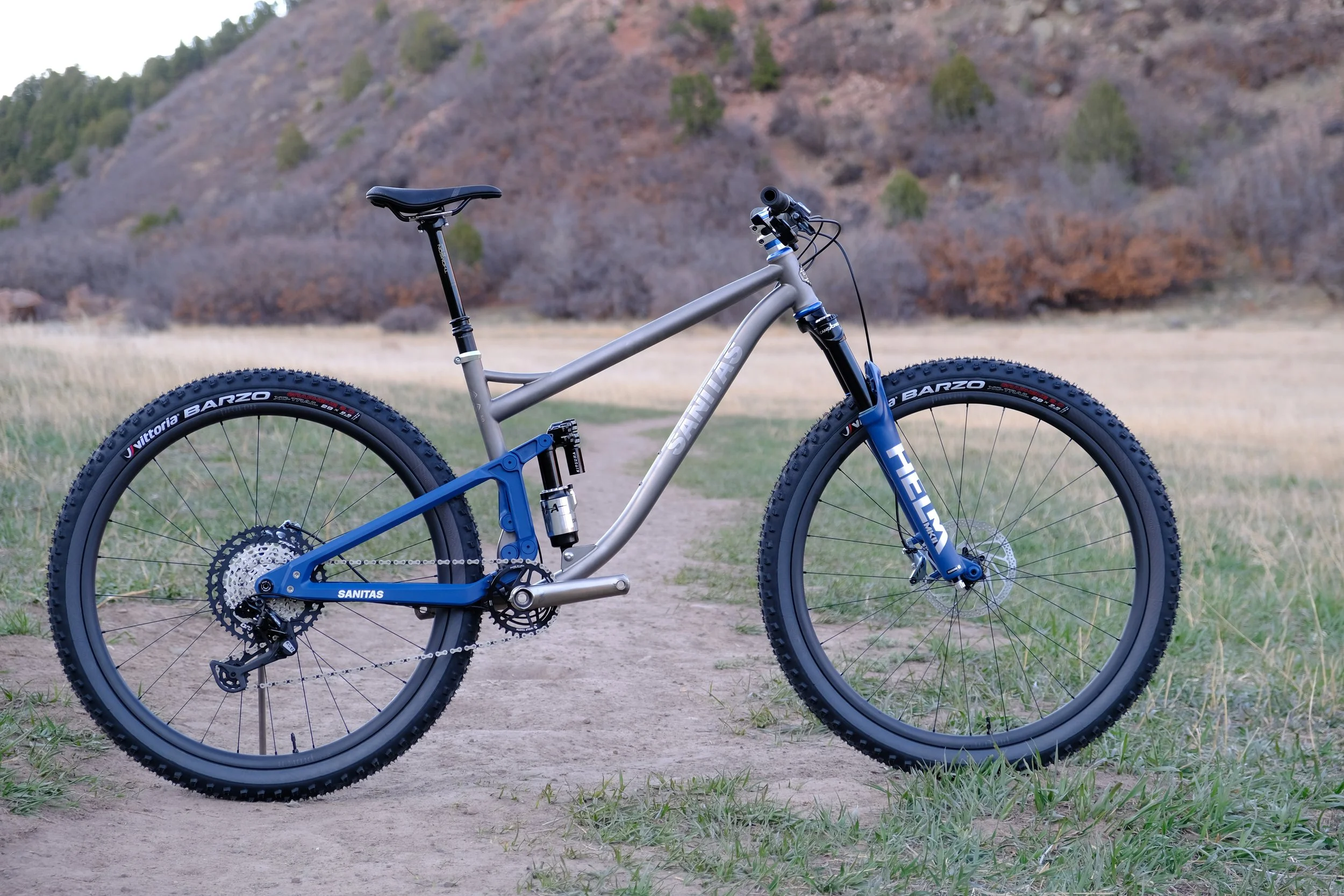

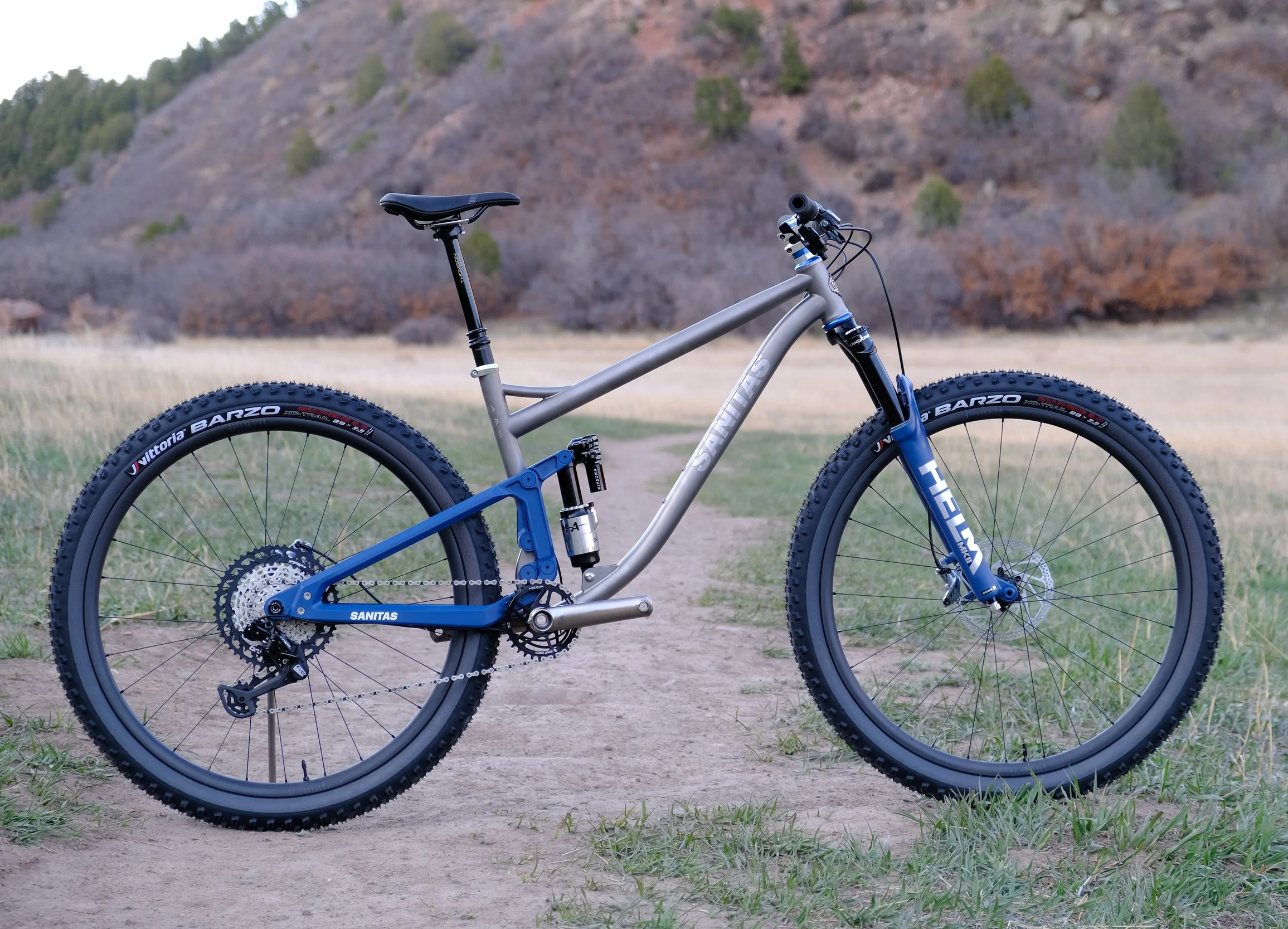

A mountain bike with a silver frame and blue components, sitting on a dirt trail with grassy sides, in a landscape with dry grass and a rocky hillside in the background.

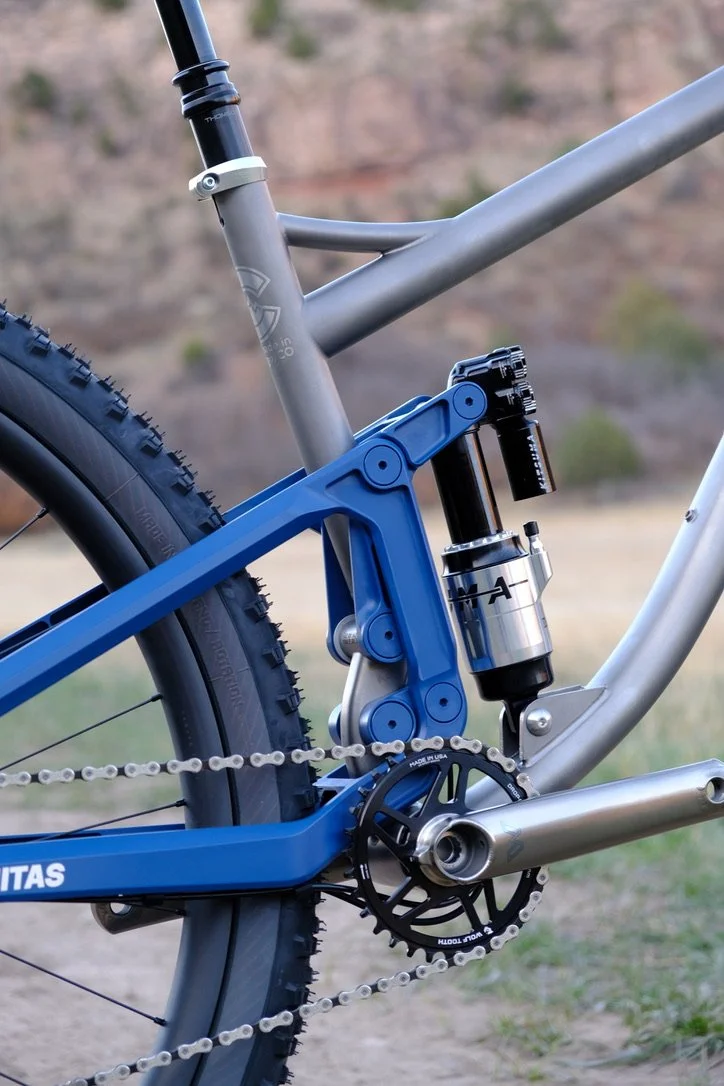

Close-up of a mountain bike's rear suspension and chain drive, with a grey frame and blue components, on a dirt trail background.
Front view of a mountain bike with black handlebars, gold suspension fork, and black padded saddle, on a dirt trail with sparse grass.

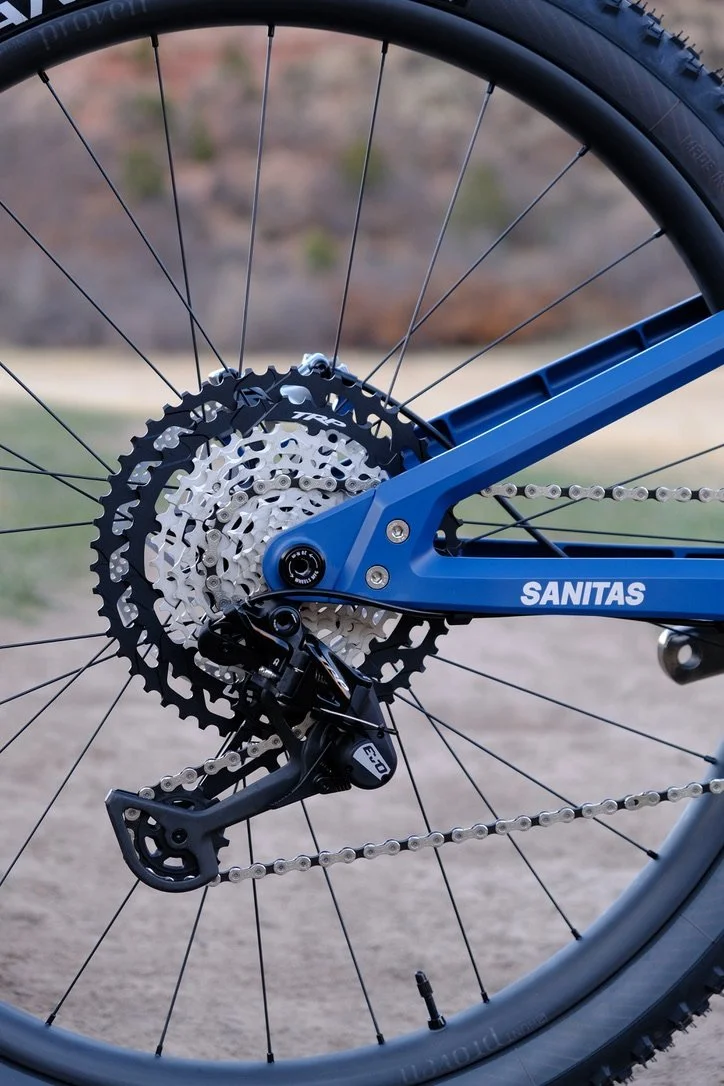

Close-up of a mountain bike's rear wheel, derailleur, and gear cassette with a blue frame marked 'SANITAS' and a muddy trail surface in the background.

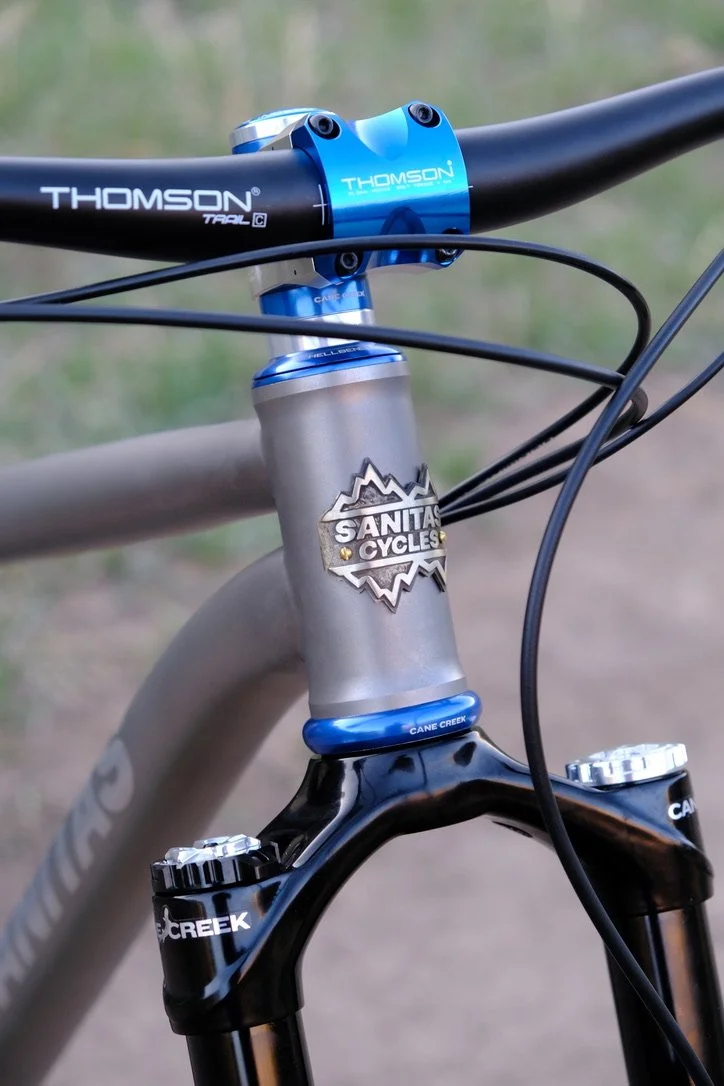

Close-up of a mountain bike's front suspension fork and handlebar, with brands 'Thomson' and 'Sanitas Cycles' visible.

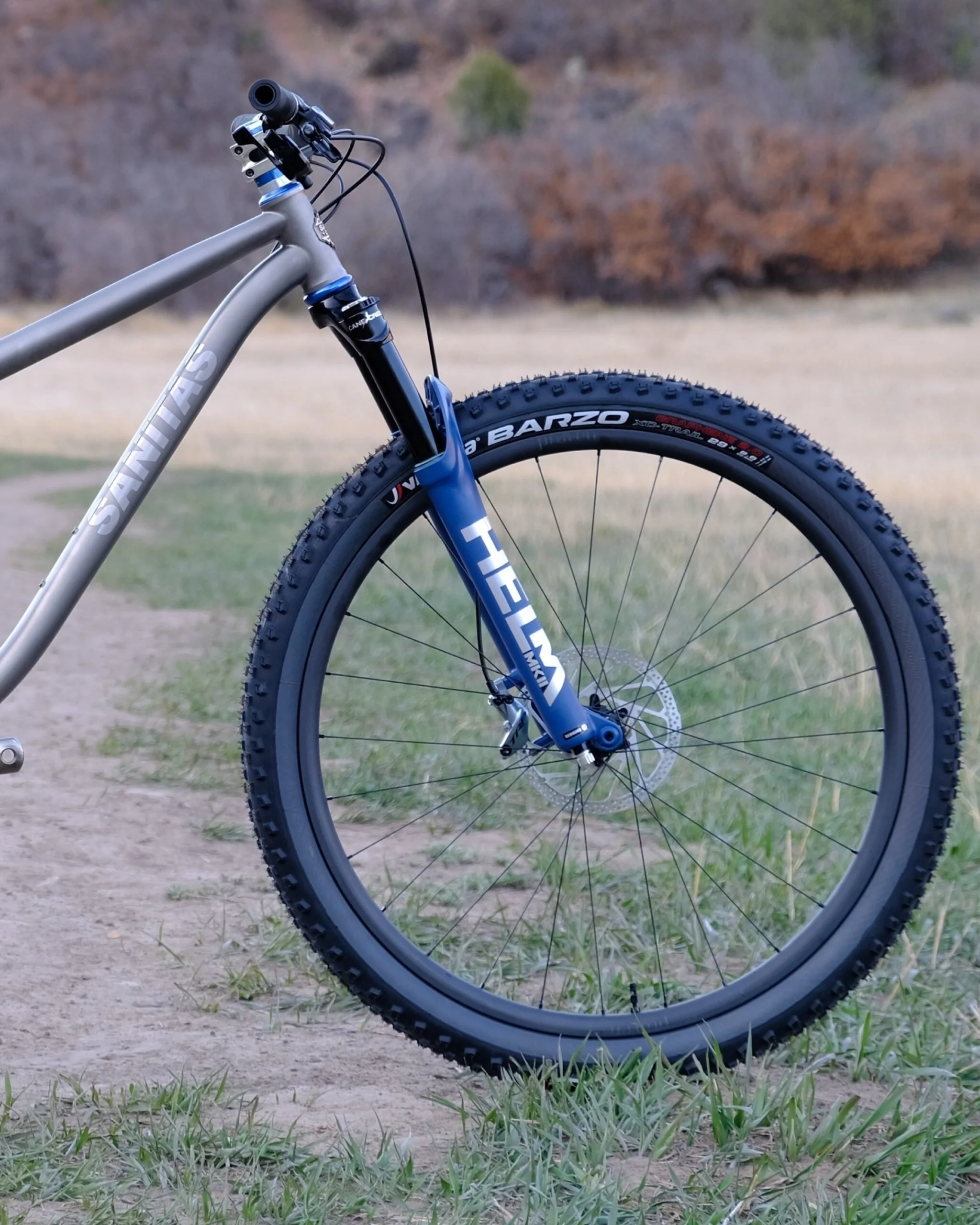

Close-up of a mountain bike front wheel with a blue front suspension fork, black tire, and disc brake, set on dirt and grass with blurred trees in the background.

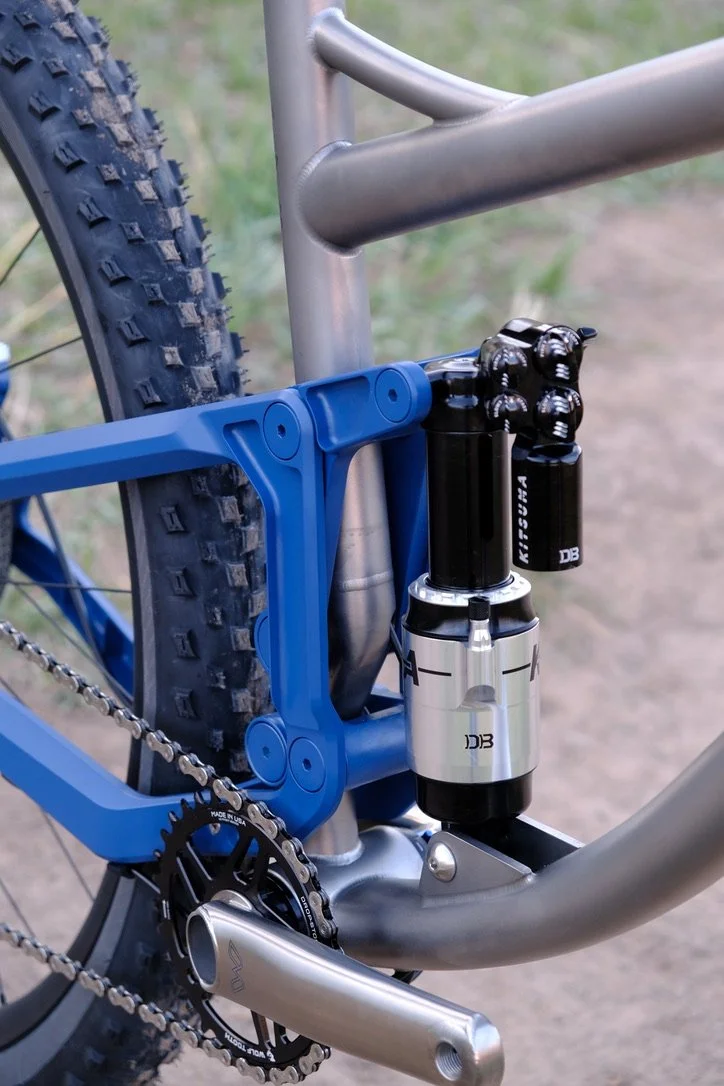

Close-up of a mountain bike's rear suspension, featuring a black and silver shock absorber mounted to a bright blue frame, with a rear tire and part of the crankset visible.

Pistil Trail Full-Suspension Ti/Aluminum

The Sanitas Pistil Trail is handcrafted using hand-selected, size-specific, cold-worked 3/2.5 titanium tubing.  Each frame is designed and built one by one in our Durango, Colorado facility to provide a ride specifically catered to the customer’s riding style and needs.

Designed around hand-picked, oversized, cold-worked, stress-relieved titanium tubing, a hydroformed downtube, and an independent CNC’d 7075-R aluminum rear triangle. The Pistil trail is our first offering in the trail bike market. This bike is tailored for the trail rider from all-mountain trails and town laps to days in the bike park centered around a generous 150mm of dual-suspension travel. The rear triangle utilizes the 3VO suspension designed by Chris Curry at Ministry Cycles and a Titanium 3D-printed yoke for the seat tube and bearing mounts. The front triangle uses a hydroformed downtube to provide ample shock clearance and increased strength. Rider position and preference can be tailored through custom geometry, which is all done in-house. The Pistil Trail’s design has been optimized to provide ample tire clearance of 29 x 2.6”, so you get that smooth ride over all types of terrain. With the ability to hand-select the components of your choice for your Pistil Trail frame, you can build the high-performing, trail-ready bike of your dreams.

Each frame is offered with custom geometry at no additional charge. Please reach out for a custom geometry fit sheet.
