Pistil XC Full Suspension Titanium/Carbon

from $5,500

120mm of Travel for a True XC Feel!

    • Recommended Use: Mountain Single Track

    • Custom or Stock Geometry.

    • Tire Width: 29 x 2.4”

    • Headtube: 44mm Straight Taper

    • Suspension: Optimized around 120mm Travel

    • Bottom Bracket: T47 – 73mm

    • Rear Hub Spacing: 148 x 12mm Boost (UDH Compatible)

    • Cable Routing: External or Internal (Ft Triangle)

    • Front Derailleur: N/A - Optimized for 1x Drivetrains

    • Brake: Post Mount Disc

    • Seatpost Diameter: 31.6 mm (internal dropper routing)

    • Seat Collar: Sanitas Titanium or Wolf Tooth Alloy

    • Manufacturer Warranty: Lifetime

    • Tubing: Hand selected size specific 3/2.5 butted CWSR titanium

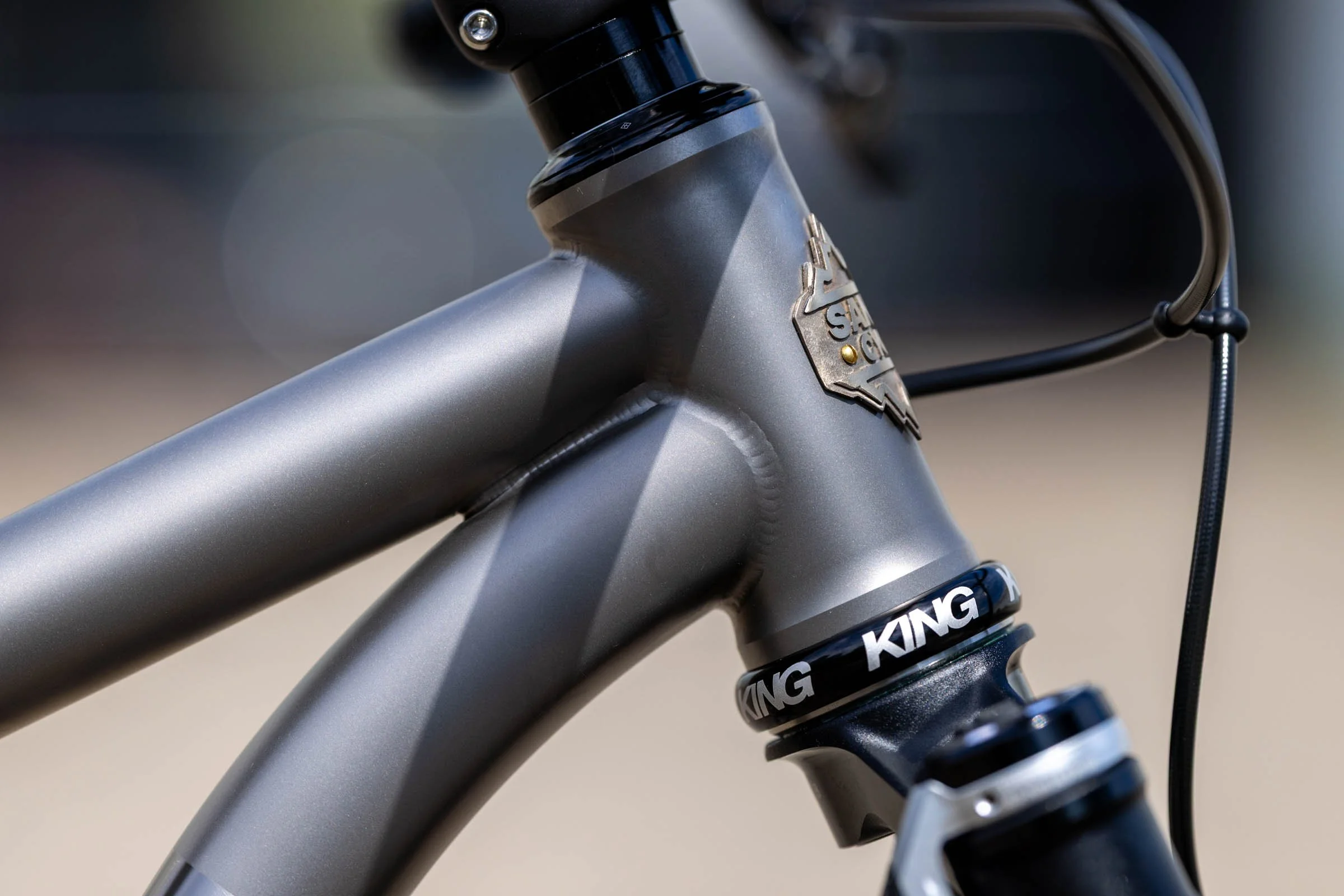

    • Head Badge: Sanitas custom designed and hand fabricated by Revolution Jewelry

    • Bottle Mounts: Seat tube locations - Upper & Lower

    • Finish:

      • Front Triangle: Ceramic bead blast with brushed logo

      • Rear Triangle: Clear Coated Nude Carbon

      • Note: Anodization and/or Paint available at upcharge & quoted separately

    • Production:  Custom design and made one by one in Durango, Colorado

    • Custom Sizing: No additional charge

    • Lead time From Time of Order:  12 to 14 weeks

    • Frame Weight: 3.5 to 4.5 lbs. depending on sizing.

    • FOX, Rock Shox, MRP or Cane Creek

    • SRAM, Shimano or TRP

    • Headset: Chris King, Wolf Tooth, White Industries or Cane Creek

    • Cockpit: ENVE, Ritchey or FSA

    • Wheels: ENVE, Boyd, Zipp or Hunt

    • Tires: Maxxis, WTB, Vittoria or Schwalbe

    • Saddle: Selle Italia, FIzik or WTB

  • Each Pistil is a custom fit fabrication, but stock geometry is available.

    Click to view fit sheet

    Click to view geometry chart

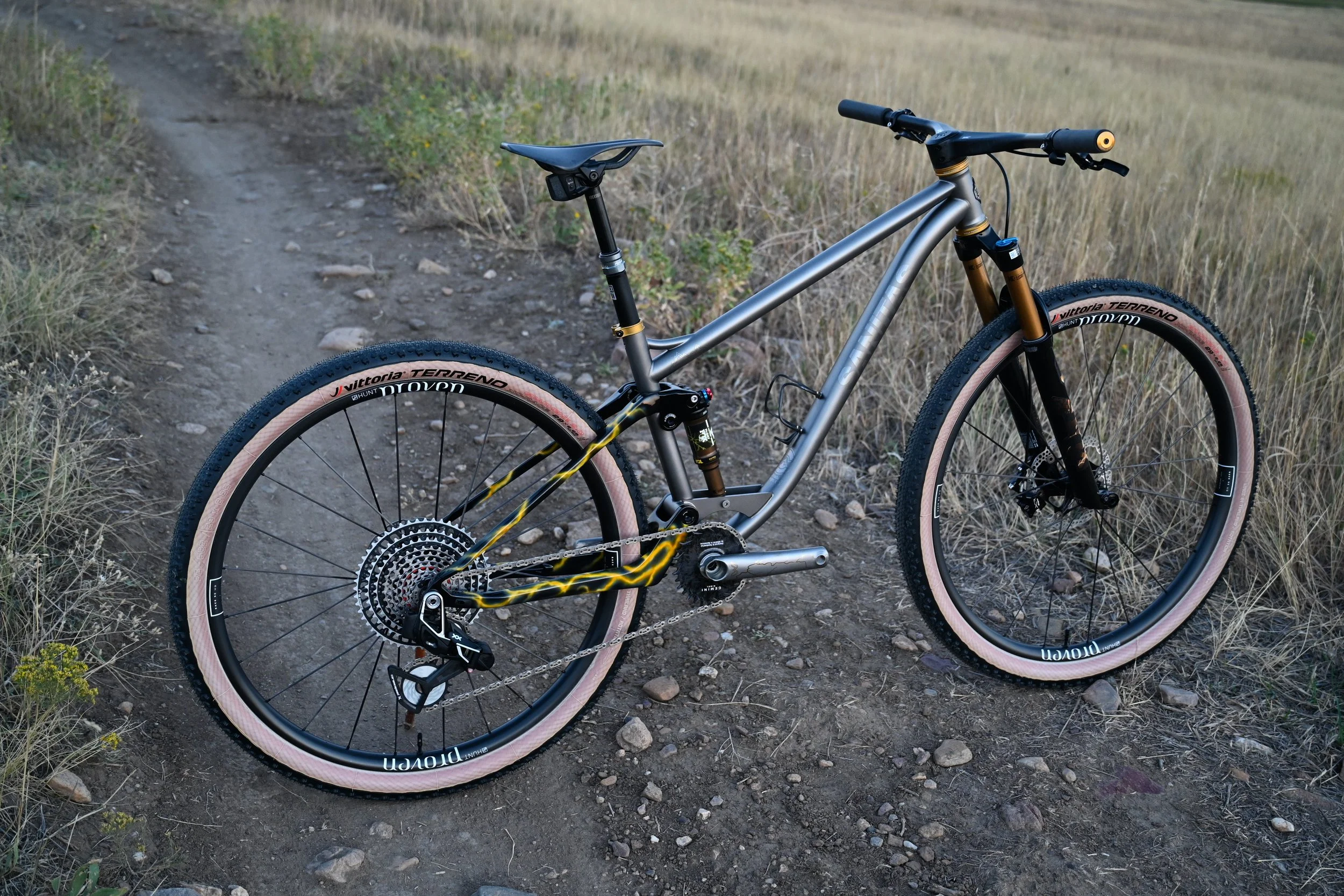

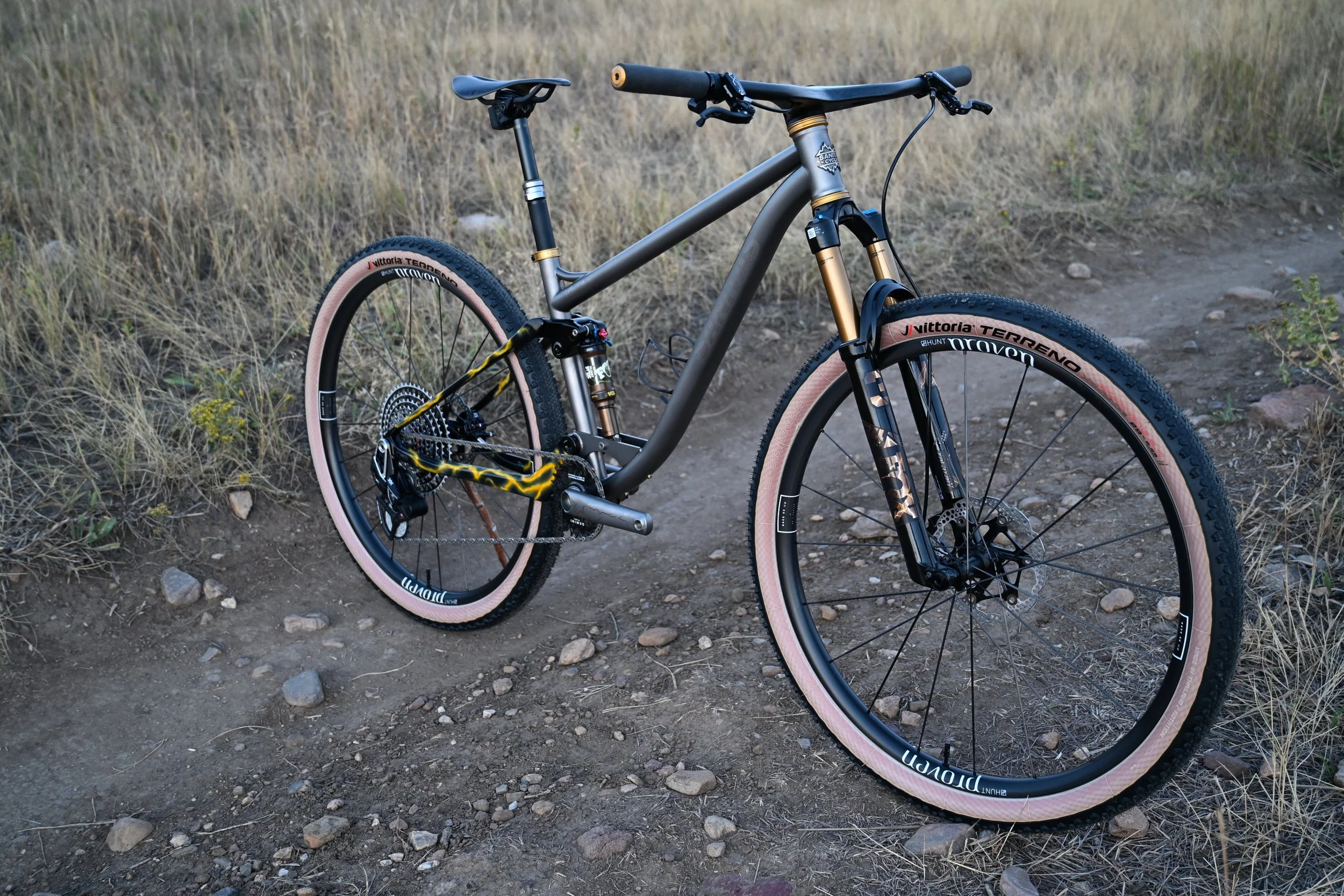

A mountain bike with a metallic frame, pink tires, and disc brakes, sitting on a dirt trail on a grassy plain with mountains in the background.
A mountain bike on a dirt trail in a grassy field, featuring a silver frame, pink tires, and a full suspension system.
A mountain bike with a matte gray frame, gold front suspension fork, and pink tires, resting on a dirt path with dry grass and small rocks.

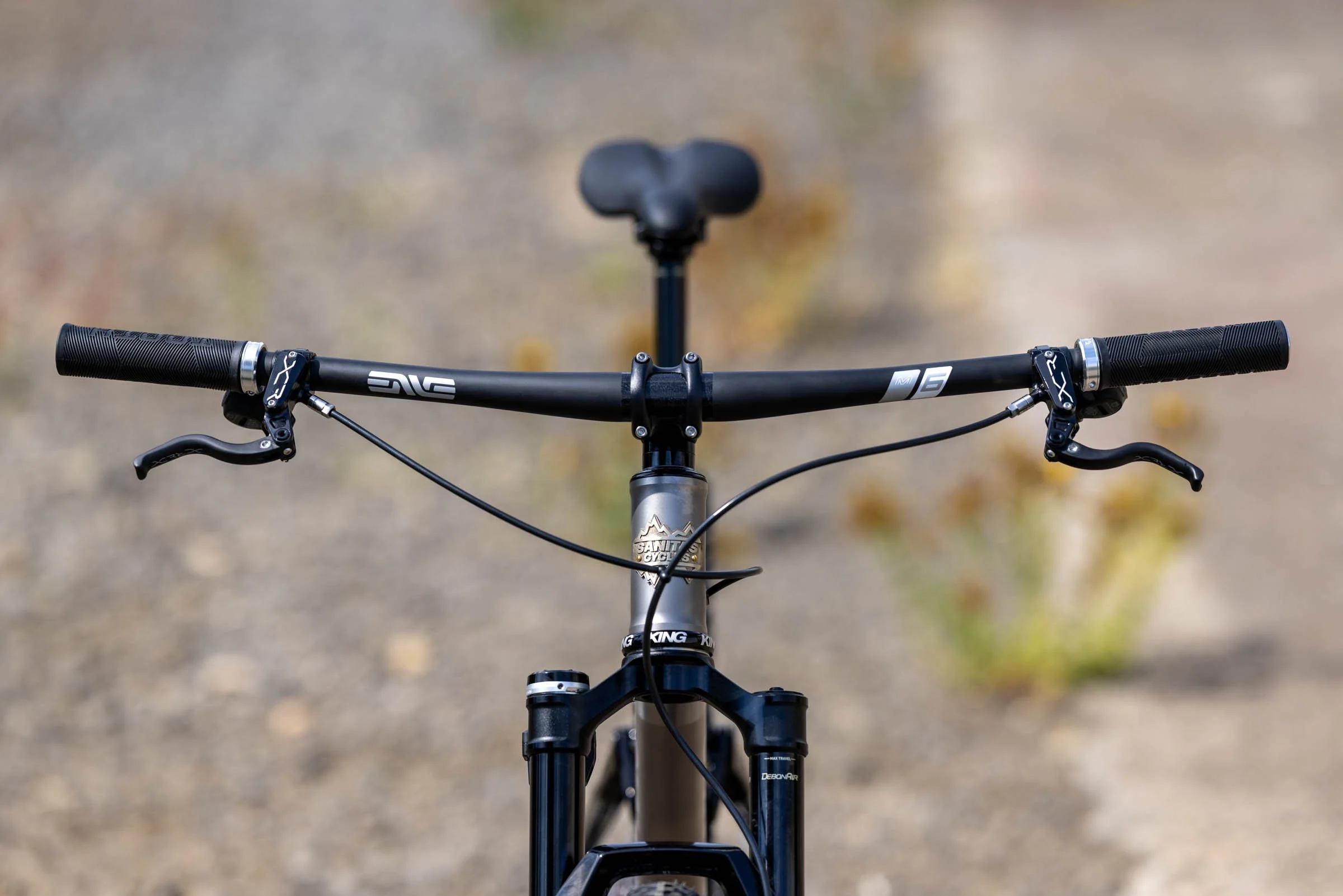

Close-up of a mountain bike's front suspension fork, handlebars, and part of the front wheel on a dirt trail.
Close-up of a mountain bike on a dirt trail in a grassy outdoor setting with mountains in the background.
Close-up of a mountain bike frame focusing on the bottom bracket, crank arm, and rear tire on a dirt trail.

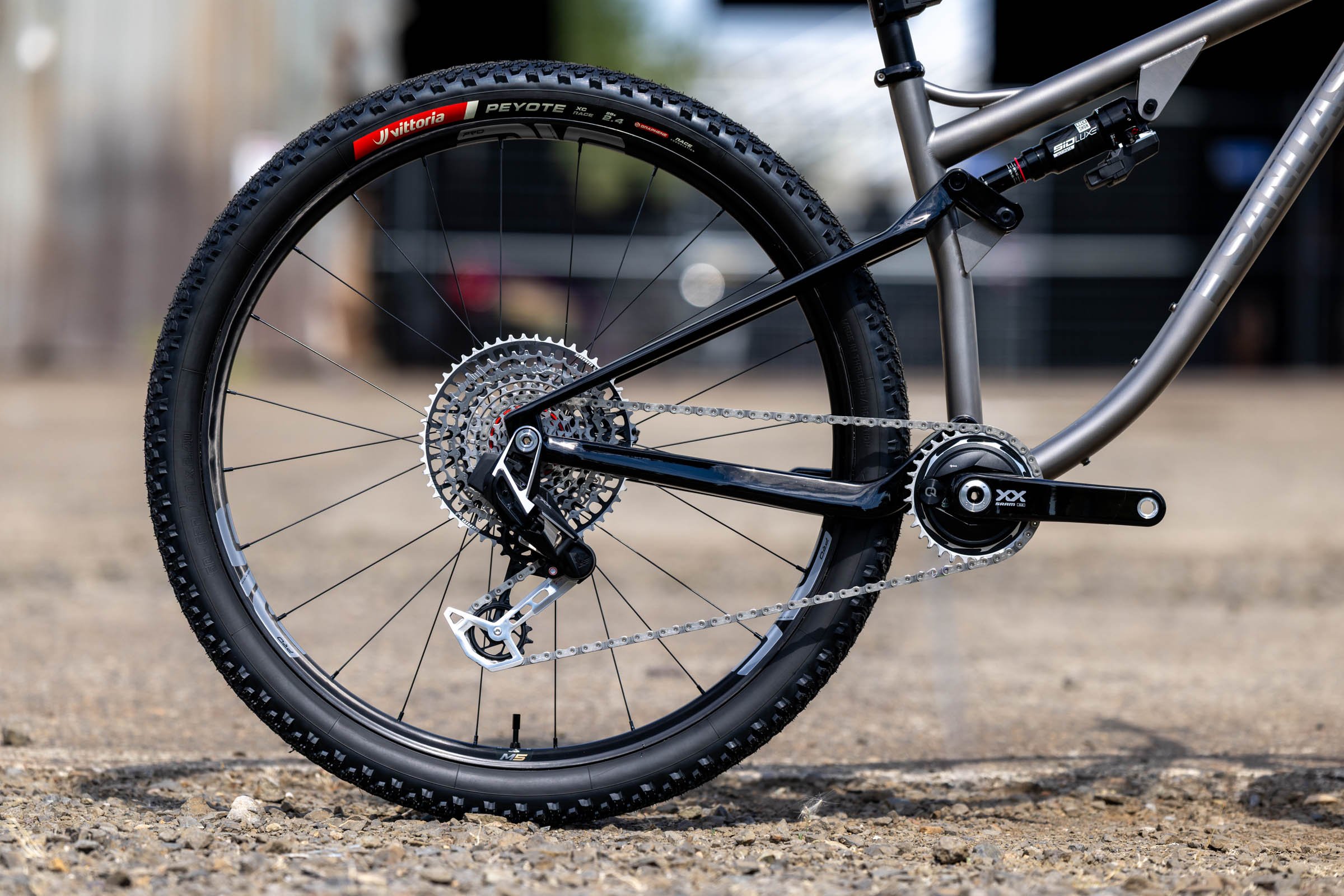

Close-up of a mountain bike's rear wheel, gear cassette, chain, and derailleur on a dirt trail.
Close-up of a modern mountain bike's frame with a water bottle holder attached, on a dirt trail.

Pistil XC Full-Suspension Ti/Carbon

The Sanitas Pistil XC is handcrafted using hand selected, size specific, cold worked 3/2.5 titanium tubing.  Each frame is designed and built one by one in our Durango, Colorado facility to provide a ride that’s specifically catered for the customers riding style and needs in mind.

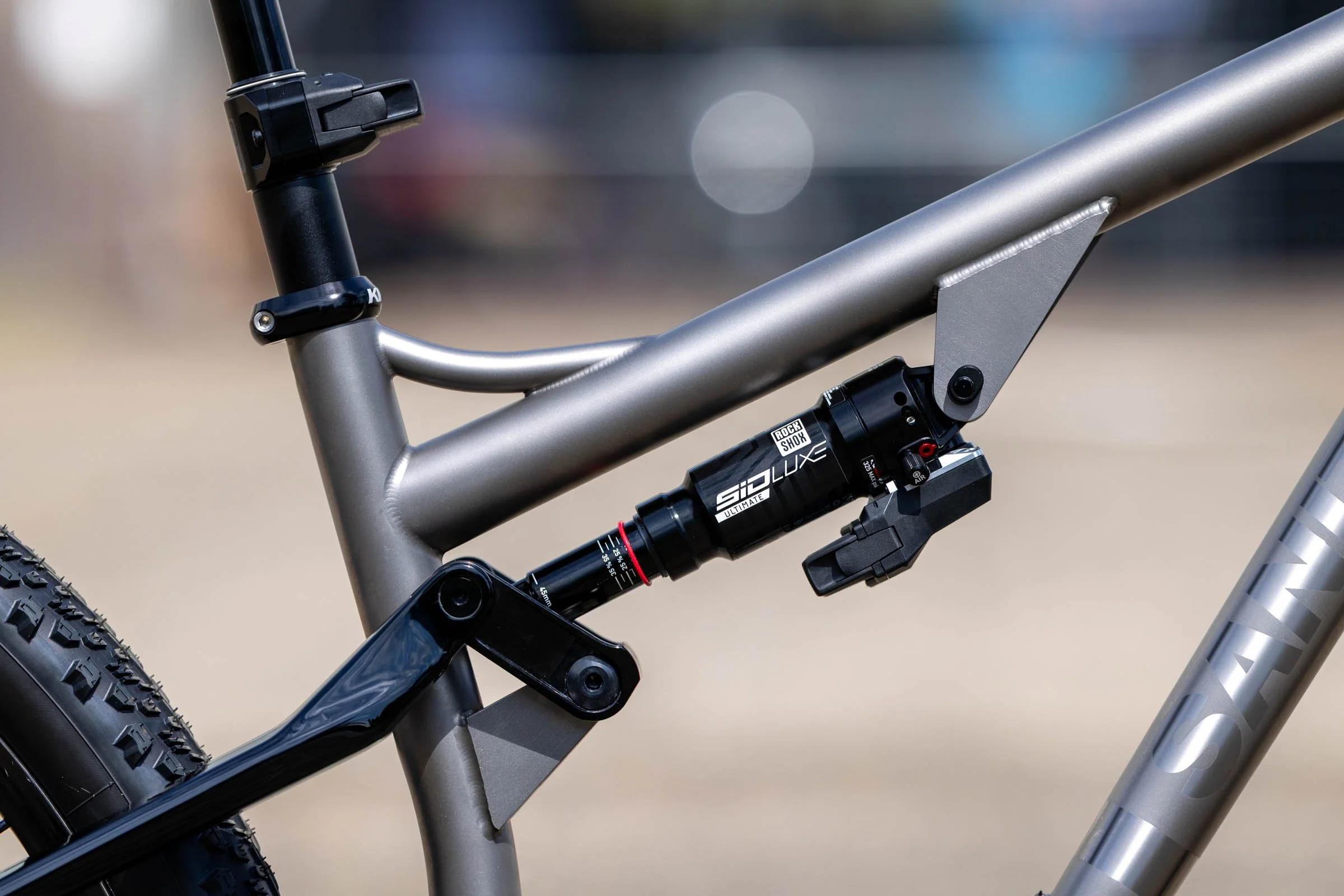

Designed around hand-picked oversized cold worked and stress relieved titanium tubing, hydroformed downtube and independent carbon rear triangle. The Pistil XC delivers fast and nimble trail handling through its progressive geometry, 120mm of dual suspension travel and high-end materials that meets the needs of today’s modern XC rider. We manufacture the titanium front triangle by hand which is meticulously matted with a custom designed independent carbon rear triangle using a dual pivot design and lightweight stock rear suspension. This translates into the bike having efficient engagement to the rear wheel when climbing all the while feeling supple, stable and secure through the descents. The Pistil XC’s design has been optimized to provide ample tire clearance of 29 x 2.4”, so you get that smooth ride over all types of terrain. With the ability to hand select the components of your choosing for your Pistil XC frame you are able to build a lightweight race machine, high performance trail ready bike or anything in-between.

Each frame is custom designed and built at no additional charge with stock geometry also available if you prefer. Please refer to our attached sizing chart.
