Vacuole Bikepacker Titanium

from $3,950

Run the wheel diameter of your choosing. 26”, 27.5" or 29”

    • Tubing: Hand Picked Size Specific Custom 3/2.5 CWSR Titanium

    • Head Badge: Sanitas Custom

    • Bottle Mount Options: Down Tube (upper and lower) and Seat Tube Locations.

    • Bag Mount Options: Top Tube

    • Rack & Fender Mounts: Optional & Avaiable Upon Request

    • Finish:  Ceramic Bead Blast with Brushed Logo or Anodization at Upcharge.

    • Production:  Hand Made One by One in Durango, Colorado

    • Custom Sizing: No Additional Charge

    • Lead time From Time of Order: 10 to 12 weeks

    • Fork: Enve Adventure or Whisky No 9 (Order Separately)

    • Headset: White Industries ( Order Separately)

    • Frame Weight: 3.0 to 3.5 lbs. depending on Sizing.

    • Build Kit Options: Contact us direction to put together your unique build kit

    • Groupsets:  SRAM, Shimano, or Rotor

    • Cockpits:  Sanitas Titanium or Ritchey

    • Wheels: Rolf Prima, Boyd, Zipp or Enve

    • Tire: Schwalbe, Continental, Maxxis or Pirelli

    • Saddles:  Selle Italia or WTB

    • Recommended Use: Bikepacking / Adventure

    • Custom Sizing: No Additional Upcharge

    • Tire Width: 29, 27.5 or 26 x 3.0”

    • Headtube: 44mm Straight Taper

    • Bottom Bracket: T47 - 73mm

    • Rear Hub Spacing: 148 x 12mm Boost

    • Cable Routing: External or Internal

    • Front Derailleur: 34.9m Clamp-On

    • Brake: Flat or Post Mount Disc.

    • Seatpost Diameter: 31.6 mm

    • Seat Collar: Sanitas Titanium or Wolf Tooth Alloy

    • Manufacturer Warranty: Lifetime

  • Each Vacuole is a custom fabrication handmade to order to your specific fitment needs.

    Click to view fit sheet

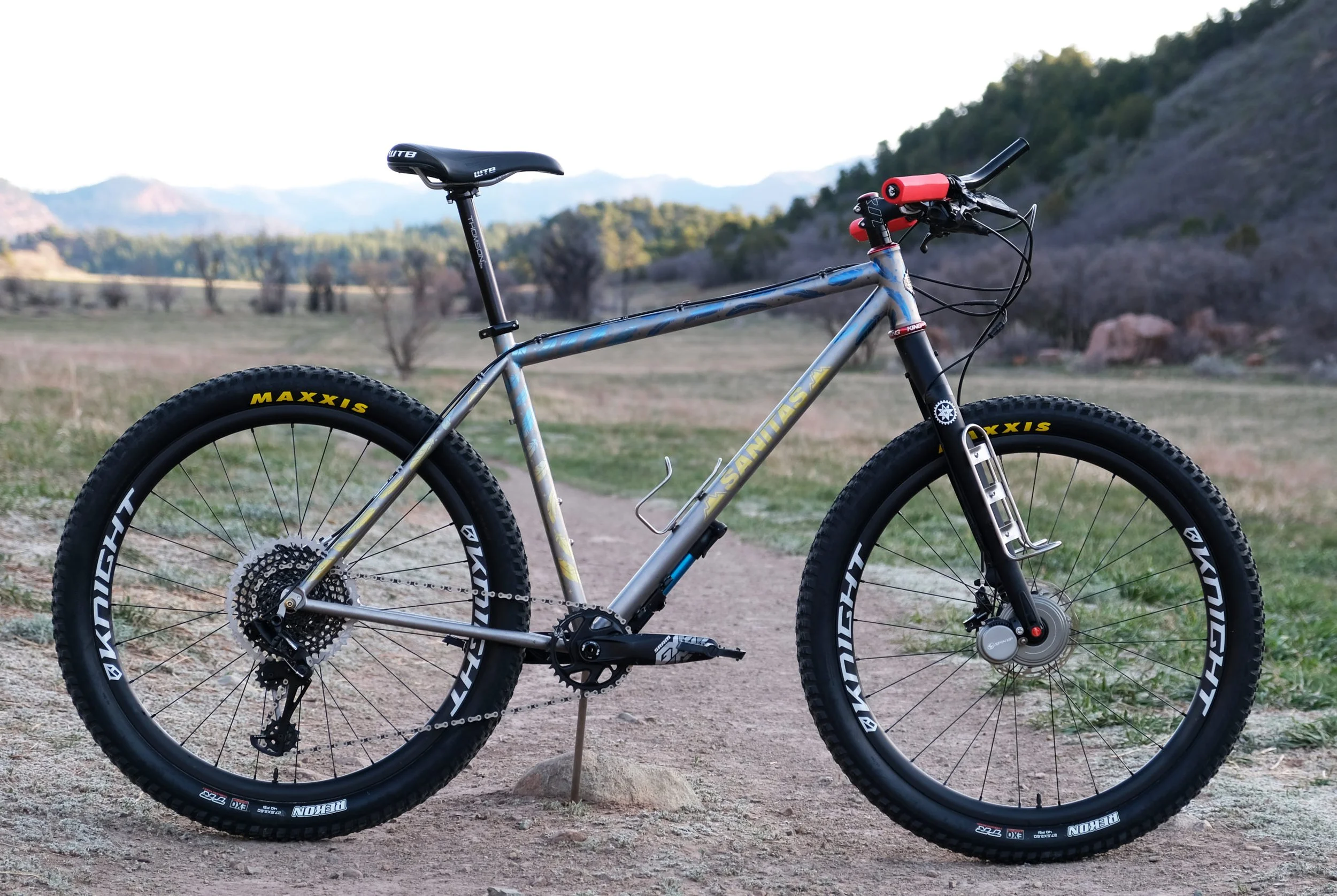

A mountain bike with a metallic frame, knobby tires, and disc brakes standing on a dirt trail in a mountain landscape
Close-up of a Sanitas mountain bike frame with a black front suspension fork, mud tires, and a bottle cage mounted on the frame, set against a blurred outdoor landscape with mountains and open fields.

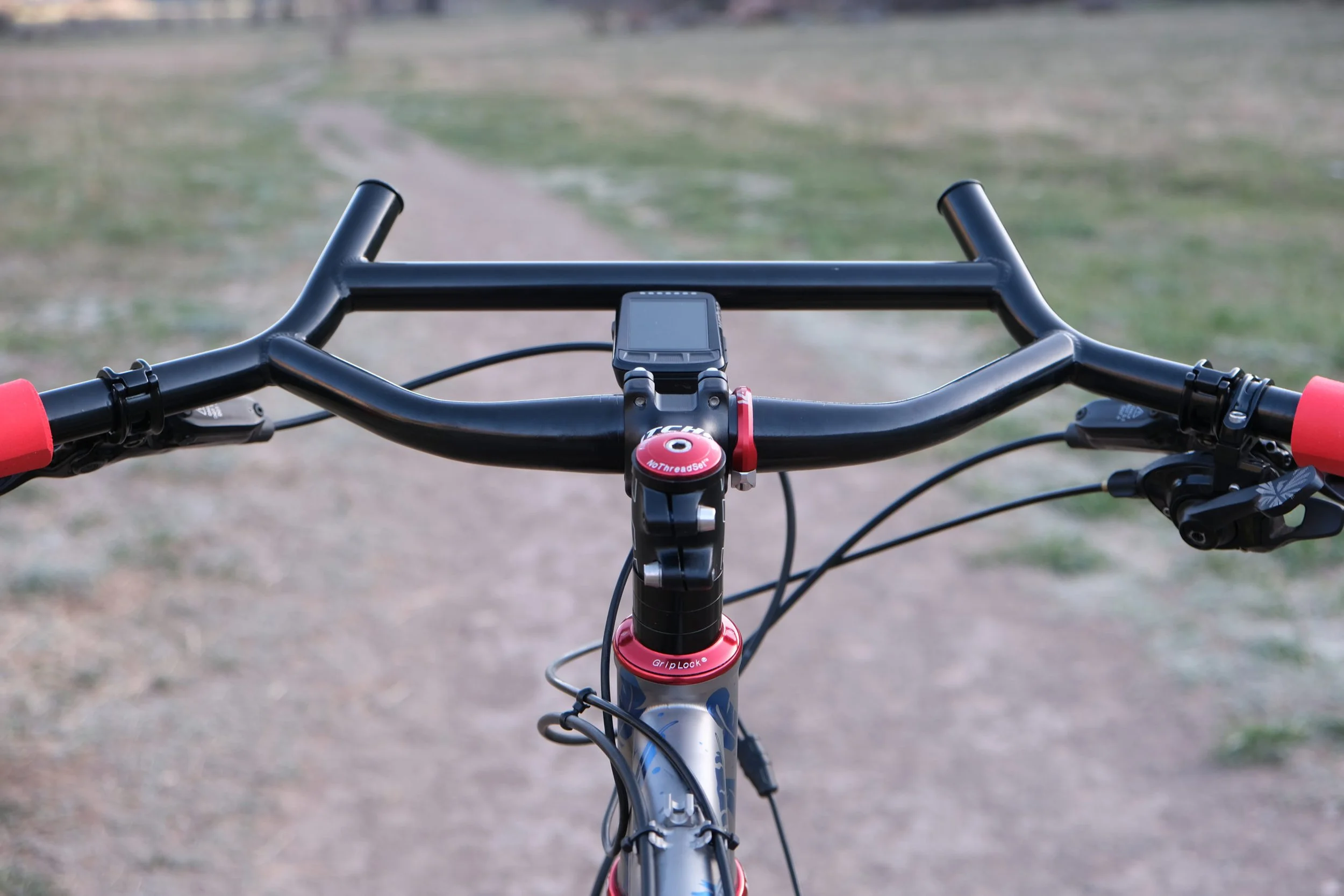

Close-up view of a mountain bike handlebar with a mounted smartphone, red handlebar grips, and wiring, on a dirt trail background.
Close-up of a mountain bike frame and tire on a trail with a blurred outdoor landscape in the background.
Close-up of a mountain bike with Maxxis tires, set on a dirt trail in a natural landscape with hills and distant trees.

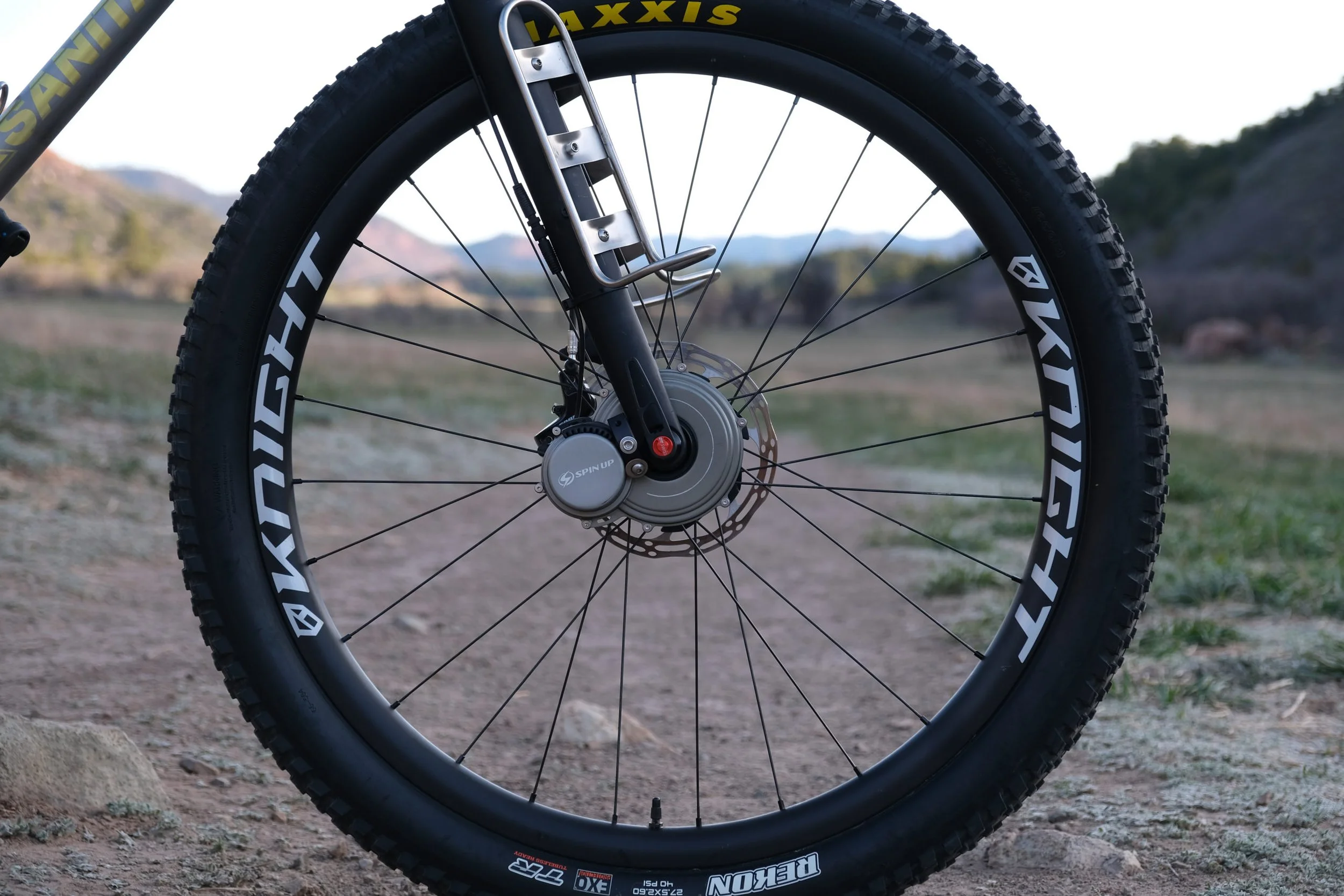

Close-up of a mountain bike wheel with Maxxis tires, disc brake, and an electric motor hub, on a dirt trail with a scenic mountainous background.

Vacuole Bikepacker Titanium

The Sanitas Vacuole Bikepacker titanium is individually handcrafted using carefully selected oversized cold work 3/2.5 titanium tubing.  Each frame is hand built to the customers specifications, one by one in our Durango, Colorado facility to provide a ride that’s designed specifically for the customers riding style and needs in mind.  Designed with signature s-bend seat stays, s-bend chainstays, and hand pick oversized cold worked and stress relieved titanium tubing the Vacuole delivers predictable handling while at the same time providing exceptional climbing and descending ability.  We design the Vacuole to provide ample tire clearance, so you get that smooth ride over all types of terrain.  Each frame is custom designed and built at no additional charge so you can choose between 29, 27.5 or 26” wheel platforms.  If you prefer stock geometry, please refer to our attached sizing chart.  In addition, we have a multitude of frame finish options available as well as anodization for an upcharge. We also can provide plenty of optional mounts for frame bags as well as fenders and rack mounts of your choosing. Inquire on how you would prefer to have your storage options built out as we can quote accordingly.
