PERFORMANCE Road

Gray Santa Cruz mountain bike with black and blue accents, tan-walled tires, and disc brakes, isolated on white background.

Style All-Road SG Titanium

from $2,750 - $5,950

Up to 700 x 38c tire clearance for a reliably smooth ride on all terrain

  • Recommended Use: Pavement, Off Pavement

    Stock Geometries available in multiple sizes

    Tire Width: Up to 700c x 38mm

    Headtube: 44mm Straight Taper

    Bottom Bracket: T47 - 68mm

    Rear Hub Spacing: 142 x 12mm (Disc)

    Cable Routing: External Rear Triangle, Internal Front Triangle

    Brake: Flat Mount Disc (Optimized for 160mm Disc Rotors)

    Seatpost Diameter: 31.6 mm

    Dropouts: UDH

    Manufacturer Warranty: Lifetime on Frame

  • Tubing: hand selected size specific straight gauge 3/2.5 CWSR titanium

    Bottle Mounts: down tube and seat tube locations

    Finish: ceramic bead blast with brushed logo (Black or White Vinyl Logos Available).

    Production: Hand made one-by-one in Durango, Colorado

    Frame Weight: 3.0 to 3.5 lbs. depending on sizing.

  • Fork: Sanitas Carbon AR

    Headset: Woof Tooth Performance

    Bottom Bracket: Available Upon Request

  • SRAM Rival AXS

    Fork: Sanitas Carbon AR

    Drivetrain: SRAM Rival AXS

    Brakes: SRAM Rival AXS Hydro Disc

    Cockpit: FSA Alloy

    Seatpost: FSA Alloy

    Wheels: BOYD Altamont Alloy Disc

    Tires: Vittoria Corsa Pro Control (700x32c)

    SHIMANO 105

    Fork: Sanitas Carbon AR

    Drivetrain: Shimano 105 Mechanical 12 spd

    Brakes: Shimano 105 Hydro Disc

    Cockpit: FSA Alloy

    Seatpost: FSA Alloy

    Wheels: BOYD Altamont Alloy Disc

    Tires: Vittoria Corsa Pro Control (700x32c)

  • Click to view geometry chart

Silver and black mountain bike with purple accents, including purple spoke hubs, positioned upright against a white background.

Style All-Road Titanium

Frame Starting at $3,750

38 mm tire clearance for a reliably smooth ride on all terrain

    • Tubing: hand selected size specific 3/2.5 CWSR titanium

    • Head Badge: Sanitas custom designed and hand fabricated by Revolution Jewelry

    • Bottle Mounts: down tube and seat tube locations (3rd mount optional)

    • Finish: ceramic bead blast with brushed logo (Anodization at upcharge & quoted separately).

    • Production: Custom design and made one-by-one in Durango, Colorado

    • Custom Sizing. No additional charge

    • Lead time From Time of Order: 10 to 12 weeks

    • Frame Weight: 2.5 to 2.8 lbs. depending on sizing.

    • SRAM

    • Shimano

    • Campy

    • Rotor

    • FSA

    • ENVE or No. 6 Composites

    • Headset: White Industries, Chris King, Cane Creek or Wolf Tooth

    • Cockpits: Ritchey, FSA or ENVE

    • Wheels: Hunt, Boyd, Zipp or ENVE

    • Tire: Schwalbe, Continental or Challenge

    • Saddles: Selle Italia, Fizik or WTB

    • Recommended Use: Pavement, Off-Pavement

    • Custom Sizing: No additional upcharge

    • Tire Width: 700c x 28 to 38mm

    • Headtube: 44mm Straight Taper

    • Bottom Bracket: BSA or T47 - 68mm

    • Rear Hub Spacing: 142 x 12mm (Disc)

    • Cable Routing: External or Internal

    • Front Derailleur: 31.8m or 34.9m Clamp-On

    • Brake: Flat Mount Disc

    • Seatpost Diameter: 27.2 or 31.6 mm

    • Seat Collar: Sanitas Titanium or Wolf Tooth Alloy

    • Manufacturer Warranty: Lifetime on Frame

  • Click to view Fit Sheet

Multi-surface & Gravel

Silver and black mountain bike with wide tires and drop handlebars, displayed against a white background.

Node Gravel SG Titanium

from $2,750 - $5,950

Up to 700 x 50 mm tire clearance for a reliably smooth ride over any terrain

    • Tubing: Hand selected, size specific straight gauge 3/2.5 CWSR titanium

    • Bottle Mounts: Down tube and seat tube locations

    • Finish: Ceramic bead blast with brushed logo (Black or White Vinyl Logos available).

    • Production: Hand made one-by-one in Durango, Colorado

    • Frame Weight: 3.0 to 3.5 lbs. depending on sizing.

    • Fork: Sanitas Carbon Gravel

    • Headset: Woof Tooth Performance

    • Bottom Bracket: Available Upon Request

  • Fork: Sanitas Carbon AR

    Headset: Woof Tooth Performance

    Bottom Bracket: Available Upon Request

    • SRAM Rival AXS

      • Fork: Sanitas Carbon Gravel

      • Drivetrain: SRAM Rival AXS

      • Brakes: SRAM Rival AXS Hydro Disc

      • Cockpit: FSA Alloy

      • Seatpost: FSA Alloy

      • Wheels: BOYD CCC Gravel Alloy

      • Tires: Vittoria Mezcal Gravel Endurance (700x44c)

    • SHIMANO GRX

      • Fork: Sanitas Carbon Gravel

      • Drivetrain: Shimano GRX Mechanical 12 spd

      • Brakes: Shimano GRX Hydro Disc

      • Cockpit: FSA Alloy

      • Seatpost: FSA Alloy

      • Wheels: BOYD BOYD CCC Gravel Alloy

      • Tires: Vittoria Mezcal Gravel Endurance (700x44c)

    • Recommended Use: Gravel or Pavement

    • Stock Geometries Available in Multiple Sizes

    • Tire Width:

      • 700c x 50mm for 1x Drivetrain

      • 700c x 45mm for 2x Drivetrain

    • Headtube: 44mm straight taper

    • Bottom Bracket: T47 - 68mm

    • Rear Hub Spacing: 142 x 12mm

    • Cable Routing: External Rear Triangle, Internal Front Triangle

    • Brake: Flat Mount Disc (Optimized for 160mm Disc Rotors)

    • Seatpost Diameter: 31.6 mm

    • Dropouts: UDH

    • Manufacturer Warranty: Lifetime

  • Click to view geometry chart

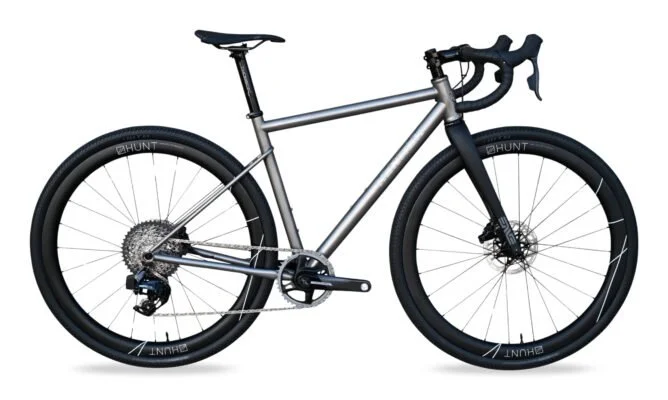

Silver and black hybrid or road bicycle with drop handlebars and knobby tires.

Node Gravel Titanium

from $3,750

50 mm tire clearance** - smooth over any terrain

    • Tubing: Hand selected, size specific 3/2.5 CWSR titanium

    • Head Badge: Sanitas custom designed and hand fabricated

    • Bottle Mounts: Down tube and seat tube locations (3rd bottle mount option)

    • Finish: Ceramic bead blast with brushed logo (Anodization at upcharge & quoted separately).

    • Production: Custom design and made one-by-one in Durango, Colorado

    • Custom Sizing: No additional charge

    • Lead time from time of order: 10 - 12 weeks

    • Frame Weight: 3.0 to 3.5 lbs. depending on sizing.

    • SRAM

    • Shimano

    • ENVE or No. 6 Composites

    • Headset: White Industries, Chris King, Cane Creek or Wolf Tooth

    • Cockpits: Ritchey, ENVE, or FSA

    • Bottom Bracket: Wheels Mfg, Cane Creek or Chris King

    • Wheels: Hunt, Boyd, Zipp or ENVE

    • Tire: Schwalbe, Maxxis or WTB

    • Saddles: Selle Italia, Fizik or WTB

    • Recommended Use: Gravel, CycloCross or Touring

    • Custom sizing: No Additional Upcharge

    • Tire Width: **

      • 700c x 50mm for 1x Drivetrain

      • 700c x 44mm for 2x Drivetrain

    • Headtube: 44mm straight taper

    • Bottom Bracket: T47 english thread

    • Rear Hub Spacing: 142 x 12mm

    • Cable Routing: External or Internal

    • Front Derailleur: 31.8m or 34.9m clamp-on

    • Brake: flat mount disc

    • Seatpost Diameter: 27.2 or 31.6 mm

    • Seat Collar: Sanitas titanium or Wolf Tooth Alloy

    • Manufacturer Warranty: Lifetime

  • Each Node is a custom fit fabrication handmade to order to your specific fitment needs.

    Click to view fit sheet

Mountain

A full-suspension mountain bike with a metallic gray frame, black and gold components, and knobby tires, set against a white background.

    • Recommended Use: Mountain Single Track

    • Custom or Stock Geometry

    • Tire Width: 29 x 2.6”

    • Headtube: 44mm Straight Taper

    • Bottom Bracket: T47 English Thread

    • Rear Hub Spacing: 148 x 12mm Boost

    • Cable Routing: External or Internal (Front Triangle)

    • Optimized for 1x Drivetrain Only

    • Brake: Post Mount Disc

    • Seatpost Diameter: 31.6 mm (internal dropper routing)

    • Seat Collar: Sanitas Titanium or Wolf Tooth Alloy

    • Manufacturer Warranty: Lifetime

    • Tubing: Hand Picked Size Specific 3/2.5 CWSR Titanium

    • Head Badge: Sanitas Custom designed & Hand-Fabricated by Revolution Jewelry

    • Bottle Mounts: Seat Tube Locations – Upper & Lower

    • Finish: Ceramic Bead Blast with Brushed Logo (Anodization at upcharge & quoted separately).

    • Production: Custom design & made one-by-one in Durango, Colorado

    • Custom Sizing: No Additional Charge

    • Lead time From Time of Order: 12- 14 weeks

    • Frame Weight: 4.5 to 5lbs. Depending on Sizing.

  • FOX, Rock Shox, MRP or Cane Creek

    Groupsets: SRAM, Shimano or TRP Components:

    • Headset: Chris King, Wolf Tooth,  White Industries or Cane Creek

    • Cockpits: Ritchey, ENVE or FSA

    • Wheels: ENVE, Boyd, Zipp or Hunt

    • Tire: Maxxis, WTB, Vittoria or Schwalbe

    • Saddles: Selle Italia, Fizik or WTB

  • Each Pistil is a custom fit fabrication, but stock geometry is available.

    Click to view fit sheet

    Click to view geometry chart

Pistil Soft-tail Mountain Titanium

from $5,850

70mm of Rear Travel to Take the Edge Off!

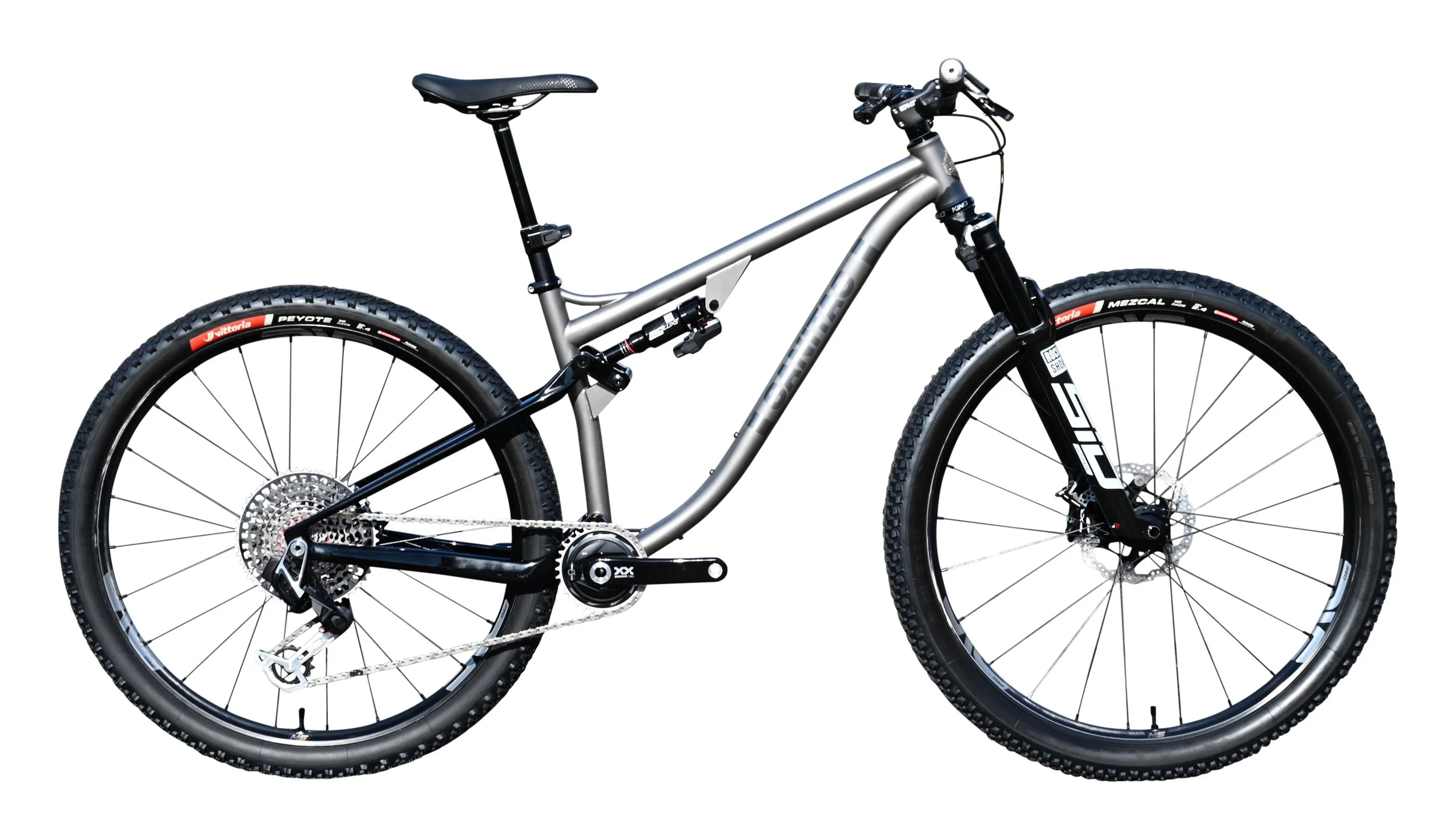

Gray and blue mountain bike with full suspension and thick tires.

    • Recommended Use: Mountain Single Track, All Mountain Trails, Bike Park

    • Custom Geometry.

    • Tire Width: 29 x 2.6”

    • Headtube: 44mm Straight Taper

    • Suspension: Optimized around 150mm Travel

    • Bottom Bracket: T47 – 73mm

    • Rear Hub Spacing: 148 x 12mm Boost (UDH Compatible)

    • Cable Routing: External (Rear Triangle) or Internal (Ft Triangle)

    • Front Derailleur: N/A - Optimized for 1x Drivetrains

    • Brake: Post Mount Disc

    • Seatpost Diameter: 31.6 mm (internal dropper routing)

    • Seat Collar: Sanitas Titanium, or Ogle Component Design or Wolf Tooth Alloy

    • Manufacturer Warranty: Lifetime

    • Tubing: Hand selected size specific 3/2.5 butted CWSR titanium

    • Head Badge: Sanitas custom designed and hand fabricated by Revolution Jewelry

    • Bottle Mounts: Downtube only + additional locations available

    • Finish:

      • Front Triangle: Ceramic bead blast with brushed logo

      • Rear Triangle: Raw Aluminum

      • Note: Anodization and/or Paint available at upcharge & quoted separately

    • Production:  Custom design and made one by one in Durango, Colorado

    • Custom Sizing: No additional charge

    • Lead time From Time of Order:  12 to 14 weeks

    • Frame Weight: 4 to 5 lbs. depending on sizing (without shock).

    • FOX, Rock Shox, MRP or Cane Creek

    • SRAM, Shimano or TRP

    • Headset: Chris King, Wolf Tooth, White Industries or Cane Creek

    • Cockpit: ENVE, Ritchey or FSA

    • Wheels: ENVE, Boyd, Zipp or Hunt

    • Tires: Maxxis, WTB, Vittoria or Schwalbe

    • Saddle: Selle Italia, FIzik or WTB

  • Each Pistil Trail is a custom-fit fabrication. Please get in touch with us for a custom geometry fit sheet.

    Click to view fit sheet

Pistil Trail Full Suspension Titanium/Aluminum

from $4,850

150mm of Travel for Versatility in a Wide Range of Riding Conditions.

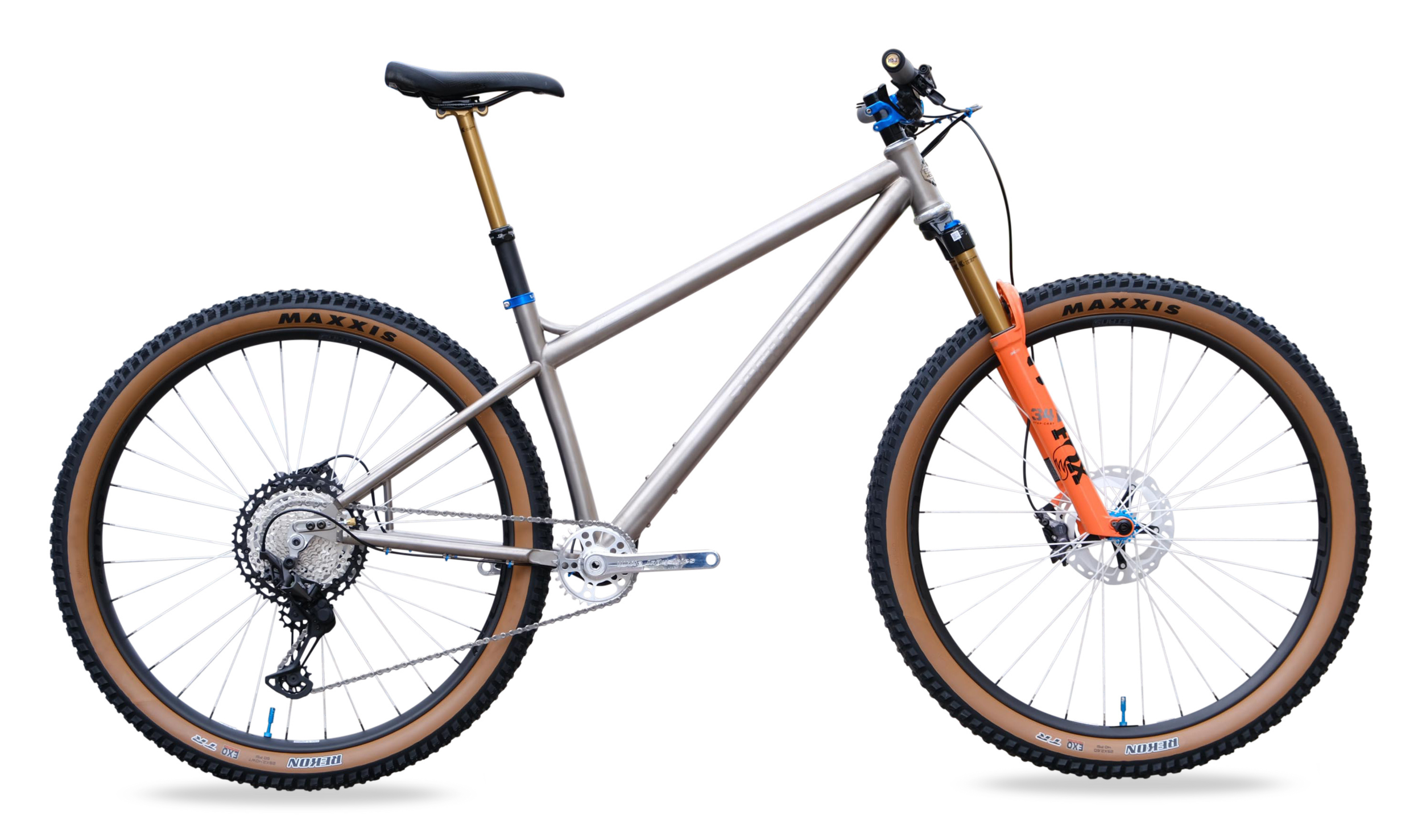

Silver mountain bike with front suspension and knobby tires on a white background.

Tap Root Titanium Hardtail

Starting at $2,750 – $5,950

2.6" tire clearance for a reliably smooth ride on all terrain

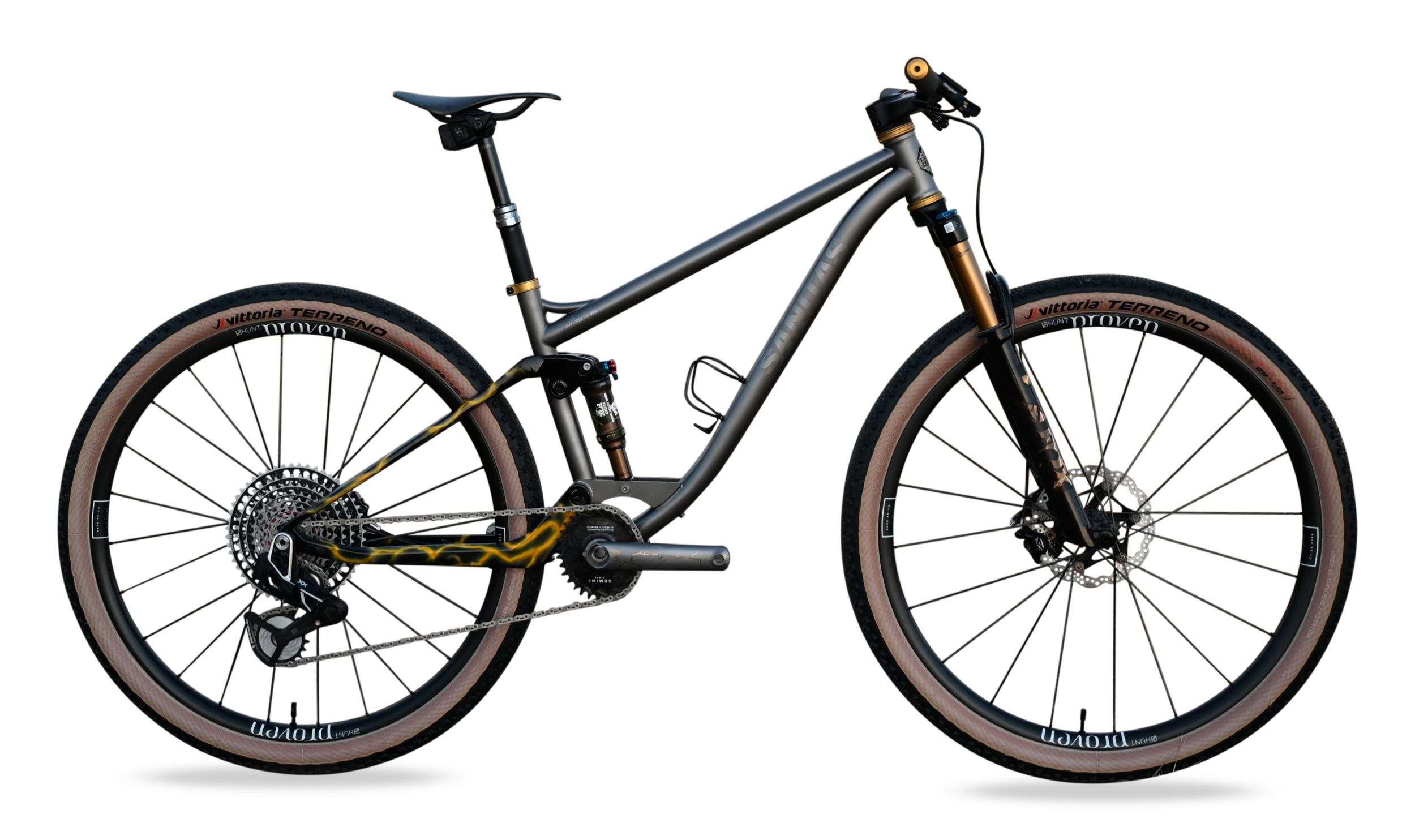

A sleek gray full-suspension mountain bike with tan tires and black and gold accents.

    • Recommended Use: Mountain Single Track

    • Custom or Stock Geometry.

    • Tire Width: 29 x 2.4”

    • Headtube: 44mm Straight Taper

    • Suspension: Optimized around 120mm Travel

    • Bottom Bracket: T47 – 73mm

    • Rear Hub Spacing: 148 x 12mm Boost (UDH Compatible)

    • Cable Routing: External or Internal (Ft Triangle)

    • Front Derailleur: N/A - Optimized for 1x Drivetrains

    • Brake: Post Mount Disc

    • Seatpost Diameter: 31.6 mm (internal dropper routing)

    • Seat Collar: Sanitas Titanium or Wolf Tooth Alloy

    • Manufacturer Warranty: Lifetime

    • Tubing: Hand selected size specific 3/2.5 butted CWSR titanium

    • Head Badge: Sanitas custom designed and hand fabricated by Revolution Jewelry

    • Bottle Mounts: Seat tube locations - Upper & Lower

    • Finish:

      • Front Triangle: Ceramic bead blast with brushed logo

      • Rear Triangle: Clear Coated Nude Carbon

      • Note: Anodization and/or Paint available at upcharge & quoted separately

    • Production:  Custom design and made one by one in Durango, Colorado

    • Custom Sizing: No additional charge

    • Lead time From Time of Order:  12 to 14 weeks

    • Frame Weight: 3.5 to 4.5 lbs. depending on sizing.

    • FOX, Rock Shox, MRP or Cane Creek

    • SRAM, Shimano or TRP

    • Headset: Chris King, Wolf Tooth, White Industries or Cane Creek

    • Cockpit: ENVE, Ritchey or FSA

    • Wheels: ENVE, Boyd, Zipp or Hunt

    • Tires: Maxxis, WTB, Vittoria or Schwalbe

    • Saddle: Selle Italia, FIzik or WTB

  • Each Pistil is a custom fit fabrication, but stock geometry is available.

    Click to view fit sheet

    Click to view geometry chart

Pistil XC Full Suspension Titanium/Carbon

from $5,500

120mm of Travel for a True XC Feel!

Silver mountain bike with tan tires, orange front fork, and black saddle.

    • Recommended Use: Mountain Single Track

    • Custom or Stock Geometry.

    • Tire Width: 29 x 2.6”

    • Headtube: 44mm Straight Taper

    • Bottom Bracket: T47 English Thread

    • Rear Hub Spacing: 148 x 12mm Boost

    • Cable Routing: External or Internal

    • Front Derailleur: 34.9mm Clamp-On

    • Brake: Post or Flat Mount Disc

    • Seatpost Diameter: 31.6 mm (internal dropper routing)

    • Seat Collar: Sanitas Titanium or Wolf Tooth Alloy

    • Manufacturer Warranty: Lifetime

    • Tubing: Hand Picked Size Specific 3/2.5 CWSR Titanium

    • Head Badge: Sanitas Custom designed & Hand-Fabricated by Revolution Jewelry

    • Bottle Mounts: Down Tube and Seat Tube Locations (3rd Mount Optional)

    • Finish: Ceramic Bead Blast with Brushed Logo (Anodization at upcharge & quoted separately).

    • Production: Custom design & made one-by-one in Durango, Colorado

    • Custom Sizing: No Additional Charge

    • Lead time From Time of Order: 10 to 12 weeks

    • Frame Weight: 3.0 to 3.5 lbs. depending on Sizing.

    • FOX, Rock Shox, MRP or Cane Creek

    • SRAM or Shimano

    • Headset: White Industries, Chris King, Cane Creek or Wolf Tooth

    • Cockpits: Ritchey, ENVE or FSA

    • Wheels: ENVE, Boyd, Zipp or Hunt

    • Tire: Schwalbe, Maxxis or WTB

    • Saddles: Selle Italia, Fizik or WTB

  • Each Root is a custom fit fabrication, but stock geometry is available and can be viewed by clicking the button below.

    Click to view fit sheet

    Click to view geometry sheet

Root Titanium Hardtail

from $4,850

2.6" tire clearance for a reliably smooth ride on all terrain

    • Recommended Use: Mountain Single Track, XC Racing, Bikepacking

    • Stock Geometry available in Six Sizes

    • Tire Width: 29 x 2.6”

    • Headtube: 44mm Straight Taper

    • Bottom Bracket: T47 English Thread

    • Rear Hub Spacing: 148 x 12mm Boost

    • Cable Routing: External, Internal Dropper Port

    • Brake: Post Mount Disc, optimized for 180mm Disc Rotor

    • Seatpost Diameter: 31.6 mm (internal dropper routing)

    • Dropouts: Sliding with standard derailleur inserts

    • Single Speed Specific or Direct Mount derailleur inserts offered upon request

    • Manufacturer Warranty: Lifetime

    • Tubing: Hand Picked Size Specific straight gauge 3/2.5 CWSR Titanium

    • Head Badge: Sanitas Custom designed & Hand-Fabricated by Revolution Jewelry

    • Bottle Mounts: Down Tube and Seat Tube Locations

    • Finish: Ceramic Bead Blast with Brushed Logo (Black or White Vinyl Logos available).

    • Production: Hand made one-by-one in Durango, Colorado

    • Frame Weight: 3.0 to 3.5 lbs. depending on Sizing.

    • SRAM GX

      • FORK: RockShox Pike Select RL- 120mm

      • DRIVETRAIN: SRAM GX Eagle Mechanical – 12spd

      • BRAKES: SRAM G2 R

      • COCKPIT: RaceFace Atlas Alloy

      • DROPPER POST: RaceFace Aeffect R

      • WHEELS: HUNT Trail Wide - 29

      • TIRES: WTB Ranger 29" x 2.4"

    • SHIMANO SLX

      • FORK: RockShox Pike Select RL- 120mm

      • DRIVETRAIN: SHIMANO SLX Mechanical – 12spd

      • BRAKES: SHIMANO SLX

      • COCKPIT: RaceFace Atlas Alloy

      • DROPPER POST: RaceFace Aeffect R

      • WHEELS: HUNT Trail Wide - 29

      • TIRES: WTB Ranger 29" x 2.4"

  • Stock geometry is available in six sizes and can be viewed by clicking the button below.

    Click to view geometry sheet

Adventure

A mountain bike with a metallic frame, large Maxxis tires, and a front suspension fork.

Vacuole Titanium BikePacker

from $3,950

Run the wheel diameter of your choosing. 26”, 27.5" or 29”

    • Tubing: Hand Picked Size Specific Custom 3/2.5 CWSR Titanium

    • Head Badge: Sanitas Custom

    • Bottle Mount Options: Down Tube (upper and lower) and Seat Tube Locations.

    • Bag Mount Options: Top Tube

    • Rack & Fender Mounts: Optional & Avaiable Upon Request

    • Finish:  Ceramic Bead Blast with Brushed Logo or Anodization at Upcharge.

    • Production:  Hand Made One by One in Durango, Colorado

    • Custom Sizing: No Additional Charge

    • Lead time From Time of Order: 10 to 12 weeks

    • Fork: Enve Adventure or Whisky No 9 (Order Separately)

    • Headset: White Industries ( Order Separately)

    • Frame Weight: 3.0 to 3.5 lbs. depending on Sizing.

    • Build Kit Options: Contact us direction to put together your unique build kit

    • Groupsets:  SRAM, Shimano, or Rotor

    • Cockpits:  Sanitas Titanium or Ritchey

    • Wheels: Rolf Prima, Boyd, Zipp or Enve

    • Tire: Schwalbe, Continental, Maxxis or Pirelli

    • Saddles:  Selle Italia or WTB

    • Recommended Use: Bikepacking / Adventure

    • Custom Sizing: No Additional Upcharge

    • Tire Width: 29, 27.5 or 26 x 3.0”

    • Headtube: 44mm Straight Taper

    • Bottom Bracket: T47 - 73mm

    • Rear Hub Spacing: 148 x 12mm Boost

    • Cable Routing: External or Internal

    • Front Derailleur: 34.9m Clamp-On

    • Brake: Flat or Post Mount Disc.

    • Seatpost Diameter: 31.6 mm

    • Seat Collar: Sanitas Titanium or Wolf Tooth Alloy

    • Manufacturer Warranty: Lifetime

  • Each Vacuole is a custom fabrication handmade to order to your specific fitment needs.

    Click to view fit sheet
