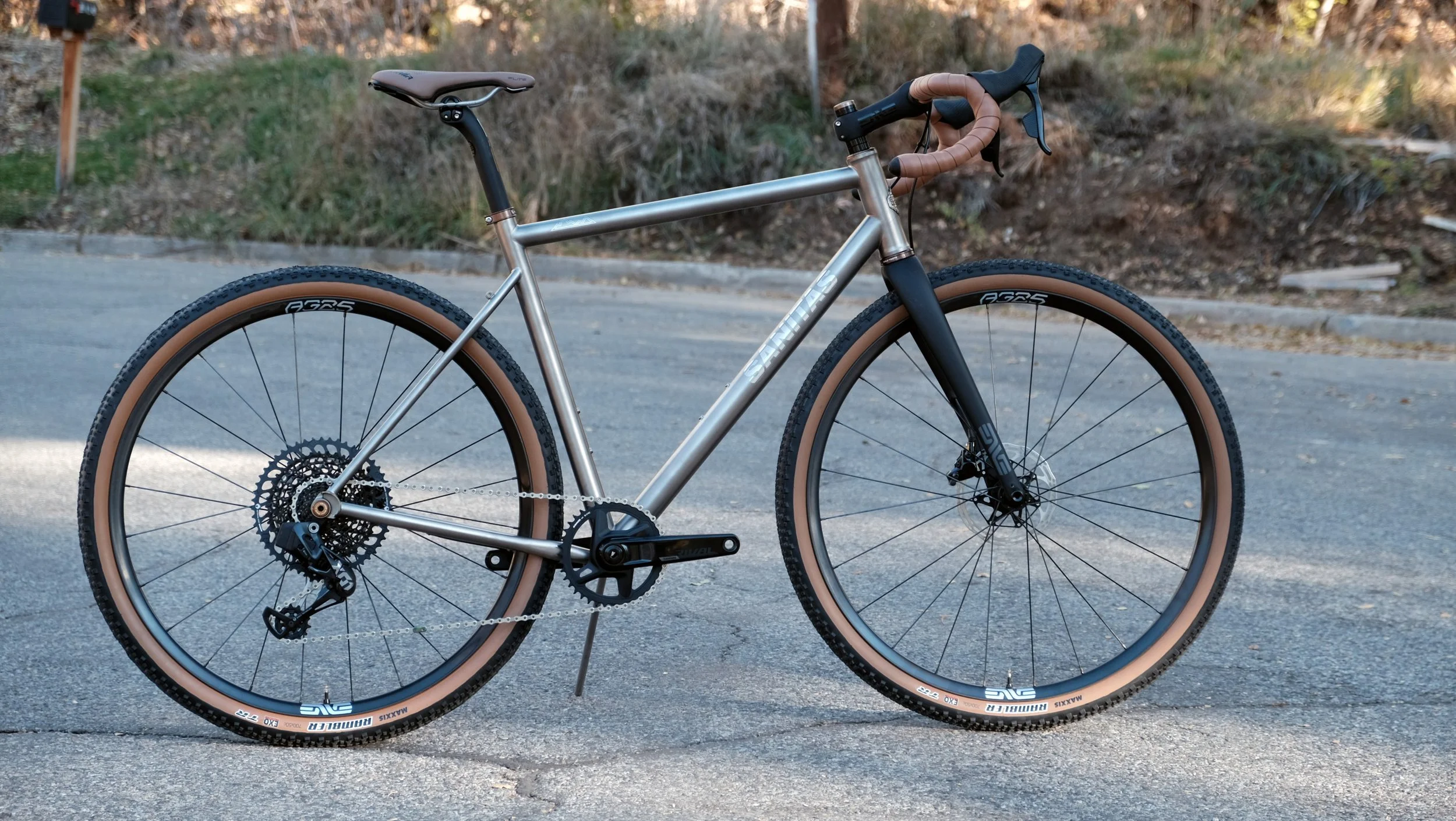

Node SG Gravel Titanium
The Sanitas Cycles Node Gravel SG takes everything from our flagship Node gravel bike that is delivered in a package that is perfect for your gravel riding style! The Node Gravel SG is the titanium gravel bike you’ve always dreamt about, handmade in the USA but doesn’t break the bank in the process! Equally at home on the back-wood gravel roads, the start line of your next gravel event or an epic adventure of your choosing.
We designed the Node Gravel SG to be extremely versatile and with modern geometry in mind. With UDH dropout’s standard, this provides the ability to run the drivetrain of your choice of traditional or direct mount derailleur, the Node Gravel SG can do it all. Our stock geometry & size-specific T3A/2.5V straight gauge titanium tube sets delivers a lightweight but exceptionally strong frameset that is built to be nimble, comfortable, durable, and extremely fun to ride.

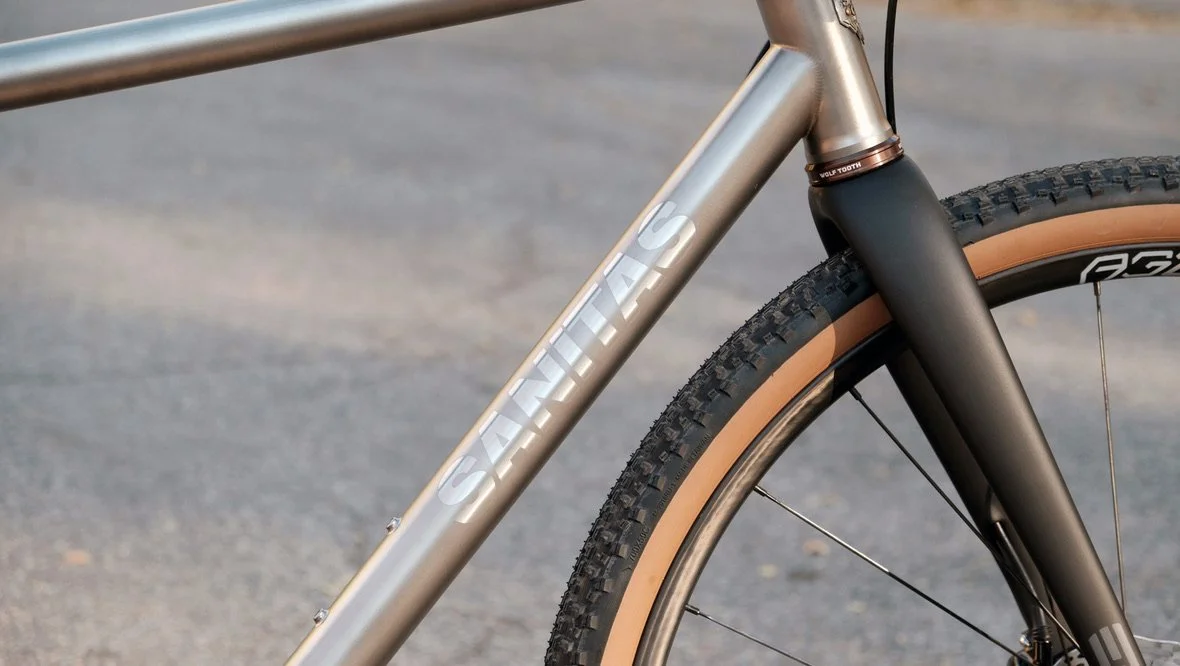

Frame is configured with internal brake and shift cables routed through the downtube on the front half of the frame and external on the underside chain stays for a clean overall appearance. Offered with multiple stock geometries to choose from. Standard satin finish with the options to choose from either brushed logos or Black or White Vinyl decals. The All-Road SG can be purchased as a frame or frameset to be built using the components of your choosing. Also offered as a complete bike with either Shimano GRX 12spd mechanical or SRAM Rival AXS drivetrains.
Each frame is meticulously built by hand in beautiful Durango Colorado!
Node Gravel SG Titanium
from $2,950 - $5,950
Up to 700 x 50 mm tire clearance for a reliably smooth ride over any terrain
-
Tubing: Hand selected, size specific straight gauge 3/2.5 CWSR titanium
Bottle Mounts: Down tube and seat tube locations
Finish: Ceramic bead blast with brushed logo (Black or White Vinyl Logos available).
Production: Hand made one-by-one in Durango, Colorado
Frame Weight: 3.0 to 3.5 lbs. depending on sizing.
-
Fork: Sanitas Carbon Gravel
Headset: Woof Tooth Performance
Bottom Bracket: Available Upon Request
-
Fork: Sanitas Carbon AR
Headset: Woof Tooth Performance
Bottom Bracket: Available Upon Request
-
SRAM Rival AXS
Fork: Sanitas Carbon Gravel
Drivetrain: SRAM Rival AXS
Brakes: SRAM Rival AXS Hydro Disc
Cockpit: FSA Alloy
Seatpost: FSA Alloy
Wheels: BOYD CCC Gravel Alloy
Tires: Vittoria Mezcal Gravel Endurance (700x44c)
SHIMANO GRX
Fork: Sanitas Carbon Gravel
Drivetrain: Shimano GRX Mechanical 12 spd
Brakes: Shimano GRX Hydro Disc
Cockpit: FSA Alloy
Seatpost: FSA Alloy
Wheels: BOYD BOYD CCC Gravel Alloy
Tires: Vittoria Mezcal Gravel Endurance (700x44c)
-
Recommended Use: Gravel or Pavement
Stock Geometries Available in Multiple Sizes
Tire Width:
700c x 50mm for 1x Drivetrain
700c x 45mm for 2x Drivetrain

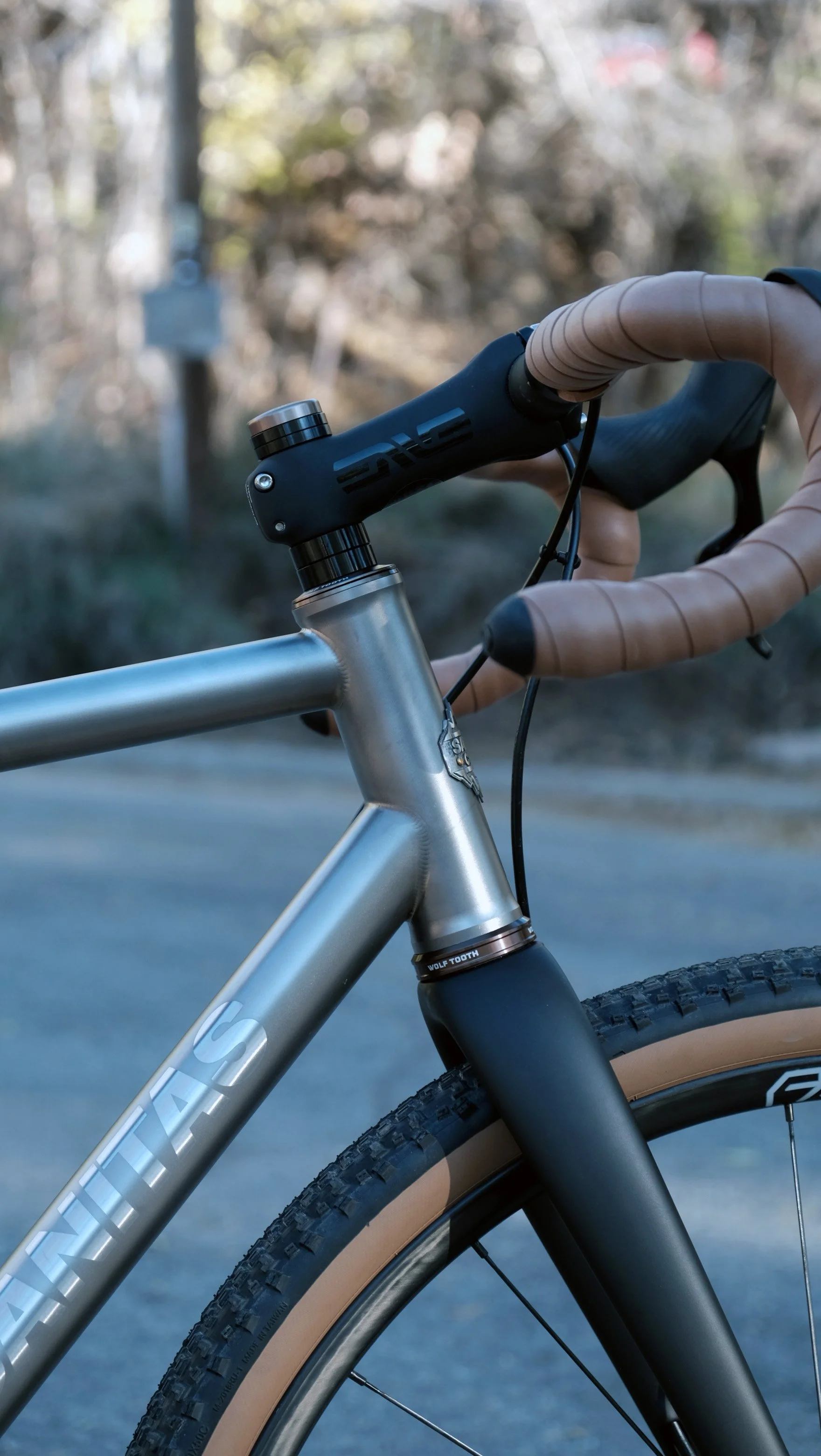

Headtube: 44mm straight taper

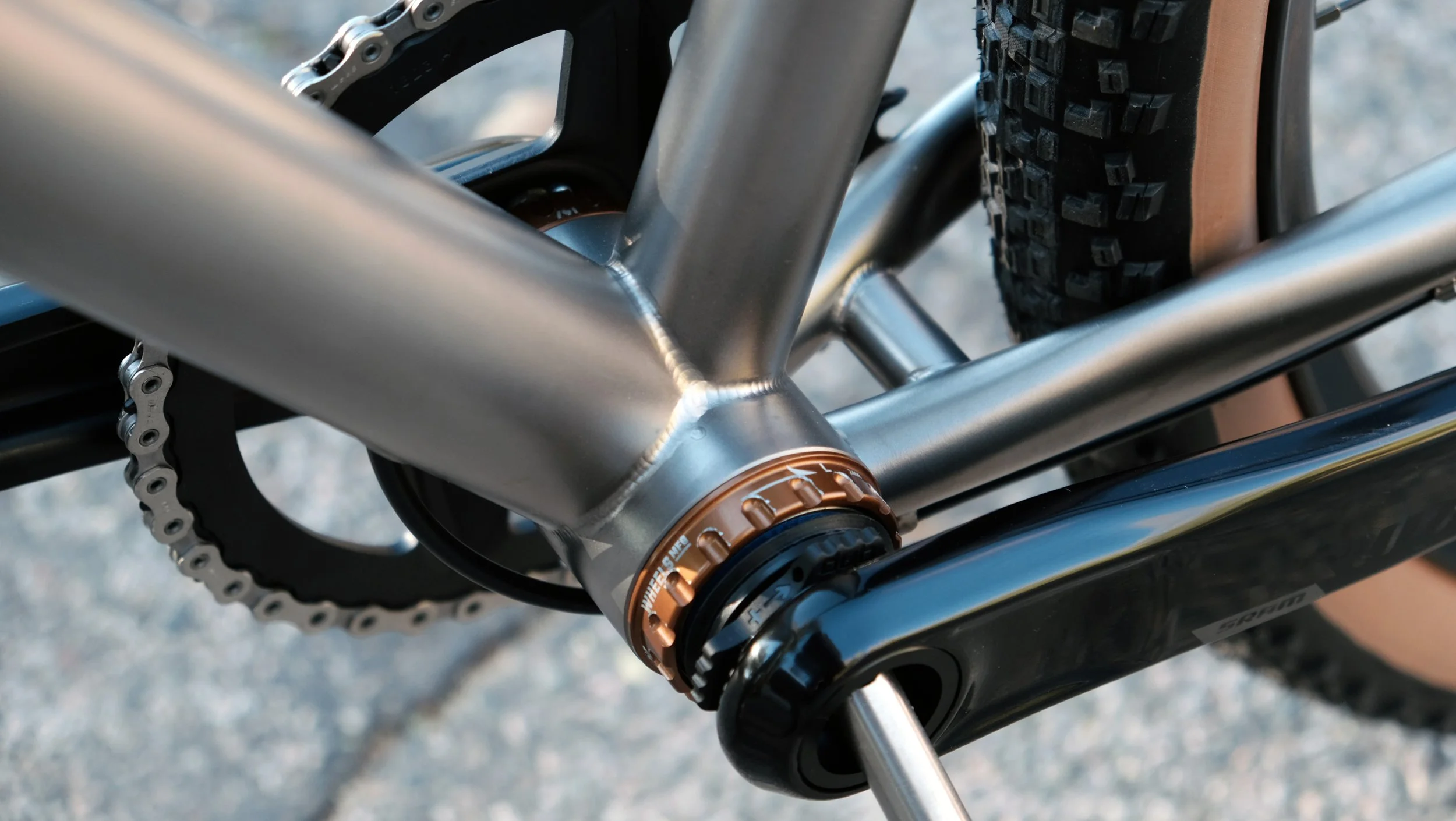

Bottom Bracket: T47 - 68mm
Rear Hub Spacing: 142 x 12mm
Cable Routing: External Rear Triangle, Internal Front Triangle
Brake: Flat Mount Disc (Optimized for 160mm Disc Rotors)

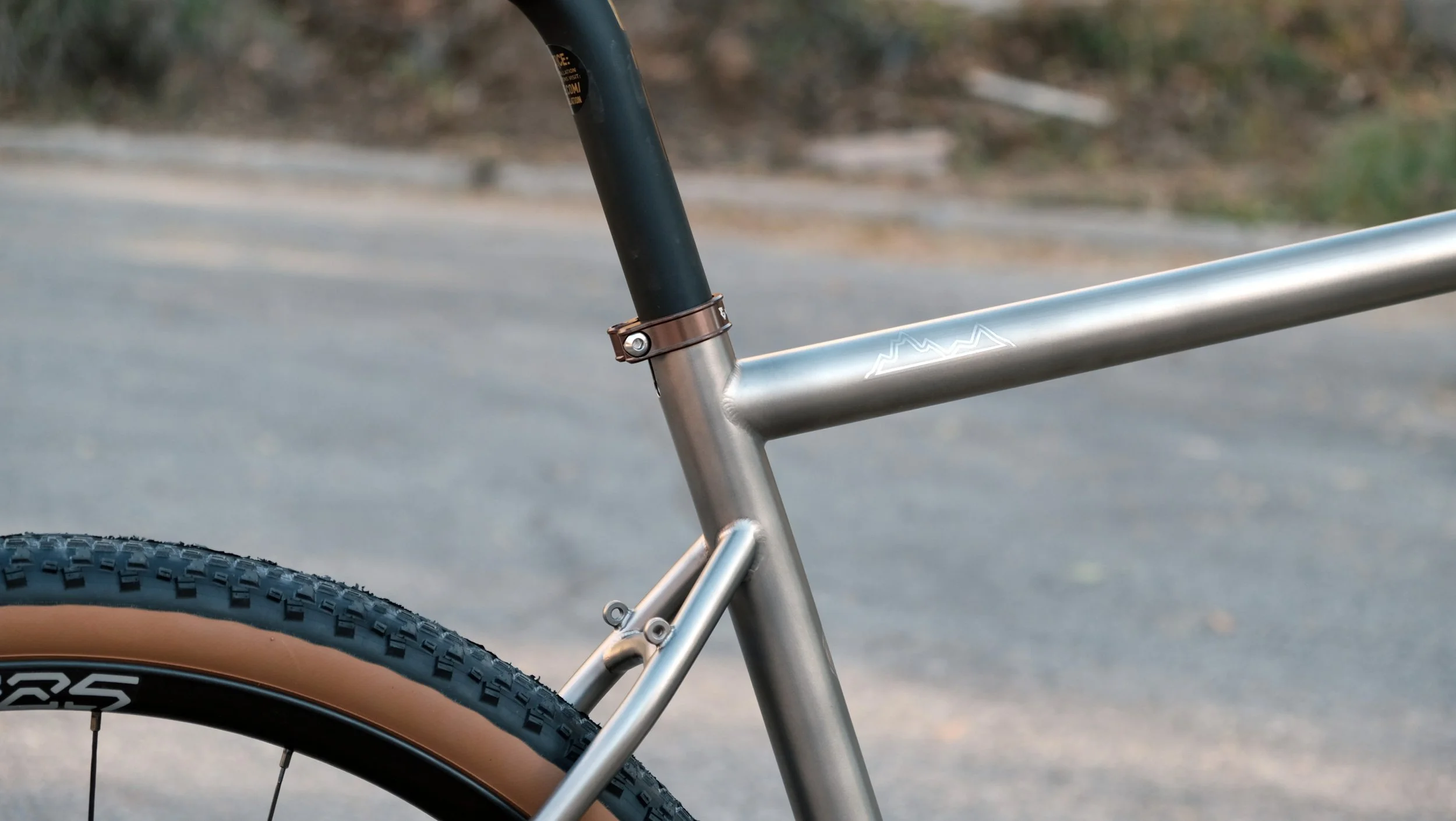

Seatpost Diameter: 31.6 mm

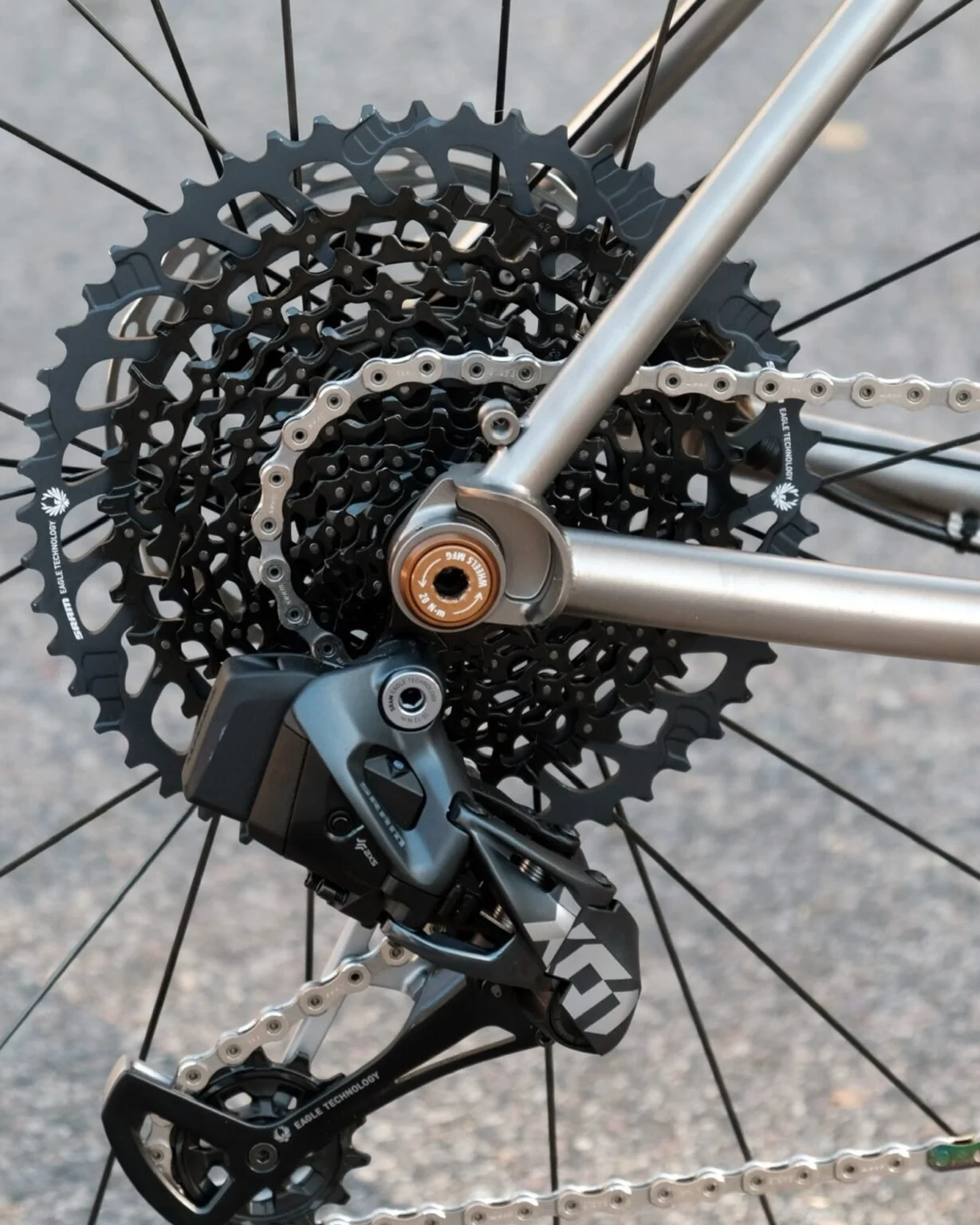

Dropouts: UDH
Manufacturer Warranty: Lifetime
-
